On-Vehicle Repair

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE AIR CLEANER ASSEMBLY
  2. REMOVE AIR CLEANER ASSEMBLY BRACKET

    Remove the 2 bolts and bracket and shift control cable clamp.

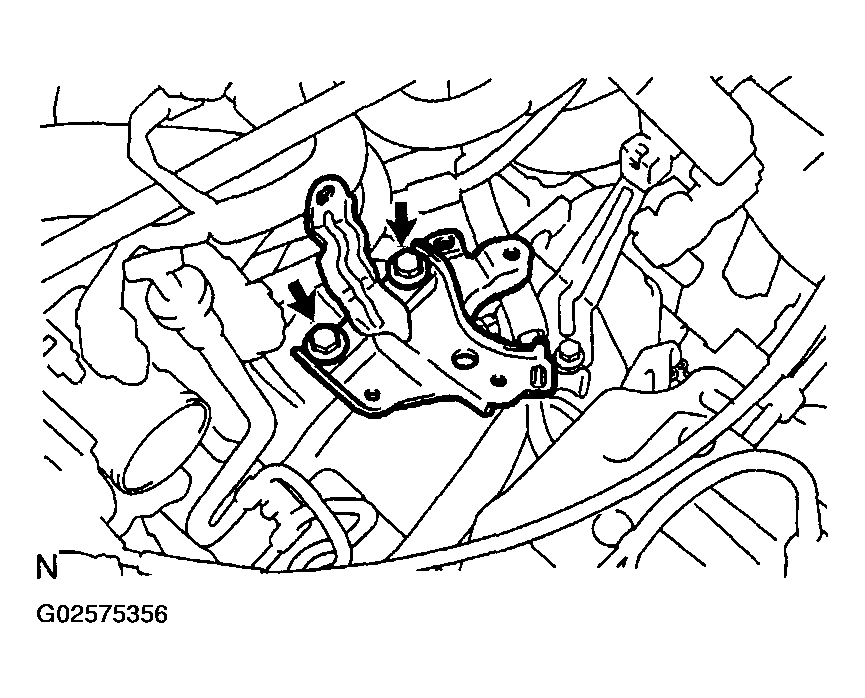

    Fig 1: Removing Air Cleaner Assembly Bracket
    G02575356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE DIRECT CLUTCH SPEED SENSOR
    1. Disconnect the connector.
    2. Remove the bolt and direct clutch speed sensor.
    3. Remove the O-ring from the direct clutch speed sensor.
  4. INSTALL DIRECT CLUTCH SPEED SENSOR
    1. Coat a new O-ring with ATF and install it to the direct clutch speed sensor.
    2. Install the direct clutch speed sensor with the bolt.

      Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

    3. Connect the connector.

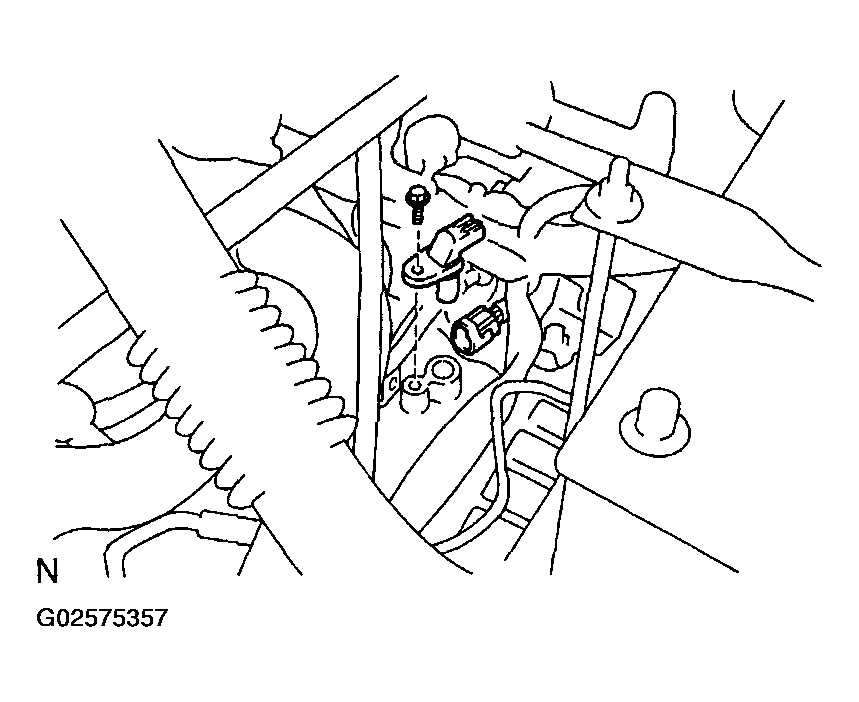

    Fig 2: Installing Direct Clutch Speed Sensor
    G02575357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL AIR CLEANER BRACKET

    Install the bracket with the 2 bolts.

    Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)

  6. INSTALL AIR CLEANER ASSEMBLY AND SHIFT CONTROL CABLE CLAMP

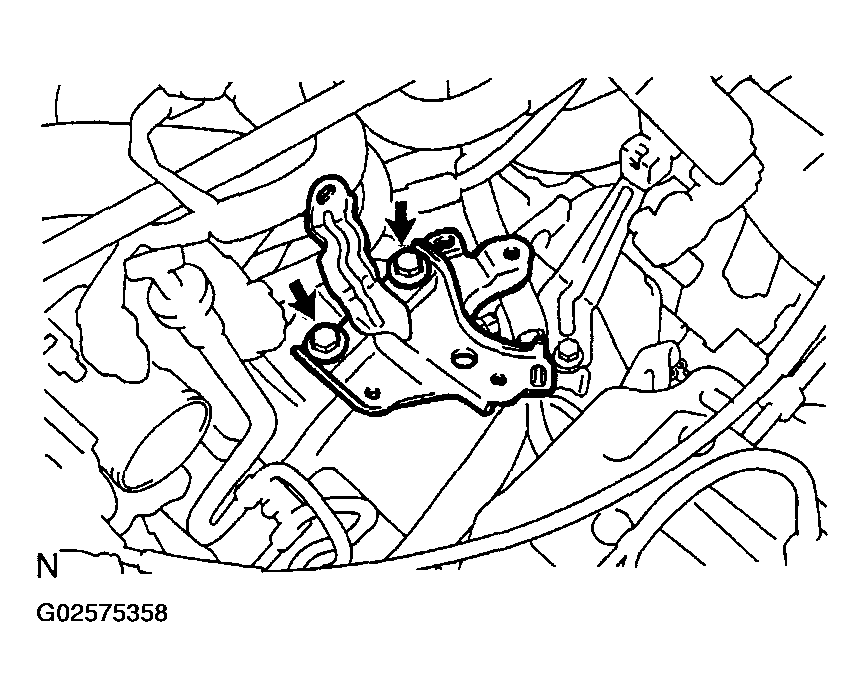

    Fig 3: Installing Air Cleaner Assembly And Shift Control Cable Clamp
    G02575358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
