On-Vehicle Repair

WARNING: This page is about a different variant/trim than selected.

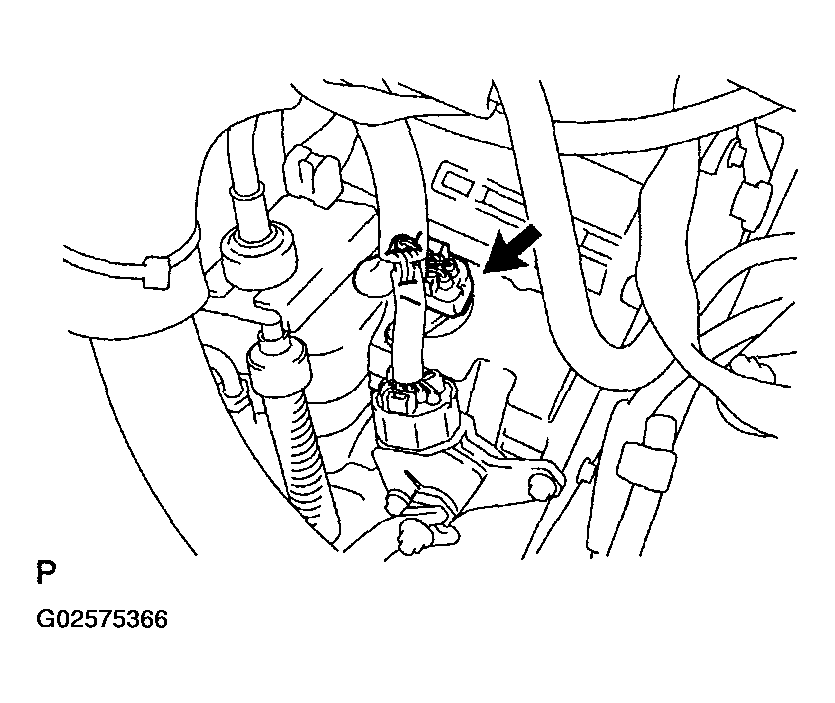

DISCONNECT SOLENOID CONNECTOR
REMOVE DRAIN PLUG AND DRAIN ATF

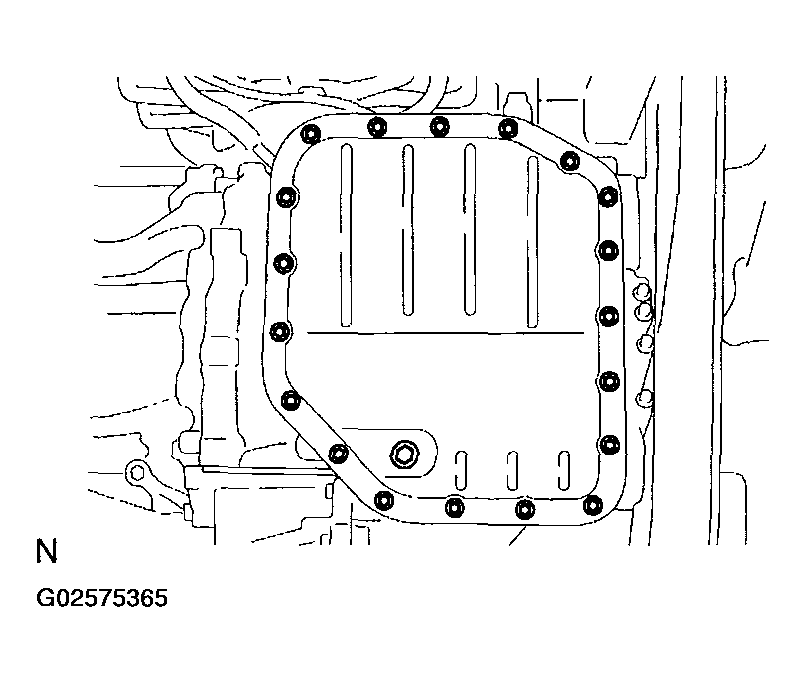

REMOVE OIL PAN AND GASKET
NOTE: Some fluid will remain in the oil pan.

Remove the 19 bolts, and carefully remove the oil pan assembly. Discard the gasket.

Fig 2: Removing Oil Pan And Gasket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

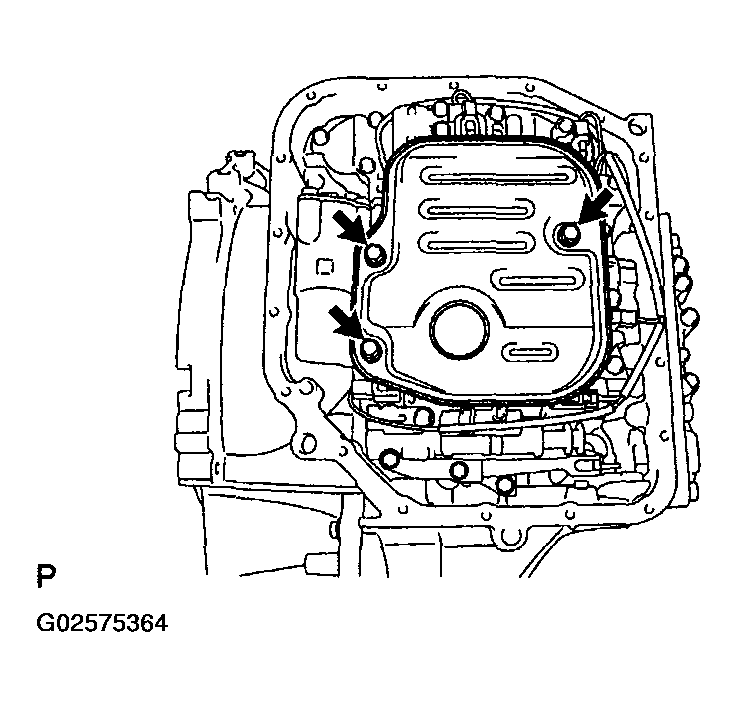

REMOVE OIL STRAINER
1. Remove the 3 bolts and oil strainer.
2. Remove the O-ring.
Fig 3: Removing Oil Strainer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

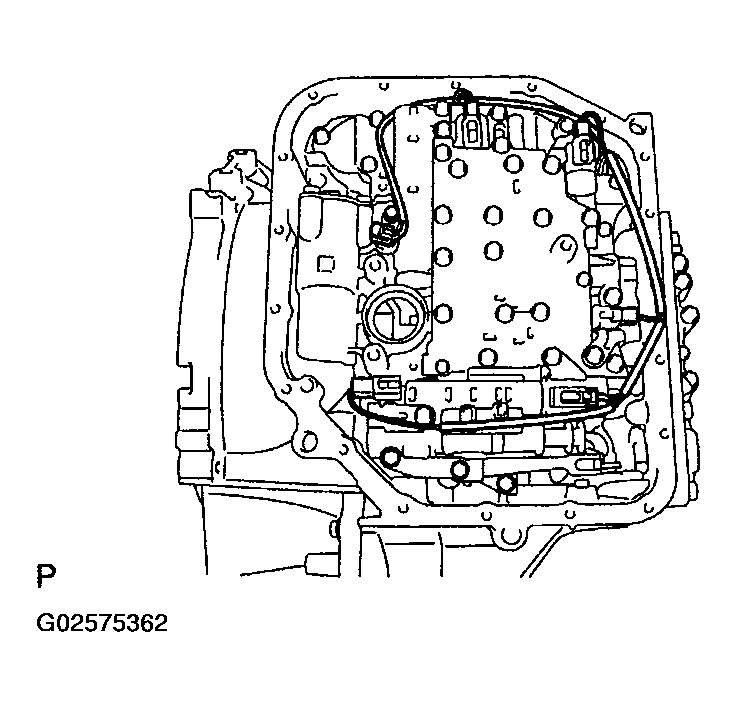

DISCONNECT 5 SHIFT SOLENOID VALVE CONNECTORS
REMOVE ATF TEMPERATURE SENSOR
1. Remove the bolt and lock plate, and remove the ATF temperature sensor.
2. Remove the O-ring from the ATF temperature sensor.
INSTALL ATF TEMPERATURE SENSOR
1. Coat a new O-ring with ATF and it to the direct clutch speed sensor.

  Fig 4: Installing ATF Temperature Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the ATF temperature sensor with the lock plate and bolt.
  Torque: 11 N.m (110 kgf.cm, 8 ft.lbf)
CONNECT 5 SHIFT SOLENOID VALVE CONNECTORS

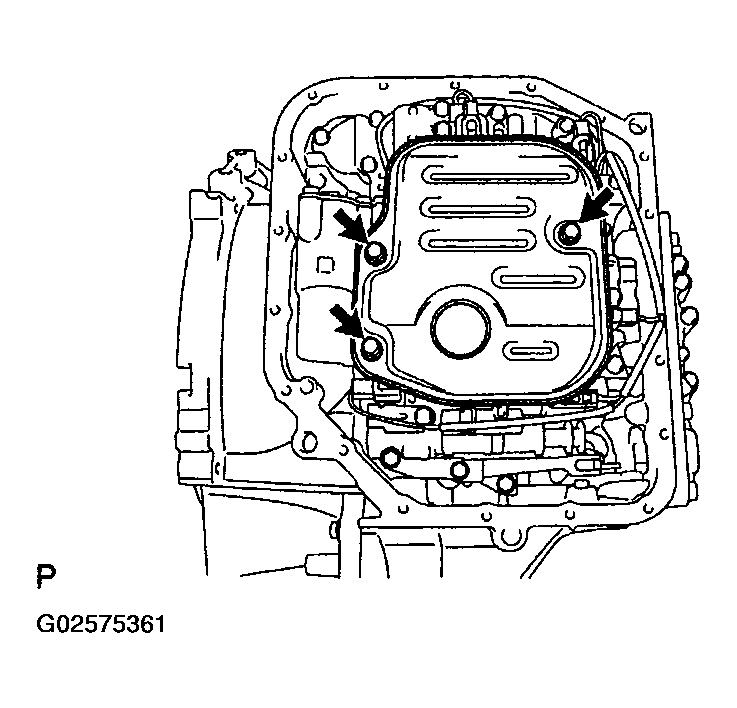

INSTALL OIL STRAINER
1. Coat a new O-ring with ATF.
2. Install the O-ring to the oil strainer.

  Fig 5: Installing Oil Strainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the oil strainer with the 3 bolts.
  Torque: 11 N.m (110 kgf.cm, 8 ft.lbf)
Fig 6: Installing Oil Strainer With Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

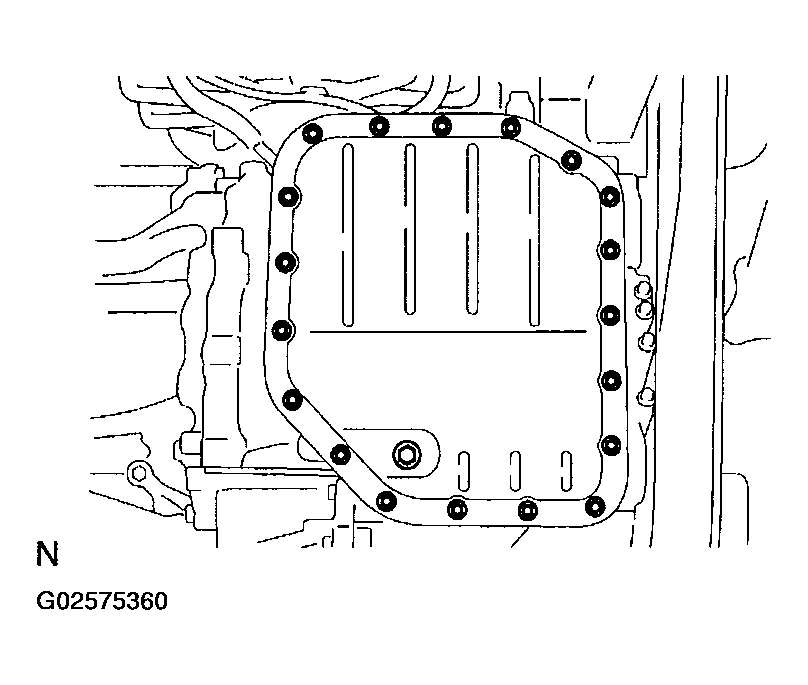

INSTALL OIL PAN
Install the oil pan and a new gasket with the 19 bolts.

Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)
INSTALL DRAIN PLUG
Install a new gasket and drain plug.

Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)

Fig 7: Installing Drain Plug
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

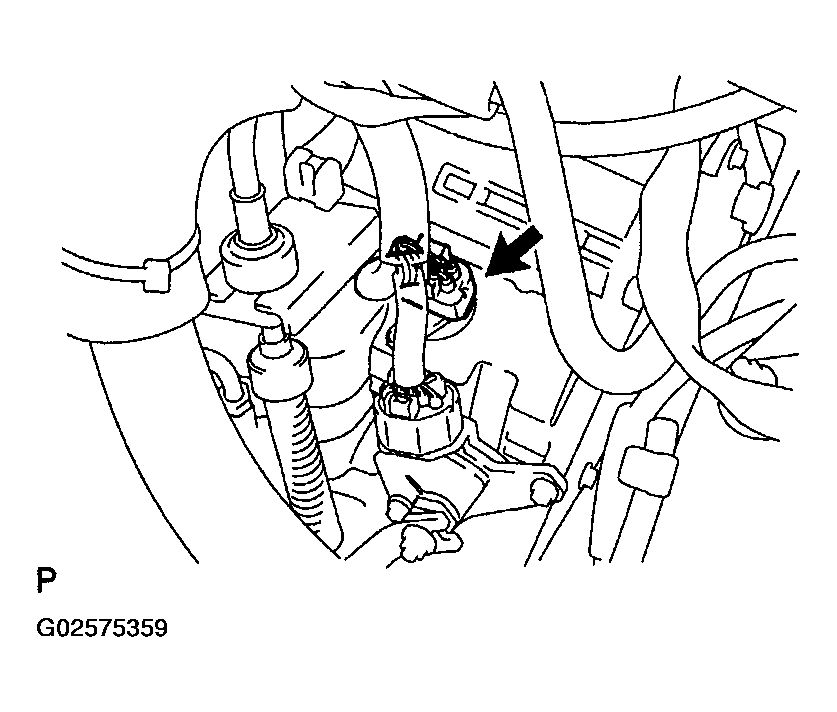

CONNECT SOLENOID CONNECTOR
FILL ATF AND CHECK ATF LEVEL
(See PRE-CHECK )
