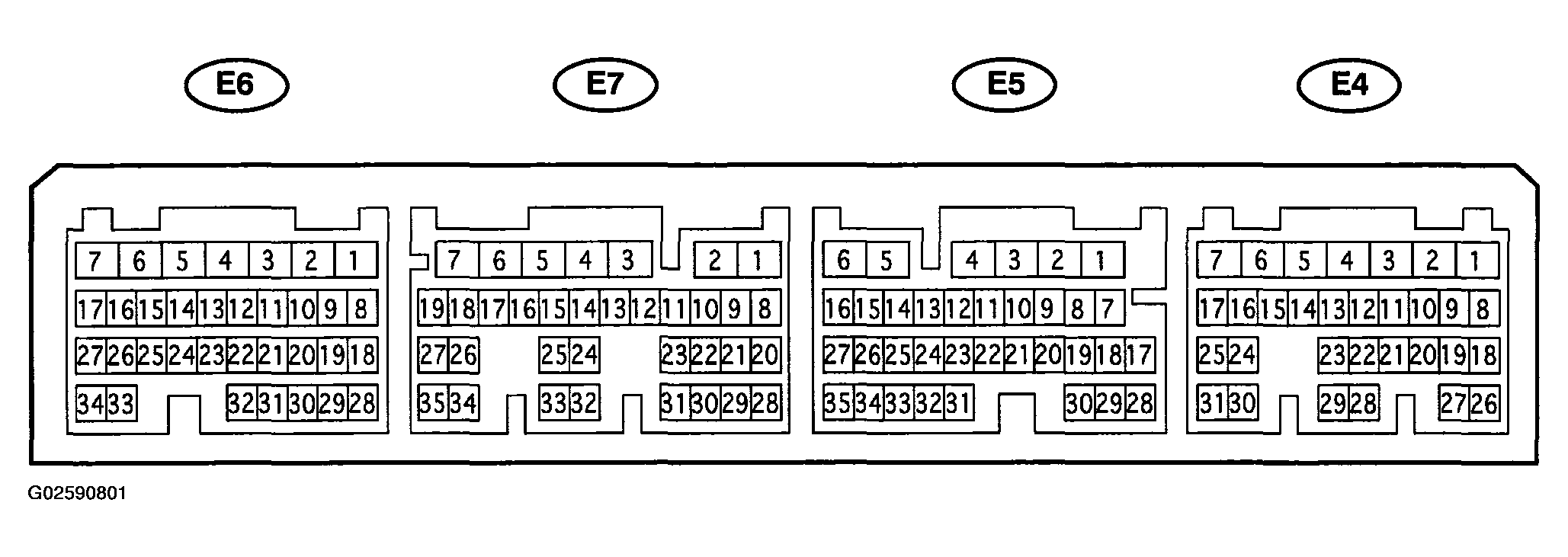

Terminals Of ECM
WARNING: This page is about a different variant/trim than selected.
ECM TERMINALS VOLTAGE CONDITIONS
| Symbols (Terminals No.) | Wiring Color | Condition | STD Voltage(v) |
|---|---|---|---|
| ODLP(E5-7)-E1(E7-7) | G-O-BR | IG ON and O/D OFF indicator light comes on | Below 1 |
| ODLP(E5-7)-E1(E7-7) | G-O-BR | IG ON and O/D OFF indicator light goes off | 10 to 14 |
| L(E5-8)-E1(E7-7) | G-W-BR | IG ON and Shift lever L Position | 10 to 14 |
| L(E5-8)-E1(E7-7) | G-W-BR | IG ON and Shift lever except L position | Below 1 |
| 2(E5-9)-E1(E7-7) | G-BR | IG ON and Shift lever 2 position | 10 to 14 |
| 2(E5-9)-E1(E7-7) | G-BR | IG ON and Shift lever 2 position Below 1 | |
| D(E5-10)-E1(E7-7) | R-Y-BR | IG ON and Shift lever D position | 10 to 14 |
| D(E5-10)-E1(E7-7) | R-Y-BR | IG ON and Shift lever except D position | Below 1 |
| R(E5-11)-E1(E7-7) | R-Y-BR | IG ON and Shift lever R position | 10 to 14 |
| R(E5-11)-E1(E7-7) | R-Y-BR | IG ON and Shift lever except R position | Below 1 |
| SPD(E5-17)-E1(E7-7) | V-W-BR | IG ON and Rotate driving wheel slowly | Pulse generation See DTC P0420: CATALYST SYSTEM EFFICIENCY BELOW T |
| STP(E5-19)-E1(E7-7) | G-B-BR | IG switch, ON, Brake pedal is depressed | 7.5 to 14 |
| STP(E5-19)-E1(E7-7) | G-B-BR | IG switch, ON, Brake pedal is released | Below 1.5 |
| ODMS(E5-29)-E1(E7-7) | G-B-BR | IG ON | Below 1 |
| ODMS(E5-29)-E1(E7-7) | G-B-BR | IG ON Press continuously O/D main switch | 10 to 14 |
| SLT*(E6-17)-SLT(E6-16) | W-L-W | IG ON | 10 to 14 |
| OIL(E6-30)-E2(E6-28) | Y-G-W | IG ON and ATF temperature 110°C(230°F) | Below 1 |
| NSW(E7-8)-E1(E7-7) | B-BR | IG ON and Shift lever P or N position | Below 1 |
| NSW(E7-8)-E1(E7-7) | B-BR | IG ON and Shift lever except P or N position | 10 to 14 |
| ST(E7-12)-E1(E7-7) | B-R-BR | IG ON | Below 1 |
| ST(E7-12)-E1(E7-7) | B-R-BR | IG ON and R gear | 10 to 14 |
| SL(E7-13)-E1(E7-7) | G-BR | IG ON | Below 1 |
| SL(E7-13)-E1(E7-7) | G-BR | Vehicle driving under lock-up position | 10 to 14 |
| S2(E7-14)-E1(E7-7) | W-R-BR | IG ON | Below 1 |
| S2(E7-14)-E1(E7-7) | W-R-BR | 1st or O/D gear | 10 to 14 |
| S2(E7-14)-E1(E7-7) | W-R-BR | 2nd or 3rd gear | Below 1 |
| S1 (E7-15)-E1 (E7-7) | W-G-BR | IG ON | 10 to 14 |
| S1 (E7-15)-E1 (E7-7) | W-G-BR | 1st or 2nd gear | 10 to 14 |
| S1 (E7-15)-E1 (E7-7) | W-G-BR | 3rd or O/D gear | Below 1 |
| NT+ (E7-27)-NT- (E7-35) | R-B | Engine is running | Pulse signal is output Below 1 <--> 4 to 5 |
