Section 2 (Automatic Transmission - U340E - Diagnostics)
>>
How To Proceed With Troubleshooting
How To Proceed With Troubleshooting
WARNING:
This page is about a different variant/trim than selected.

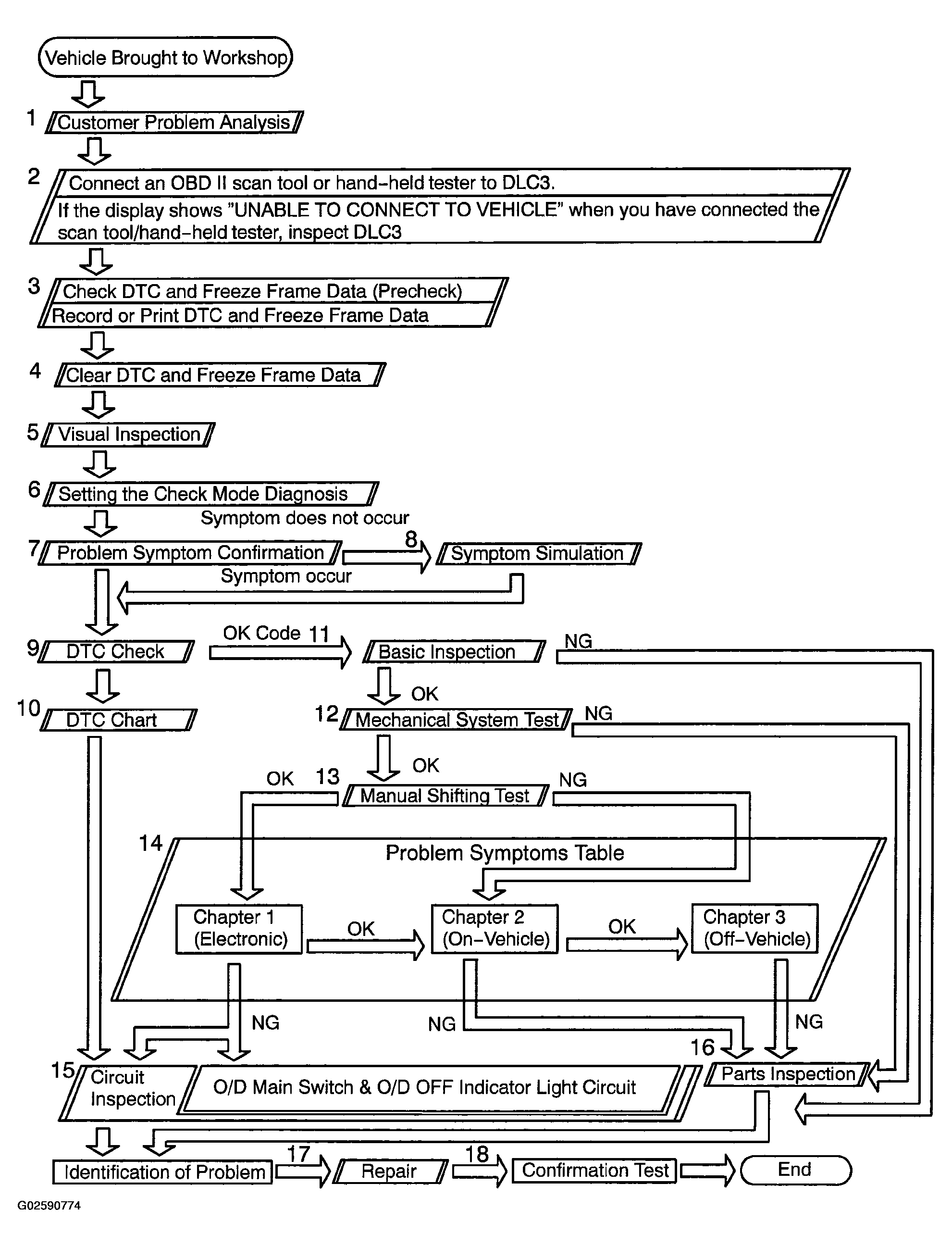

Fig 1: Troubleshooting Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
