O/D Main Switch & O/D OFF Indicator Light Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

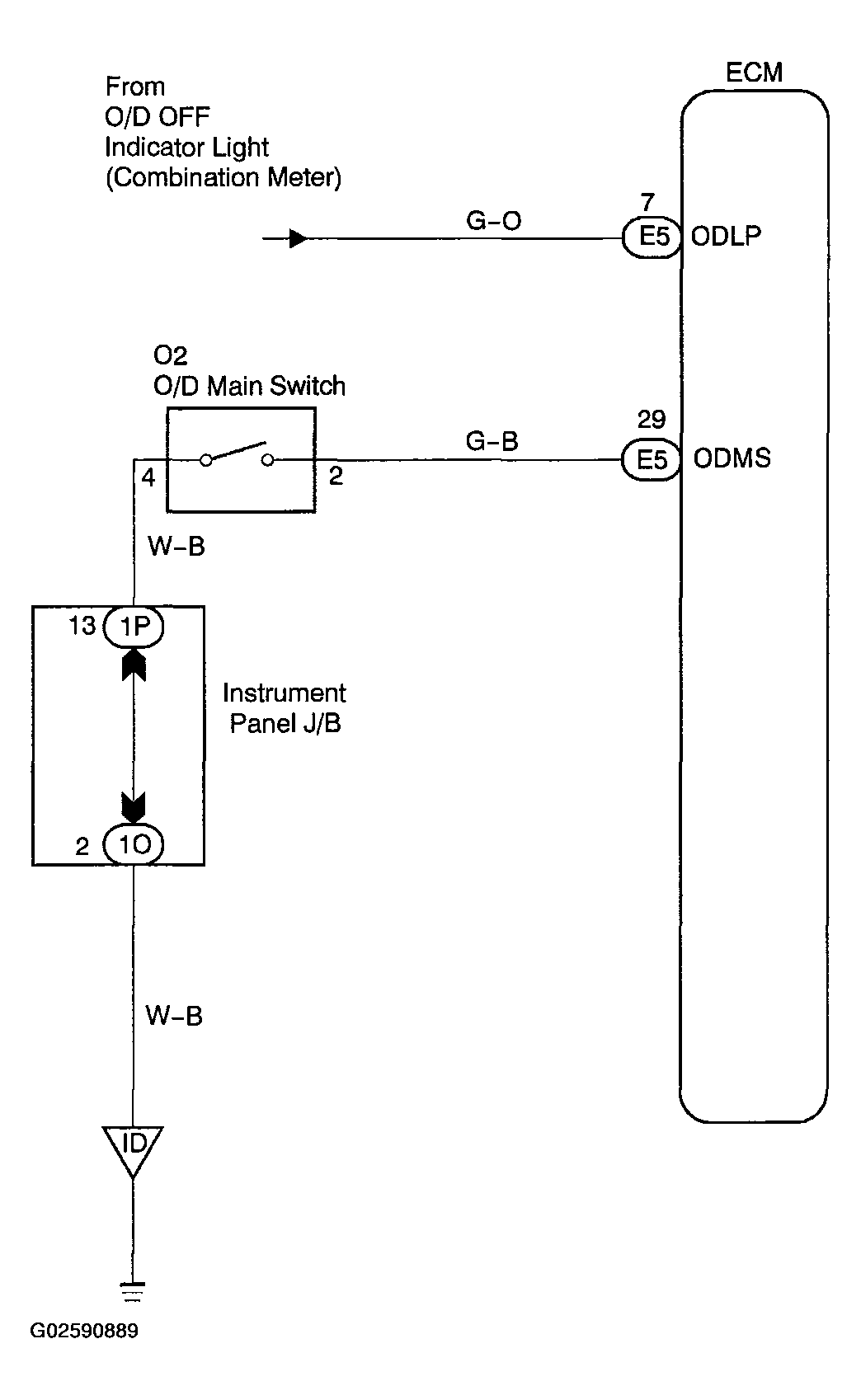

Fig 1: Wiring Diagram - O/D Main Switch & O/D Off Indicator Light Circuit
G02590889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
