DTC P0787, P0788: Shift/Timing Solenoid Low/High (Shift Solenoid Valve ST): Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

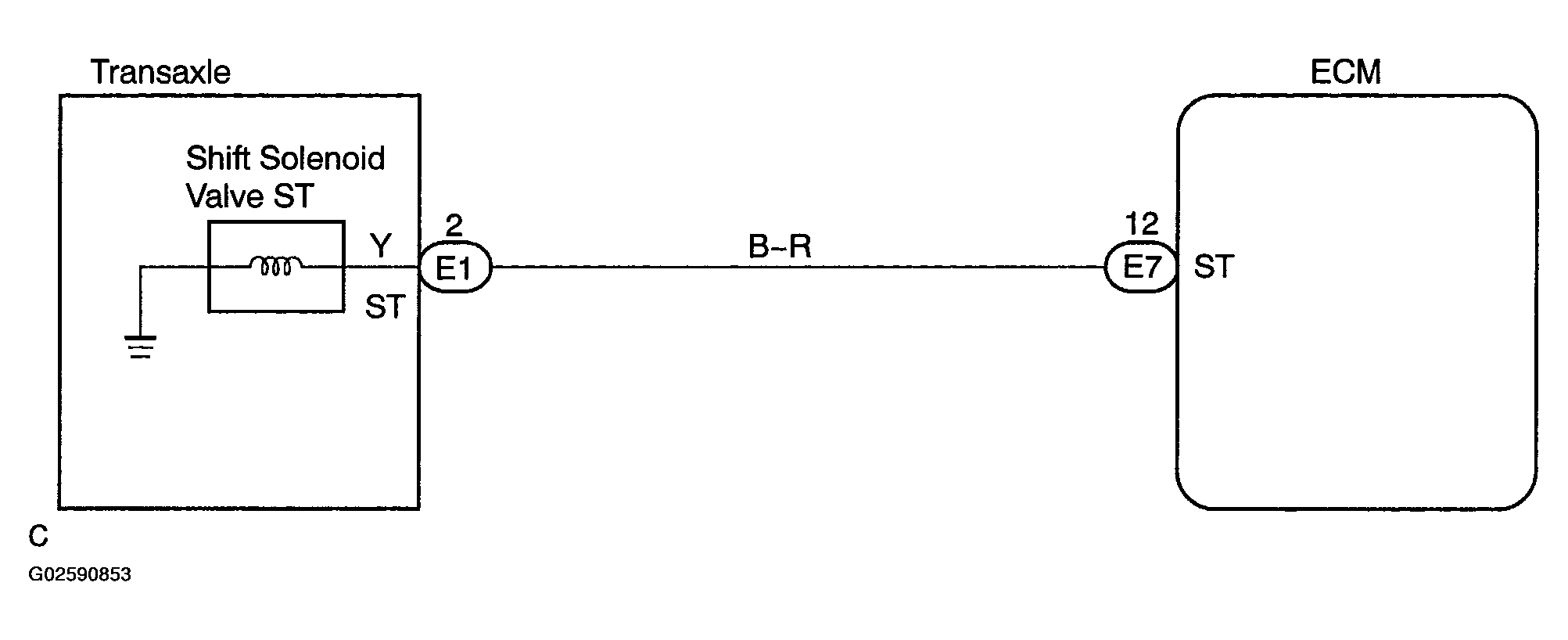

Fig 1: Wiring Diagram - Shift Solenoid Valve ST
G02590853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
