Section 2 (Automatic Transmission - U340E - Diagnostics)
>>
Circuit Inspection
>>
DTC P0756: Shift Solenoid "B" Performance (Shift Solenoid Valve S2)
>>
Typical Enabling Conditions
Typical Enabling Conditions
WARNING:
This page is about a different variant/trim than selected.

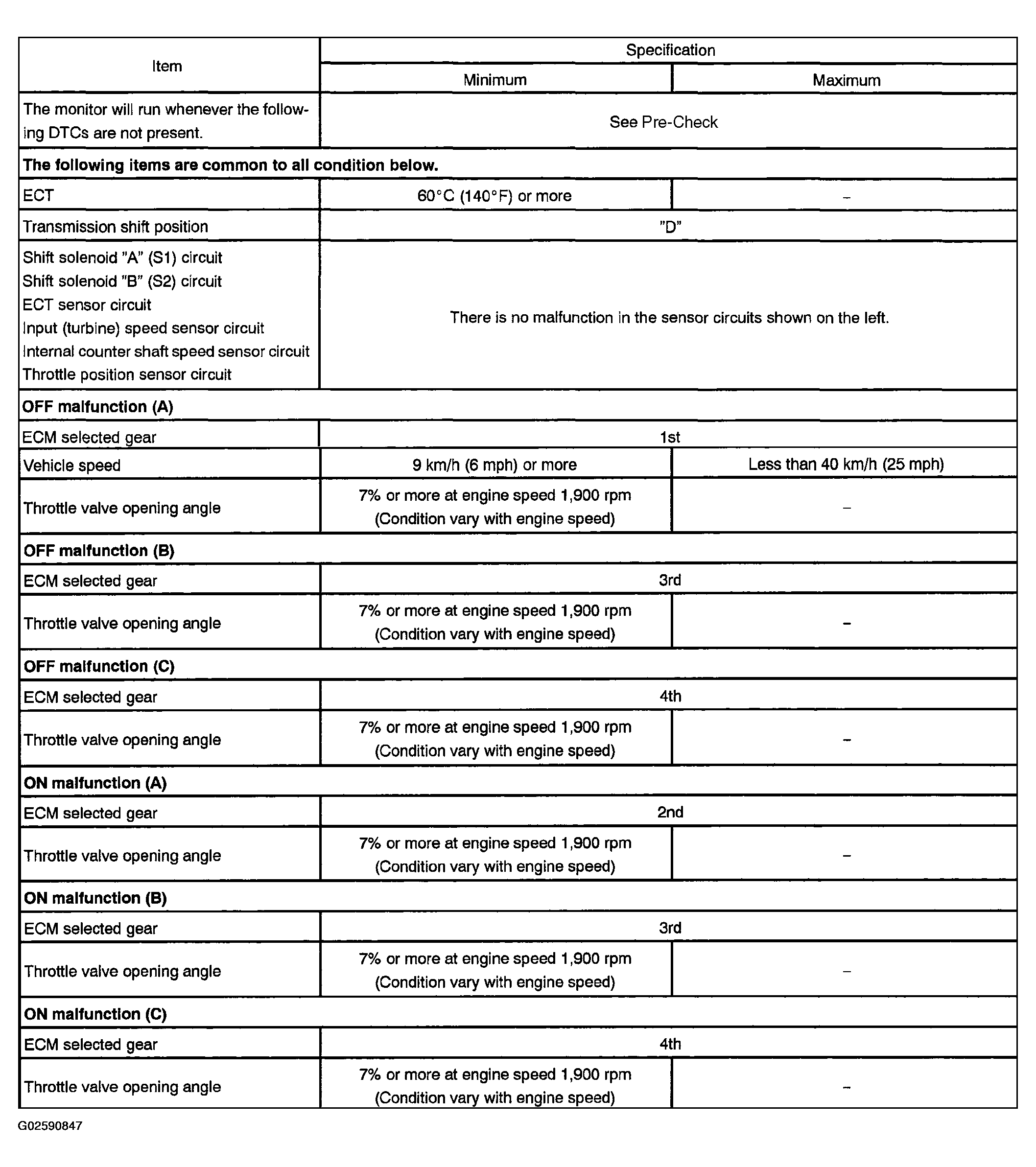

Fig 1: Typical Enabling Conditions Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
