DTC P0724: Brake Switch "B" Circuit High: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

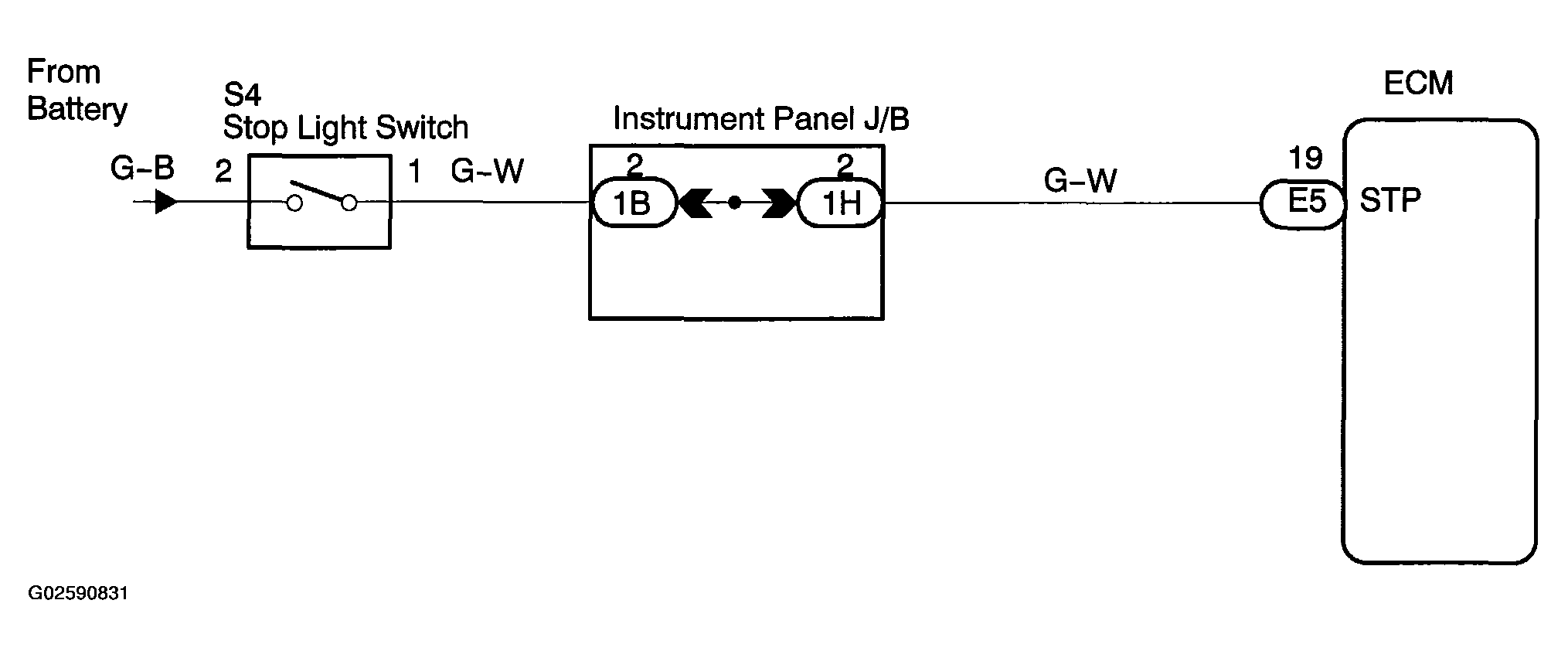

Fig 1: Wiring Diagram - Brake Switch
G02590831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
