DTC P0717: Turbine Speed Sensor Circuit No Signal: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

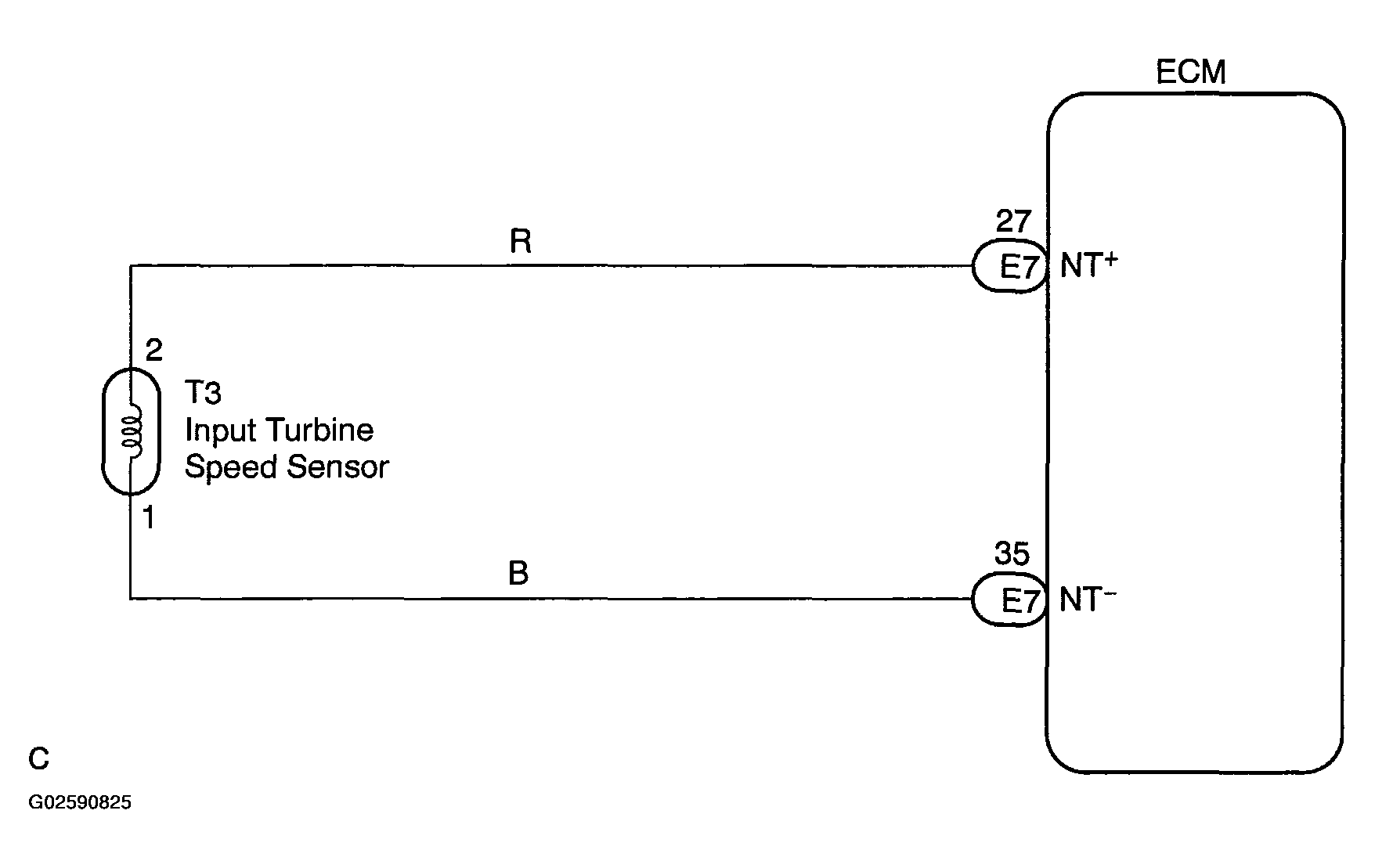

Fig 1: Wiring Diagram - Turbine Speed Sensor Circuit
G02590825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
