DTC P0710, P0712, P0713: Transmission Fluid Temperature Sensor "A" Circuit Low/High Input: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

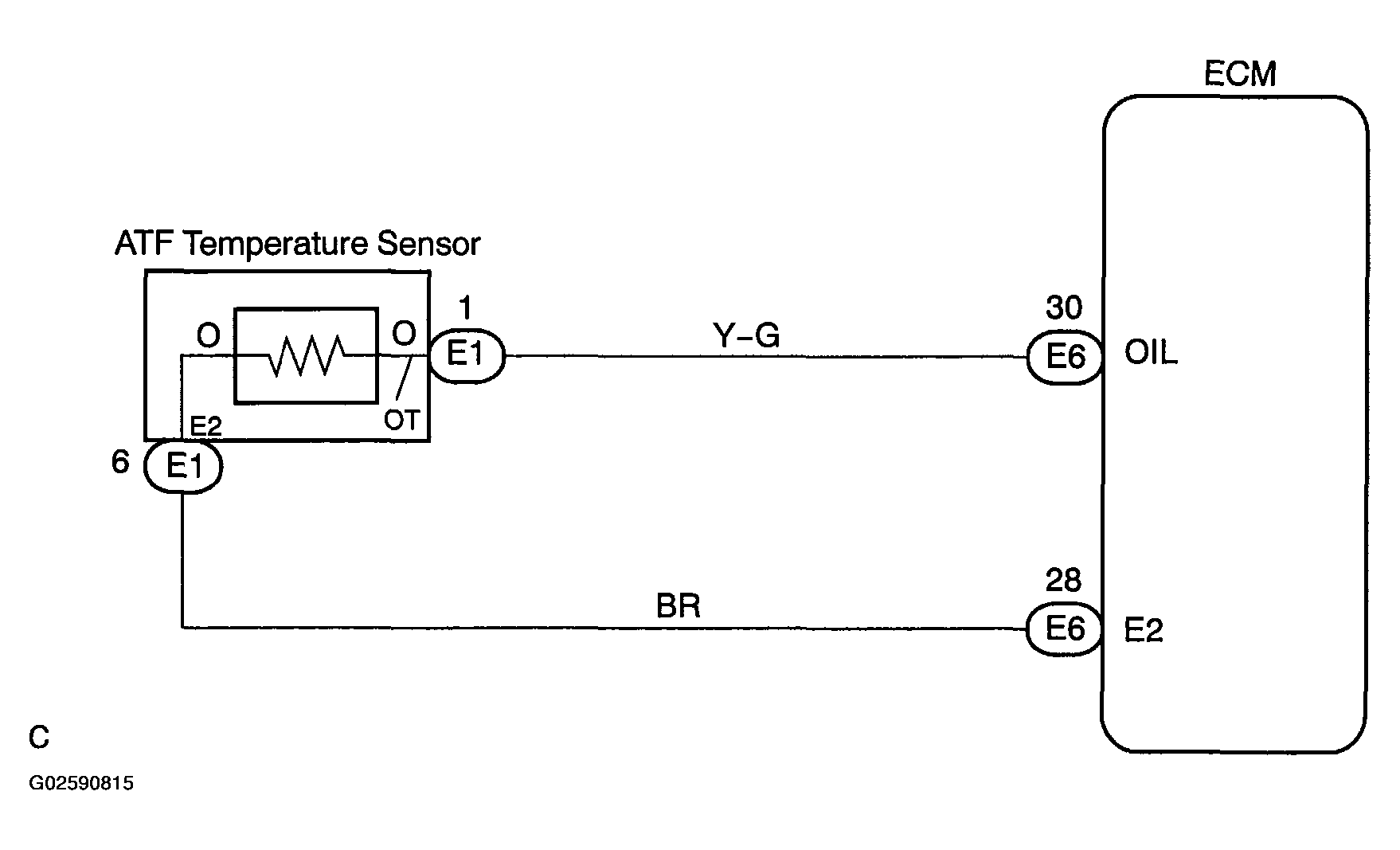

Fig 1: Wiring Diagram - Transmission Fluid Temperature Sensor
G02590815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
