DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input): Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

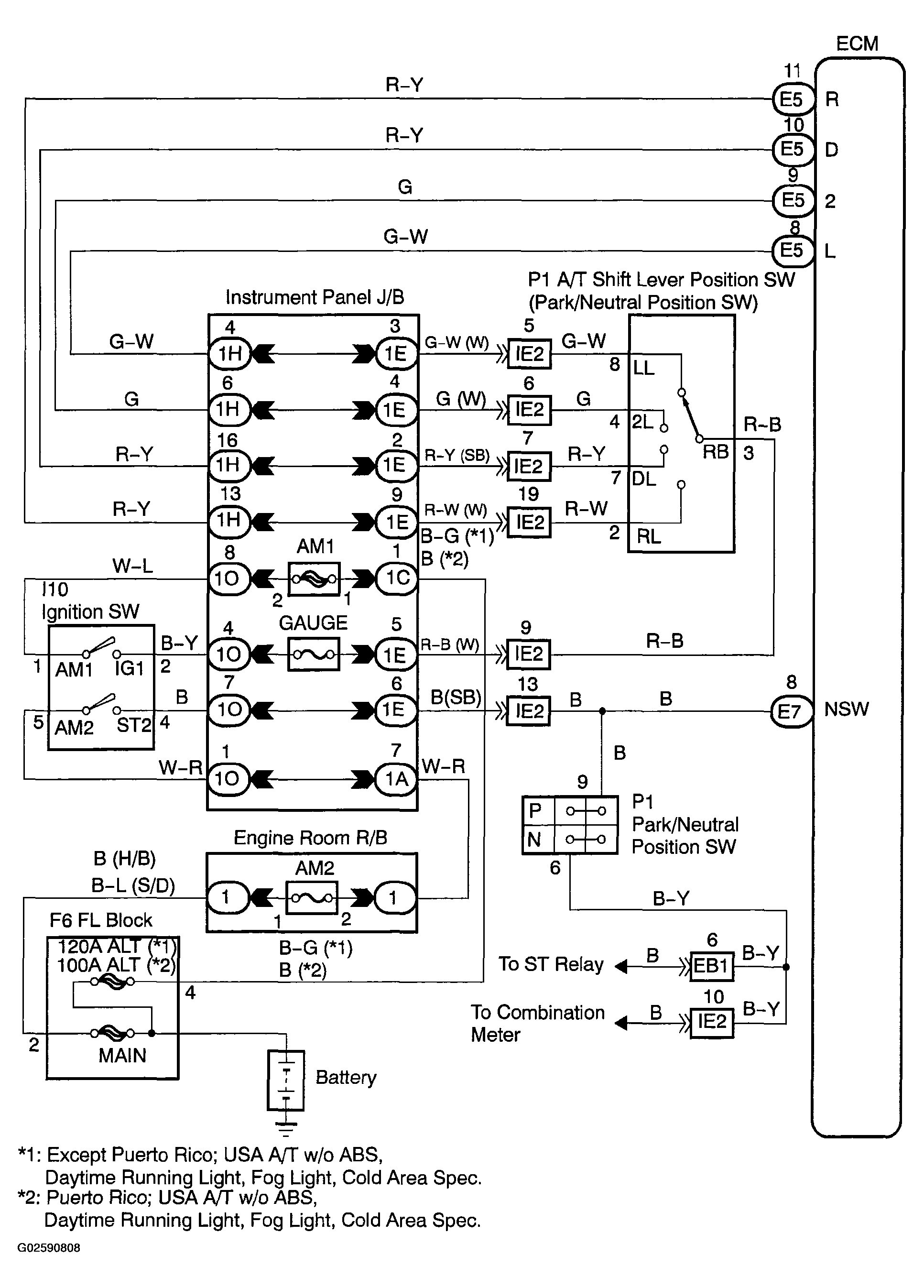

Fig 1: Wiring Diagram - Transmission Range Sensor Circuit
G02590808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
