Valve Body Assembly: Reassembly

WARNING: This page is about a different variant/trim than selected.
  1. Install NEW "O" rings to forward clutch and 2nd coast and O/D brake accumulator pistons. Install .594" (85.10 mm) outside diameter spring, 2nd coast and O/D brake accumulator piston, cover and 4 bolts. Install .787" (20.00 mm) outside diameter spring, forward clutch accumulator piston, cover and 3 bolts. Tighten bolts to 97 INCH lbs. (11 N.m). See Figure.

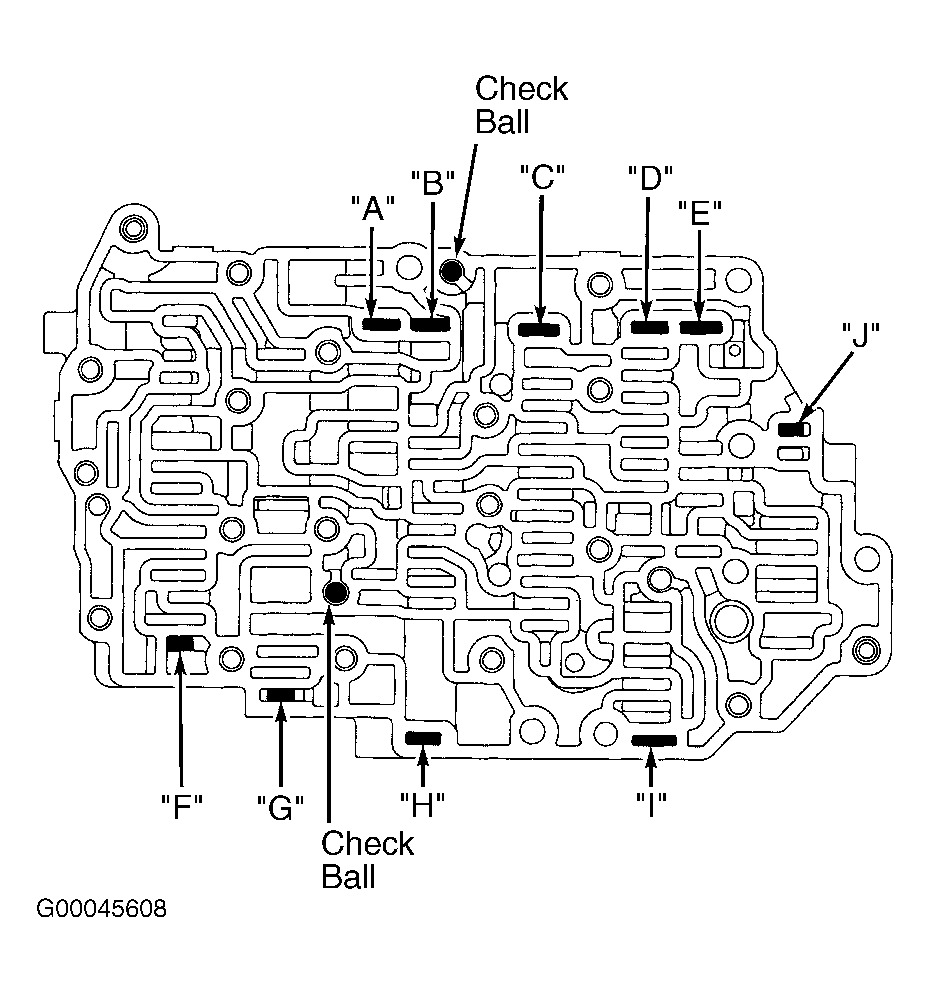

  2. Install check balls in upper and lower valve bodies. Ensure check balls are installed in correct locations. See Figure and Figure .
  3. Install plate to lower valve body. Install lower valve body with plate to upper valve body. Turn valve body assembly over. Install 9 upper valve body bolts and tighten to 97 INCH lbs. (11 N.m). Install pressure relief ball, cover and bolt. Tighten bolt to 58 INCH lbs. (6.6 N.m).
  4. Turn valve body assembly over. Install 2 gaskets, plate cover and 14 lower valve body bolts. Ensure bolts are installed in correct locations. Tighten bolts "A" to 58 INCH lbs. (6.6 N.m). Tighten bolts "B" to 97 INCH lbs. (11 N.m). See Figure.
  5. Install 5 shift solenoids and bolts. Tighten shift solenoid S2 bolt "A" to 58 INCH lbs. (6.6 N.m). Bolt length is .55" (14.0 mm). Tighten all other shift solenoid bolts to 97 INCH lbs. (11 N.m). Bolt length is 2.17" (55.0 mm). See Figure. Ensure primary regulator valve is installed in correct position. See Figure.
