Valve Body Assembly: Inspection

WARNING: This page is about a different variant/trim than selected.

Clean all parts with solvent. Dry parts with compressed air. Ensure all valve body oil passages are clear. Inspect valves for scoring or roughness. See Fig 1 and Fig 2 . Inspect valve springs for damage, squareness, rust and collapsed coils. Measure spring free length and outer diameter.
Replace spring if not within specification. See appropriate VALVE BODY SPRING SPECIFICATIONS table. Ensure valve body springs correspond with appropriate valve. Ensure keys are installed in appropriate locations. See appropriate VALVE BODY KEY SPECIFICATIONS table.

VALVE BODY SPRING SPECIFICATIONS (UPPER)

Application (Color) ⁽¹⁾

Outer Diameter - In. (mm)

Free Length - In. (mm)

Coast Relay Valve (Blue)

.335 (8.50)

.870 (22.10)

Lock-Up Relay Valve (Orange)

.231 (5.86)

.922 (23.42)

Low Modulator Valve (Red)

.291 (7.40)

1.008 (25.60)

Reverse Control Valve (None)

.394 (10.00)

.925 (23.50)

Secondary Regulator Valve (None)

.343 (8.70)

2.114 (53.70)

Solenoid Modulator Valve (Orange)

.323 (8.20)

1.173 (29.80)

Solenoid Relay Valve (Purple)

.311 (7.90)

.818 (20.78)

SLT Damper (Yellow)

.394 (10.00)

1.221 (31.00)

2-3 Shift Valve (None)

.386 (9.80)

1.023 (25.98)

3-4 Shift Timing Valve (White)

.311 (7.90)

1.575 (40.00)

4-3 Shift Timing No. 1 Valve (Lt. Green)

.327 (8.30)

1.264 (32.11)

⁽¹⁾	For spring locations, refer to illustration. See Fig 1.

VALVE BODY SPRING SPECIFICATIONS (LOWER)

Application (Color) ⁽¹⁾

Outer Diameter - In. (mm)

Free Length - In. (mm)

Accumulator Control Valve (None)

.433 (11.00)

1.067 (27.10)

Lock-Up Control Valve (None)

.219 (5.55)

.823 (20.90)

Pressure Relief Valve (None)

.406 (10.30)

1.006 (25.55)

Primary Regulator Valve (None)

.862 (21.90)

2.358 (59.90)

1-2 & 3-4 Shift Valve (None)

.386 (9.80)

1.023 (25.98)

⁽¹⁾	For spring locations, refer to illustration. See Fig 2.

VALVE BODY KEY SPECIFICATIONS (UPPER)

Key I.D. Letter ⁽¹⁾

⁽²⁾ Height - In. (mm)

D, F, G & J

.394 (10.00)

1.122 (28.50)

All Other Keys

.906 (23.00)

⁽¹⁾	For key locations, refer to illustration. See Fig 1.

⁽²⁾	Thickness for key "E" is .114" (2.90 mm). Width is .157" (4.00 mm). For keys "D", "F", "G" and "J" width is .197" (5.00 mm). Thickness is .126" (3.20 mm). Width for all other keys is not available.

VALVE BODY KEY SPECIFICATIONS (LOWER)

Key I.D. Letter ⁽¹⁾

⁽²⁾ Height - In. (mm)

A, B & C

.453 (11.50)

.827 (21.00)

⁽¹⁾	For key locations, refer to illustration. See Fig 2.

⁽²⁾	Width for all keys except "D", is .197" (5.00 mm). Width for key "D" is not available. Thickness for all keys is .126" (3.20 mm).

Fig 1: Exploded View Of Upper Valve Body

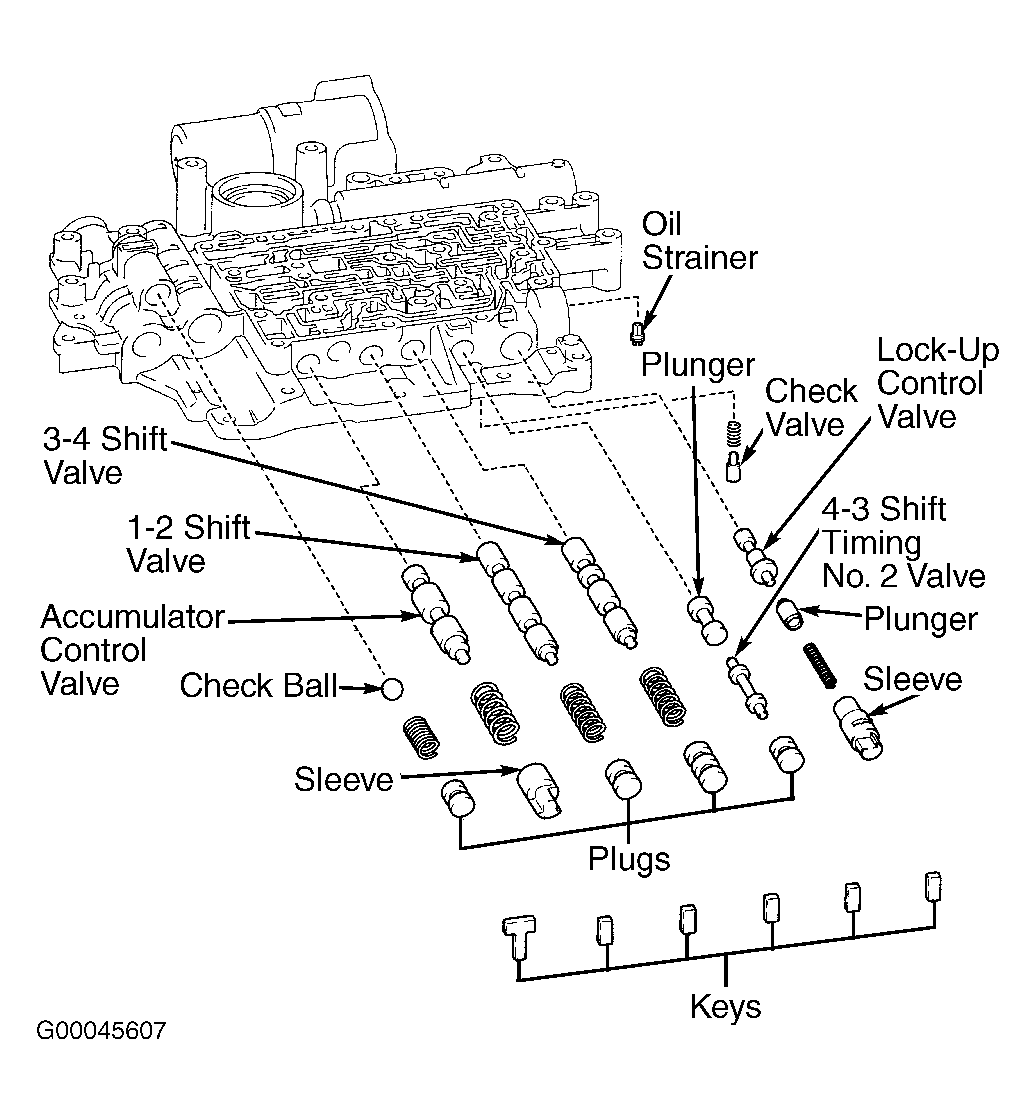

Fig 2: Exploded View Of Lower Valve Body

Fig 3: Identifying Upper Valve Body Check Ball & Key Locations

Fig 4: Identifying Lower Valve Body Check Ball & Key Locations
