Oil Pump Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

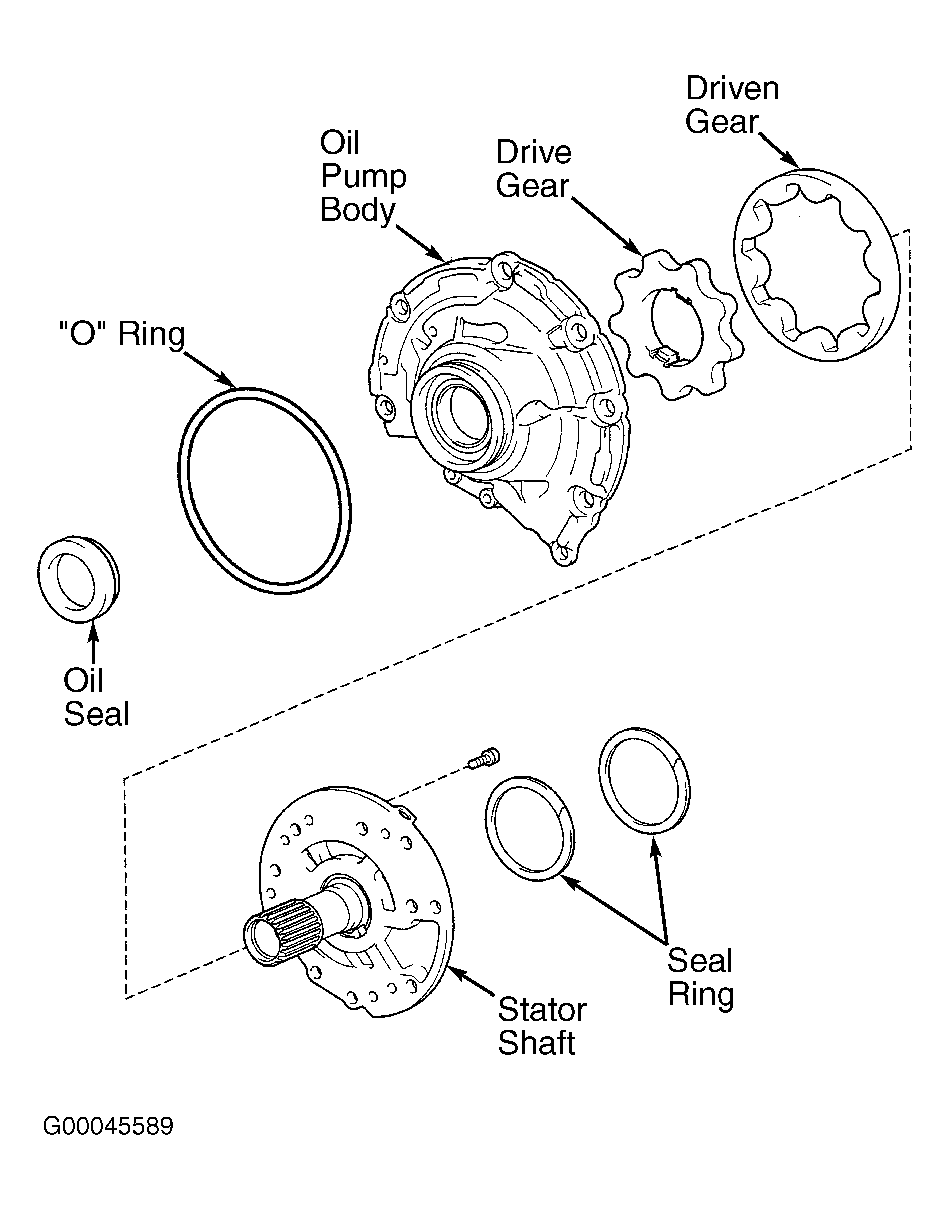

Using 2 screwdrivers, turn drive gear and check for smooth rotation. Remove 2 oil seal rings. Using T30 Torx socket, remove 10 bolts attaching oil pump body and stator shaft. Remove "O" ring from oil pump body. See Figure. Note direction and location of drive and driven gears. Leave gears in oil pump body for inspection.
