Rear Speed Sensor: Removal

  1. REMOVE REAR WHEEL
  2. DISCONNECT SPEED SENSOR CONNECTOR
  3. REMOVE SPEED SENSOR WITH REAR AXLE HUB (See  REMOVAL  )
  4. REMOVE ABS SPEED SENSOR
    1. Using a pin punch and hammer, drive out the 2 pins and remove the 2 attachments from SST.

      SST 09520-00031 (09520-00040, 09521-00020)

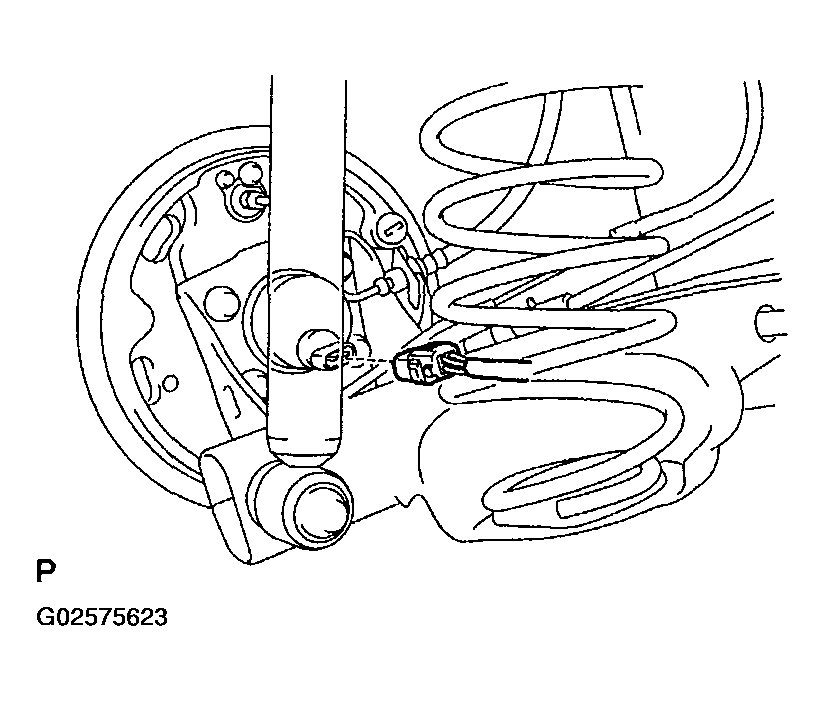

      Fig 1: Removing Speed Sensor With Rear Axle Hub
      G02575623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Mount the axle hub assembly in a soft jaw vise.
      NOTE: Replace the axle hub assembly if it is dropped or a strong shock is given to it.
    3. Using SST and 2 bolts (Diameter: 12 mm, Pitch: 1.5 mm), remove the ABS speed sensor.

      SST 09520-00031 (09520-00040, 09521-00020), 09950-00020

    NOTE:
    • Do not allow any foreign matter sticking to the sensor rotor.
    • Pull out the ABS speed sensor straightly not to damage the sensor rotor.
    • If damage has occurred to the sensor rotor, replace the axle hub assembly.
    • Do not scratch the contacting surface of the axle hub and speed sensor.

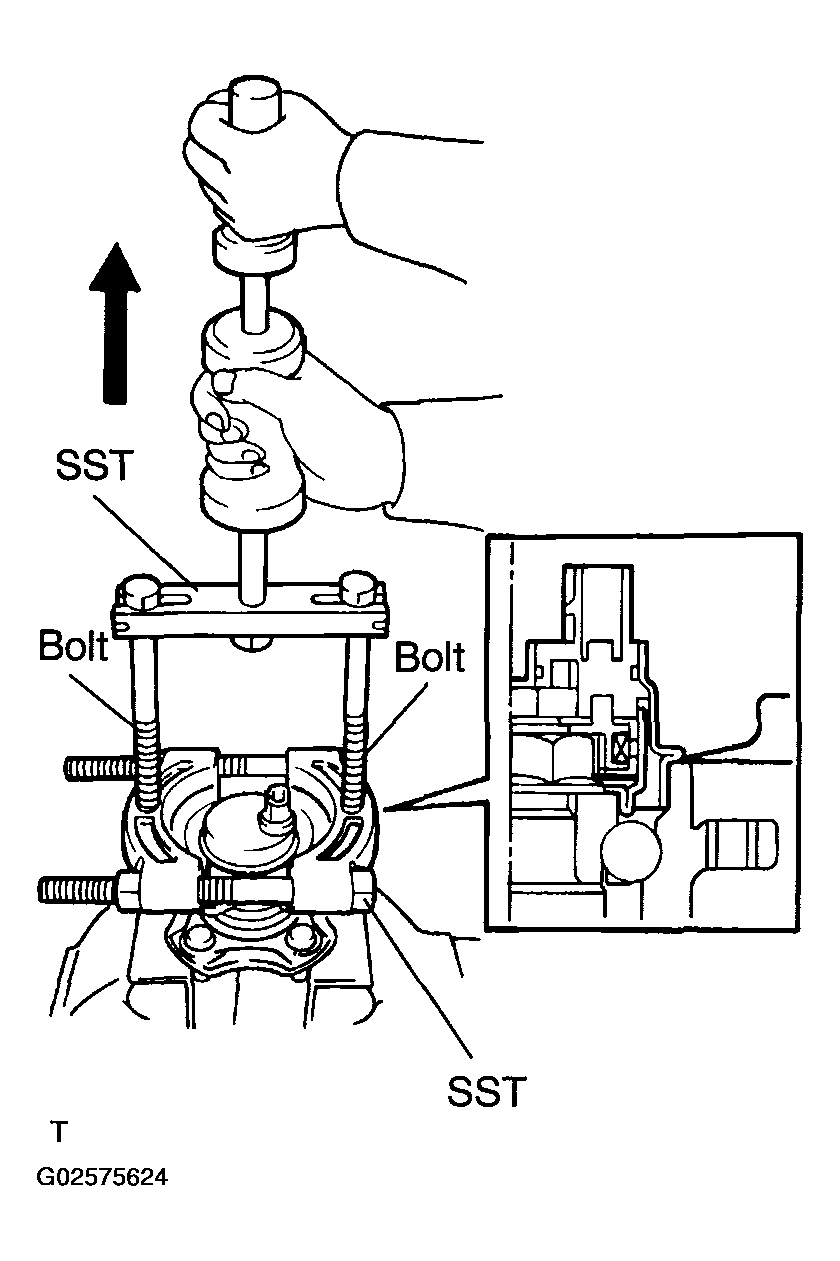

    Fig 2: Removing ABS Speed Sensor Using SST
    G02575624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
