Rear Brake Shoe, Wheel Cylinder & Brake Drum: Components

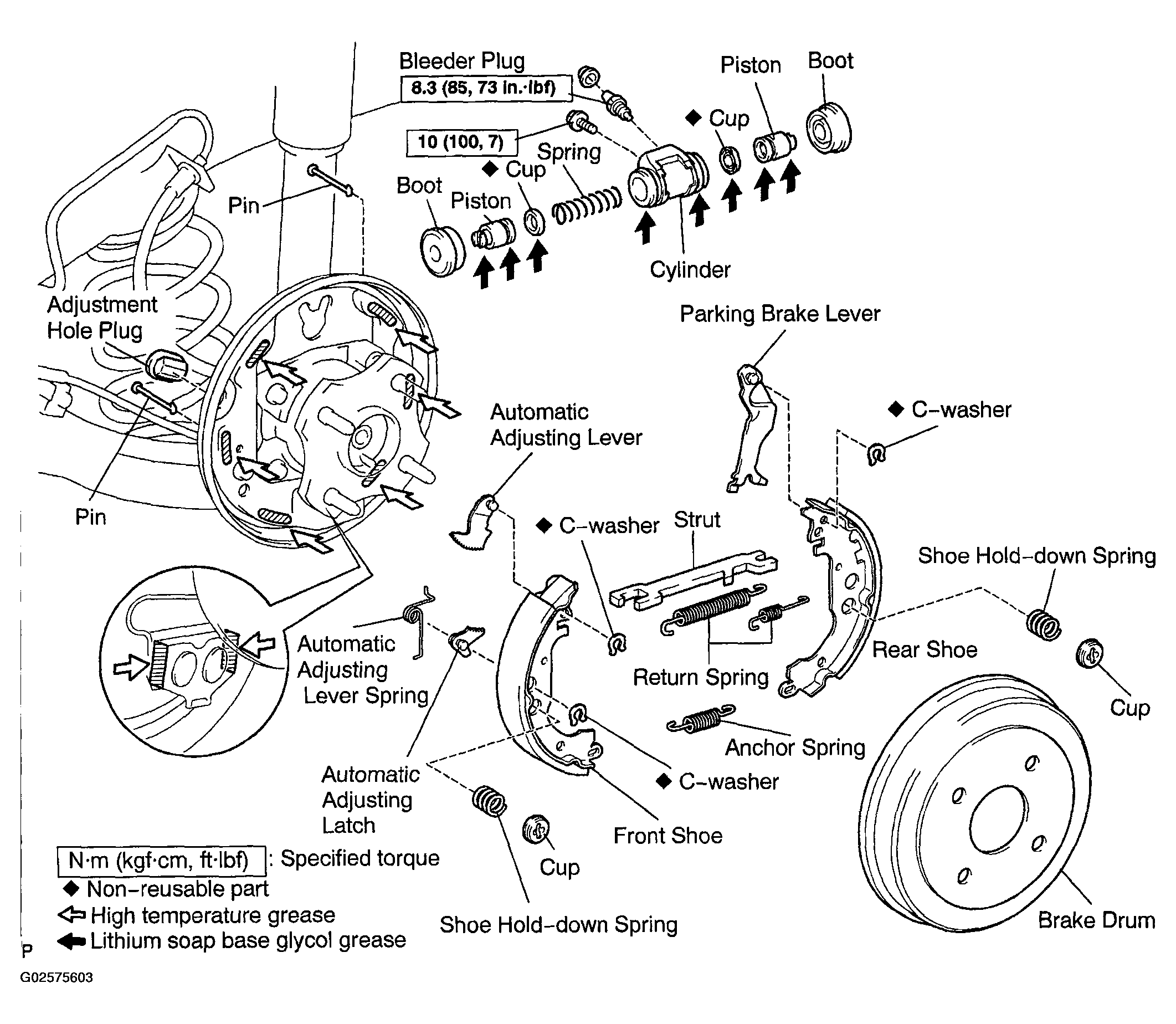

Fig 1: Exploded View Of Rear Drum Brake Components

G02575603

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
