Front Speed Sensor: Removal

Disconnect the speed sensor connector.

Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

1. Remove the 2 clamp bolts and a clip holding the sensor harness to the body and shock absorber.

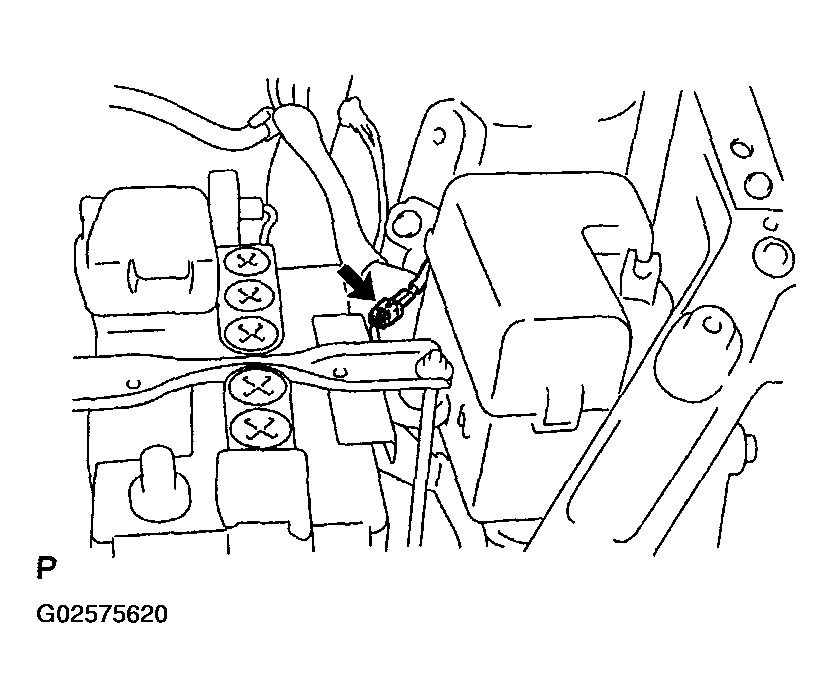

   Fig 1: Disconnecting Speed Sensor Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque:

   Harness clamp x Body:

   8.0 N.m (82 kgf.cm, 71 in.lbf)

   Harness clamp x Shock absorber:

   29.0 N.m (300 kgf.cm, 22 ft.lbf)

2. Remove the bolt and speed sensor from the steering knuckle.

   Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

Fig 2: Removing Bolt And Speed Sensor From Steering Knuckle

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
