Brake Master Cylinder: Removal

DISCONNECT LEVEL WARNING SWITCH CONNECTOR
DRAW OUT FLUID WITH SYRINGE
NOTE: Do not let brake fluid remain on a painted surface. Wash it off immediately.
M/T models:
DISCONNECT CLUTCH HOSE FROM RESERVOIR
DISCONNECT BRAKE LINES
Using SST, disconnect the 2 or 3 brake lines from the master cylinder.

SST 09023-00100

Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)

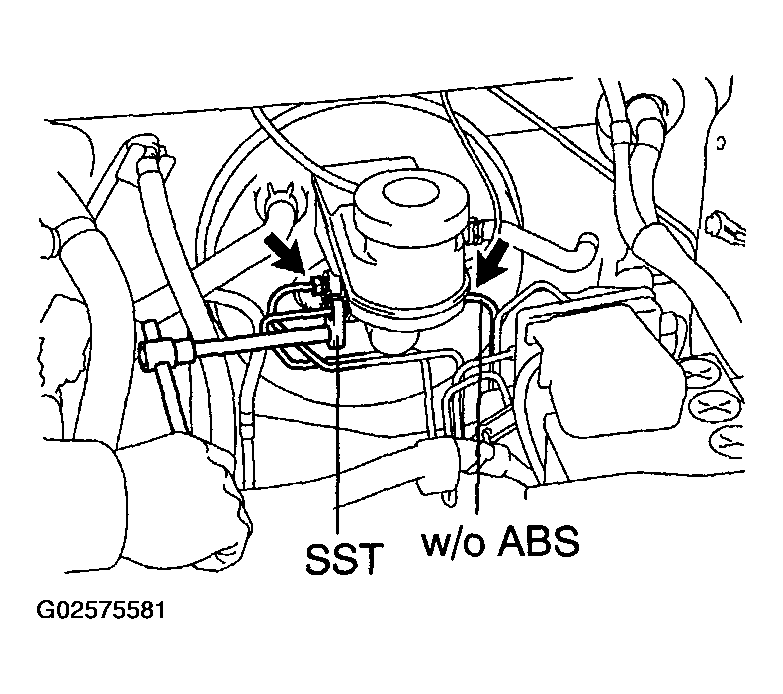

Fig 1: Disconnecting Brake Lines From Master Cylinder Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MASTER CYLINDER
Remove the 2 mounting nuts, and pull out the master cylinder and gasket.

Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)

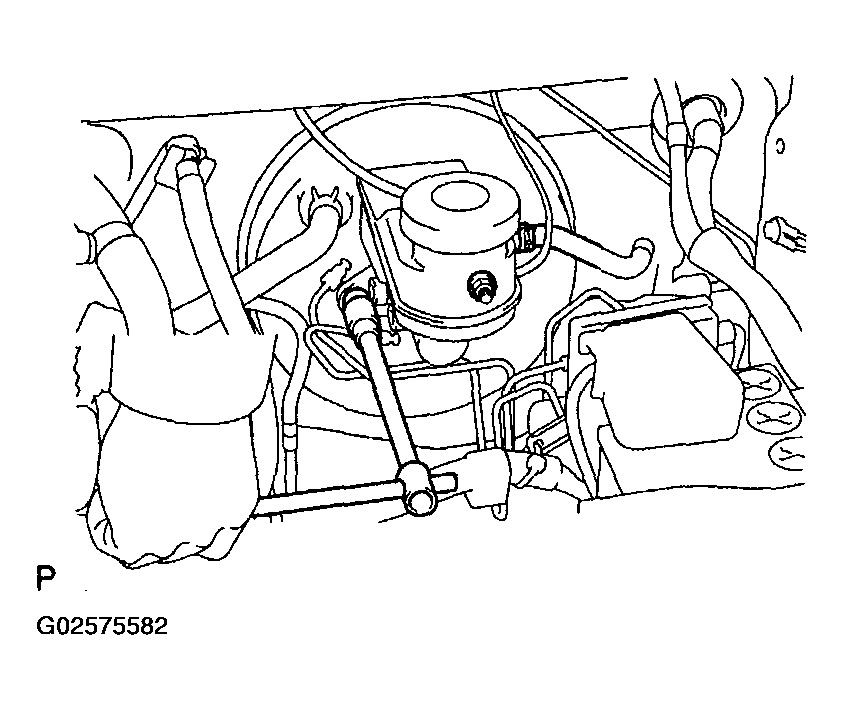

Fig 2: Removing Nut Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RESERVOIR
1. Pull out the reservoir stopper.
  NOTE: At the time of installation, make sure to insert the reservoir stopper through holes of the reservoir and the master cylinder groove.
2. Remove the reservoir and 2 grommets.
3. Remove the cap and strainer from the reservoir.

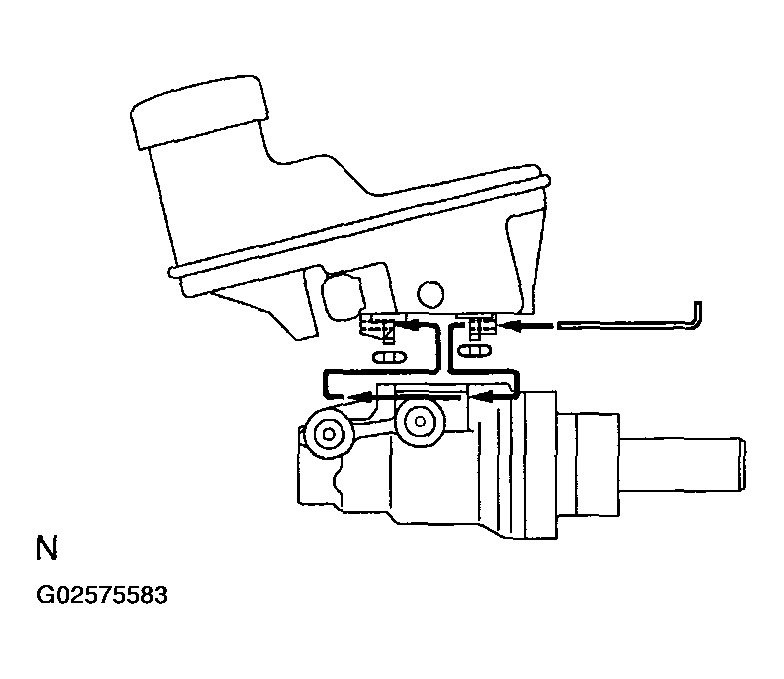

Fig 3: Removing Reservoir
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
