Abs Actuator: Removal

DISCONNECT CONNECTOR FROM ABS ACTUATOR ASSEMBLY
REMOVE BATTERY
REMOVE NUTS OF ENGINE ROOM RELAY BLOCK NO. 2 AND MOVE ENGINE ROOM RELAY BLOCK NO. 2 ASIDE
DISCONNECT BRAKE LINES
Using SST, disconnect the 6 brake lines from the ABS actuator assembly.

SST 09023-00100

Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)
REMOVE ABS ACTUATOR ASSEMBLY
Remove the 3 bolts and ABS actuator assembly.

Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)

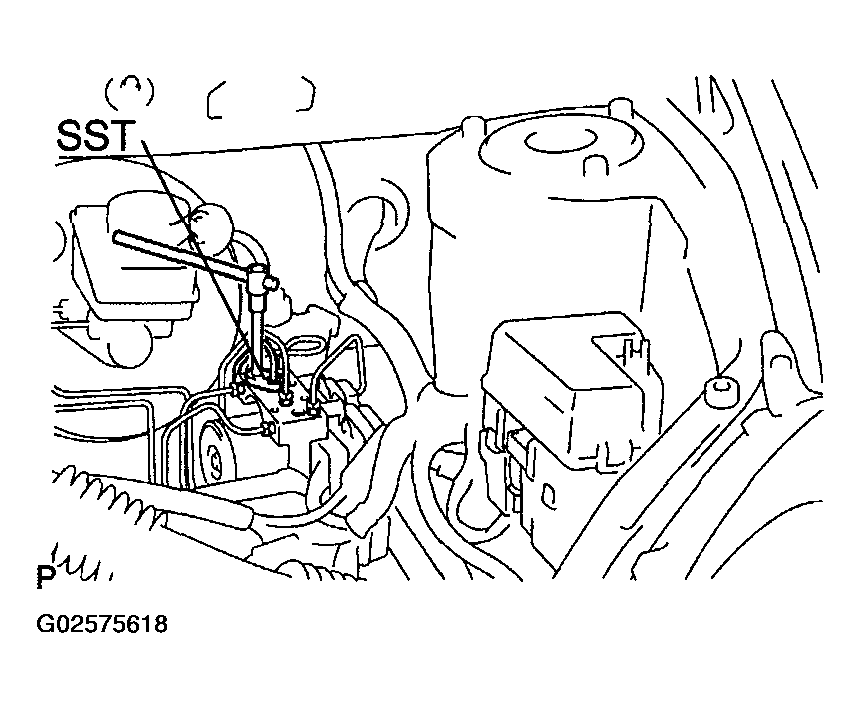

Fig 1: Removing Bolts And ABS Actuator Assembly Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ABS ACTUATOR
1. Remove the 3 nuts and ABS actuator from the actuator bracket.
  Torque: 4.7 N.m (48 kgf.cm, 42 in.lbf)
2. Remove the 3 holders from the ABS actuator.
REMOVE BOLT AND CLAMP FROM ABS ACTUATOR
Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)
