Abs Actuator: Components

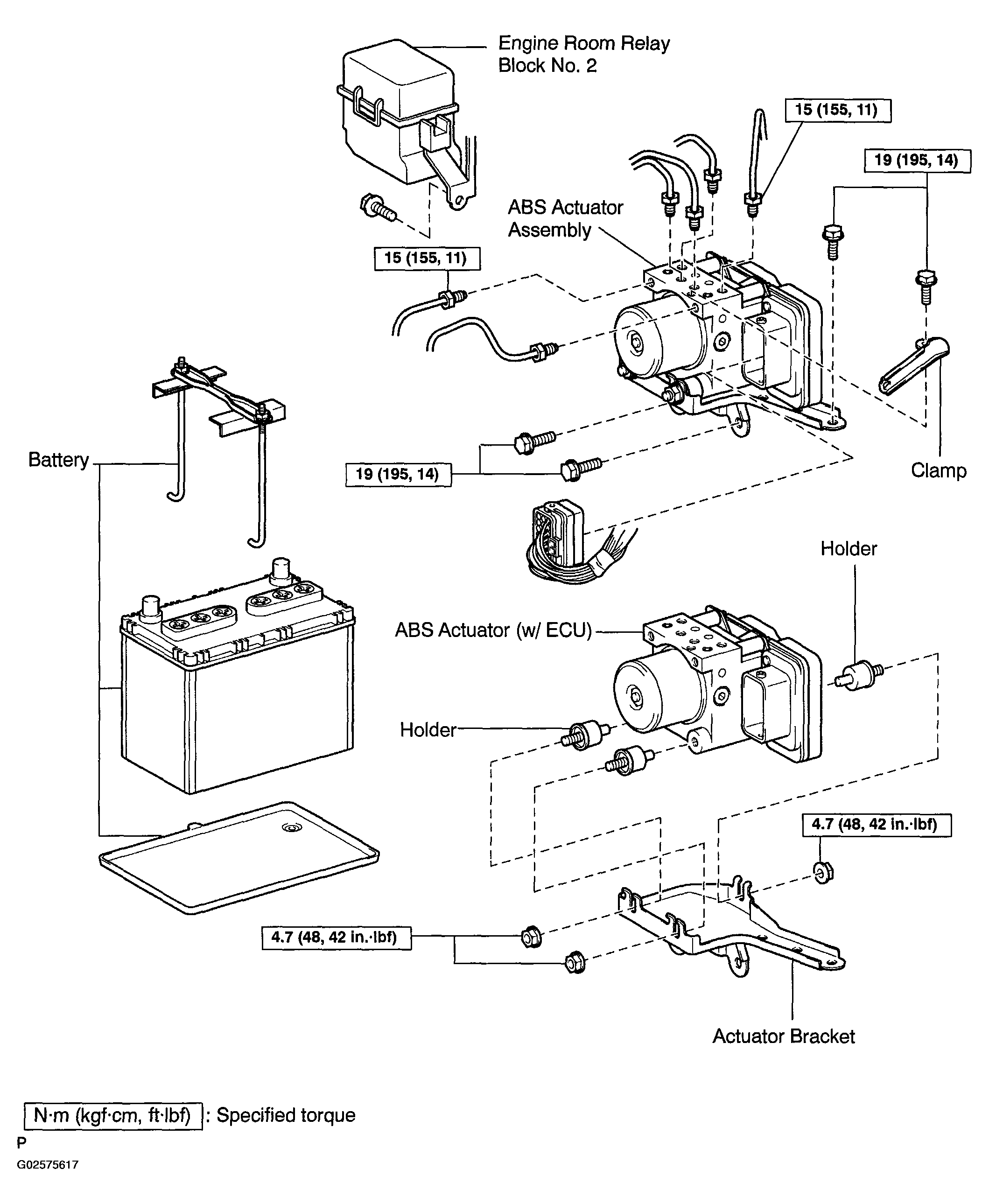

Fig 1: Removing Brake ABS Actuator Components

G02575617

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
