Rear Seat (Hatchback): Removal

  1. REMOVE SEATBACK ASSEMBLY
    1. Tilting the seatback assembly forward, remove the 2 clips that engages the seatback with the floor carpet.
      Fig 1: Removing Clip Of Seatback Assembly
      G02576702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Lift up the seatback cover.
    3. Remove the 2 bolts and seatback assembly.
    4. Remove the other using the same procedures described above.

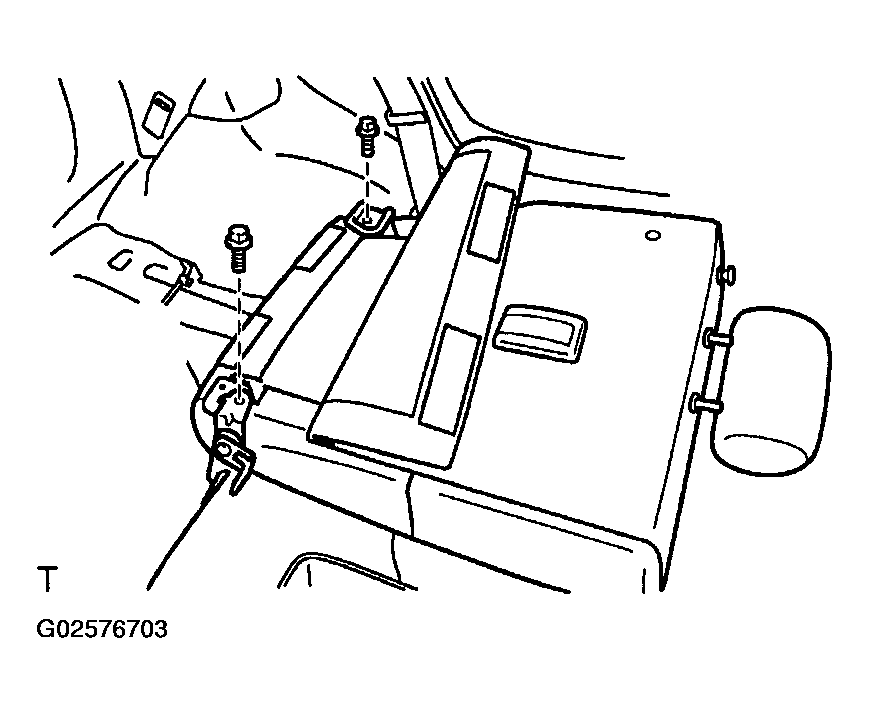

    Fig 2: Removing Bolts Of Seatback Assembly
    G02576703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SEAT CUSHION ASSEMBLY
    1. Remove the 2 bolts.
    2. Pull up the front portion of the seat cushion.
    3. Pass through the rear seat inner belts to remove the seat cushion assembly.
    4. Release the seat cushion wire from the center bracket and remove the seat cushion assembly.
    Fig 3: Removing Bolts Of Seat Cushion Assembly
    G02576704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR SEAT SIDE HINGE
    1. Remove the bolt and rear seat side hinge.
    2. Remove the other using the same procedures described above.
    Fig 4: Removing Bolt Of Rear Seat Side Hinge
    G02576705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE CHILD RESTRAINT ANCHOR BRACKET
    1. Remove the 4 bolts and child restraint anchor bracket.
    Fig 5: Removing Bolts Of Child Restraint Anchor Bracket
    G02576706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
