Luggage Compartment Door And Hinge (Sedan): Removal

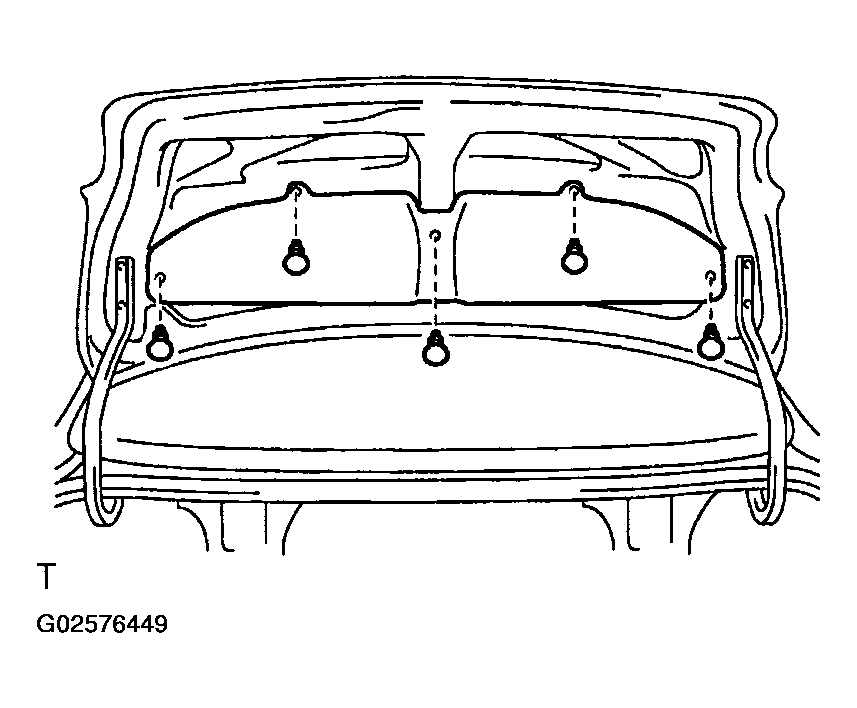

REMOVE LUGGAGE COMPARTMENT DOOR COVER
Remove the 5 clips and luggage compartment door cover.

Fig 1: Removing Clips Of Luggage Compartment Door Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE KEY CYLINDER
1. Disconnect the link.
2. Remove the 2 nuts and key cylinder.
Fig 2: Removing Nuts Of Key Cylinder
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY
1. Remove the 2 bolts and luggage compartment door lock assembly.
  Torque: 5.0 N.m (50 kgf.cm, 43 in.lbf)
2. Disconnect the cable.
REMOVE LUGGAGE COMPARTMENT DOOR
Remove the 4 bolts and door.

Torque: 8.0 N.m (85 kgf.cm, 74 in.lbf)
REMOVE LUGGAGE COMPARTMENT FLOOR MAT
REMOVE REAR FLOOR FINISH PLATE
Remove the 2 clips and rear floor finish plate.

Fig 3: Removing Bolts Of Luggage Compartment Door Lock Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

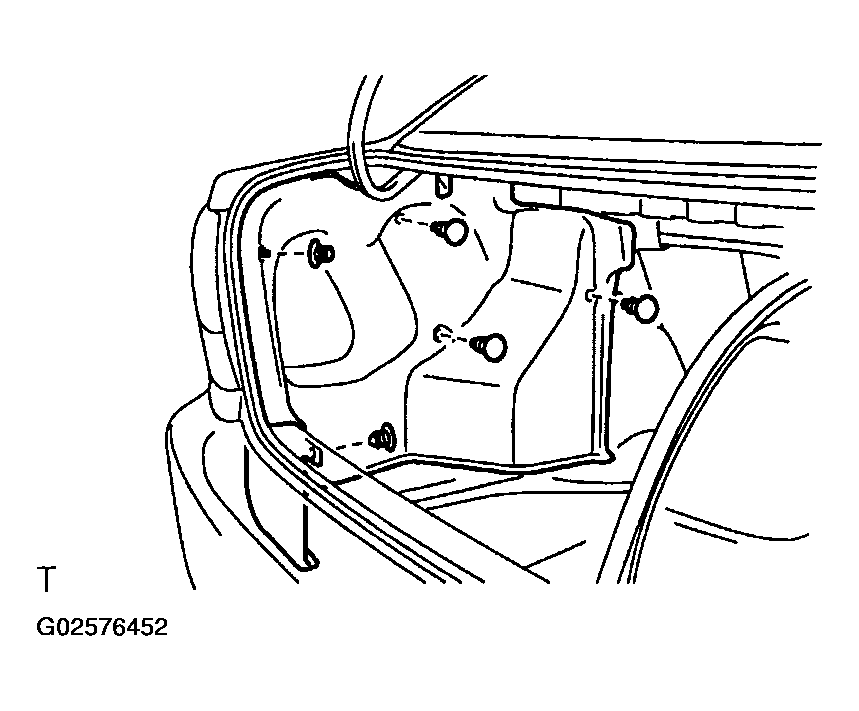

REMOVE LUGGAGE COMPARTMENT TRIM SIDE COVERS
1. Remove the 5 clips and luggage compartment trim side cover.
2. Remove the other using the same procedures described above in step (a).
Fig 4: Removing Clips Of Luggage Compartment Trim Side Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2-door vehicle:
REMOVE FRONT DOOR SCUFF PLATE
1. Insert a screwdriver between the front door scuff plate and body to pry the scuff plate out.
  NOTE: Tape the screwdriver tip before use.
2. Remove the other using the same procedures described above in step (a).
2-door vehicle:
REMOVE FRONT DOOR OPENING TRIMS

Remove the front door opening trims except the cowl side trim part.

Fig 5: Removing Front Door Scuff Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4-door vehicle:
REMOVE REAR DOOR SCUFF PLATE
1. Insert a screwdriver between the rear door scuff plate and body to pry the scuff plate.
  NOTE: Tape the screwdriver tip before use.
2. Remove the other using the same procedures described above in step (a).
4-door vehicle:
REMOVE REAR DOOR OPENING TRIMS
REMOVE REAR SEAT CUSHION (See REAR SEAT (SEDAN WITH BENCH TYPE) or REAR SEAT (SEDAN WITH SEPARATE TYPE) )
REMOVE REAR SEATBACK (See REAR SEAT (SEDAN WITH BENCH TYPE) or REAR SEAT (SEDAN WITH SEPARATE TYPE) )

Fig 6: Removing Rear Door Scuff Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2-door vehicle:

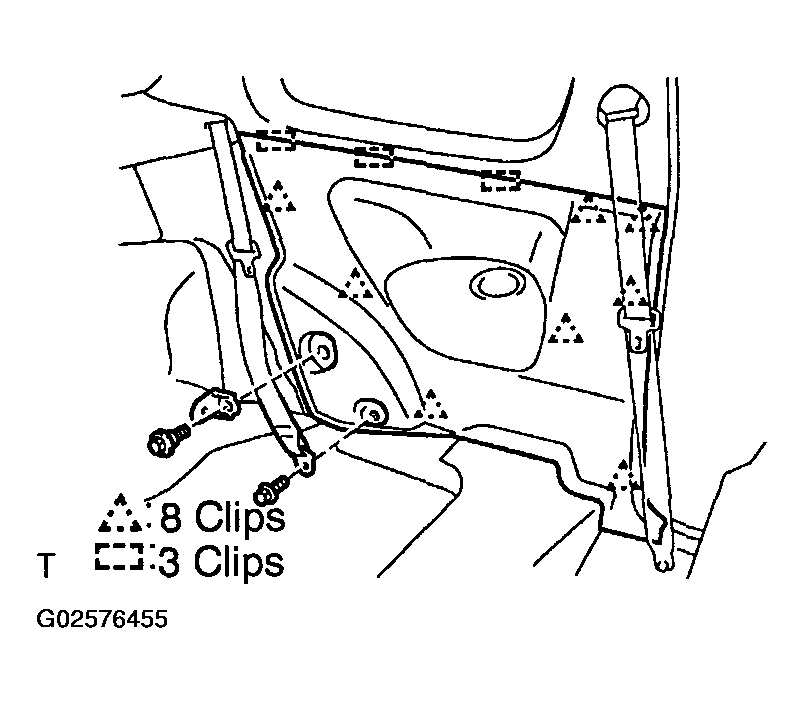

REMOVE QUARTER TRIM
1. Remove the bolt and rear seat outer belt floor anchor.
  Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)
2. w/ Split type rear seat:
  Remove the bolt and rear seatback hinge.

  Torque: 37 N.m (380 kgf.cm, 27 ft.lbf)
3. Insert a screwdriver between the quarter trim and body to pry the quarter trim out.

  Fig 7: Removing Bolt Of Rear Seat Outer Belt Floor Anchor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Tape the screwdriver tip before use.
4. Remove the other using the same procedures described above.
2-door vehicle:

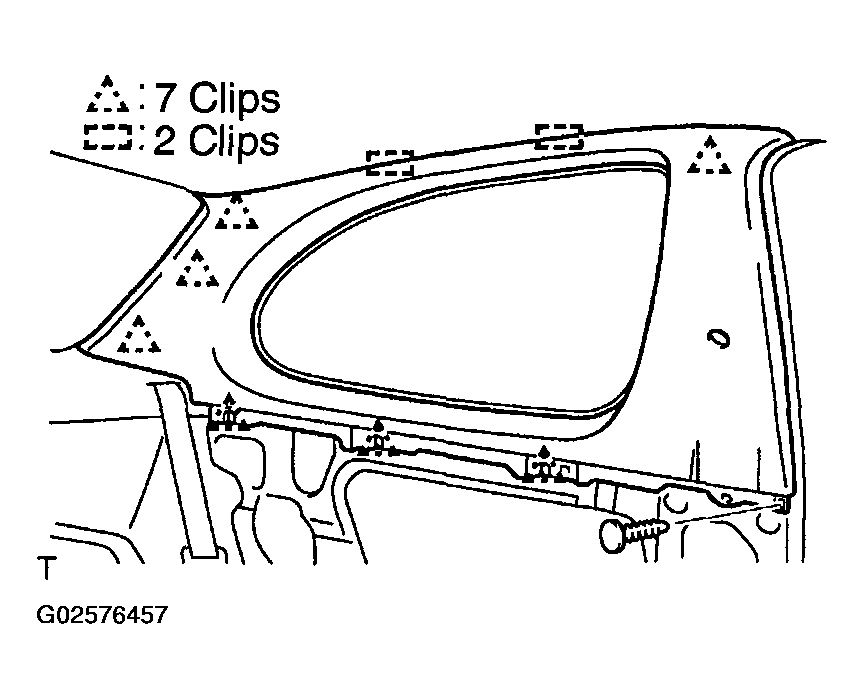

REMOVE ROOF SIDE INNER GARNISH
1. Using a screwdriver, open the seat belt shoulder anchor cover cap.
  NOTE: Tape the screwdriver tip before use.
2. Remove the bolt and front seat outer belt shoulder anchor.
  Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)

  Fig 8: Using A Screwdriver To Open Seat Belt Shoulder Anchor Cover Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the clips.
4. Insert a screwdriver between the roof side inner garnish and vehicle body to pry the garnish out.
  NOTE: Tape the screwdriver tip before use.
5. Remove the other using the same procedures described above.
Fig 9: Inserting Screwdriver Between Roof Side Inner Garnish And Vehicle Body
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4-Door vehicle:
REMOVE REAR SEAT SIDE GARNISH
1. Remove the bolt and rear seat outer belt floor anchor.
  Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)
2. w/ Split type rear seat:
  Remove the bolt and rear seatback hinge.

  Torque: 41 N.m (420 kgf.cm, 30 ft.lbf)
3. Using a screwdriver, remove the rear seat side garnish.
  NOTE: Tape the screwdriver tip before use.
4. Remove the other using the same procedures described above.
Fig 10: Removing Bolt Of Rear Seat Outer Belt Floor Anchor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4-door vehicle:
REMOVE ROOF SIDE INNER GARNISH
1. Remove the clips.
2. Insert a screwdriver between the roof side inner garnish and body to pry the garnish out.
  NOTE: Tape the screwdriver tip before use.
3. Use the same manner described above to the other side.
Fig 11: Removing Roof Side Inner Garnish
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HIGH-MOUNTED STOP LIGHT
1. Remove the high-mounted stop light, as shown in the illustration.
2. Disconnect the connector.
Fig 12: Removing High-Mounted Stop Light
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

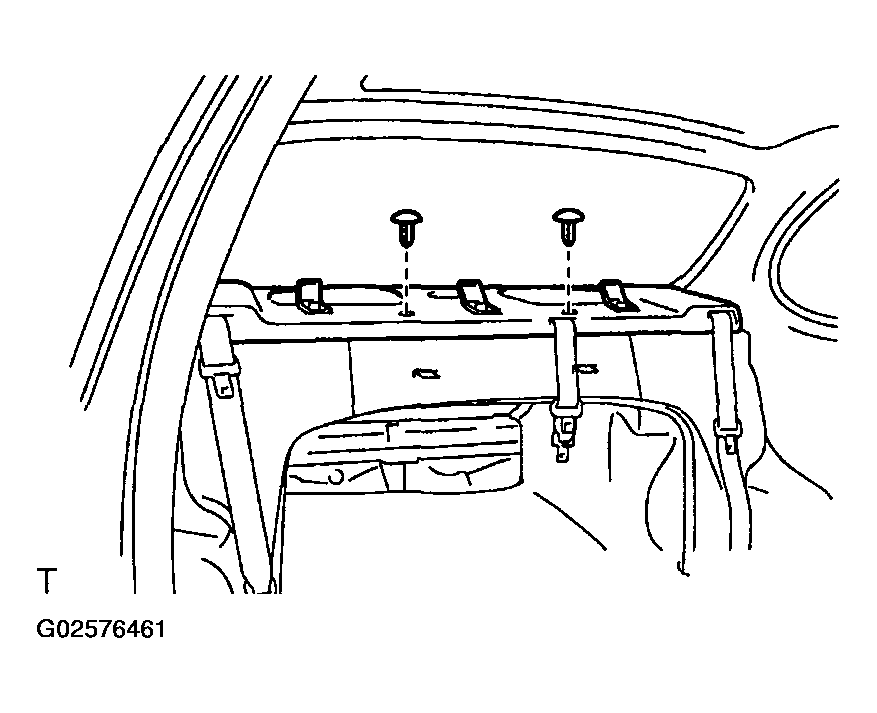

REMOVE PACKAGE TRAY TRIM PANEL
1. Remove the 2 clips.
2. Remove the rear seat belts through the cutout on the package tray trim.
3. Pull the package tray trim panel forward to remove it.
REMOVE PACKAGE TRAY TRIM SILENCER PAD

Fig 13: Removing Clip Of Package Tray Trim Panel
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TORSION BAR
1. Remove the torsion bars from the center bracket.

  Fig 14: Removing Torsion Bars From Center Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

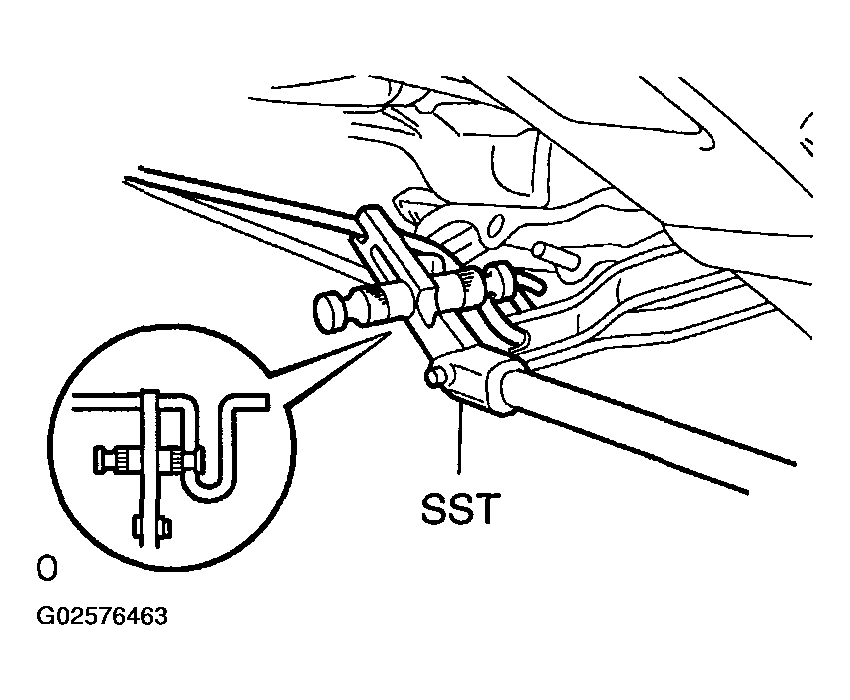

2. Install SST to the torsion bar on the hinge side.
  SST 09804-24010

  Fig 15: Installing SST To Torsion Bar On Hinge Side
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

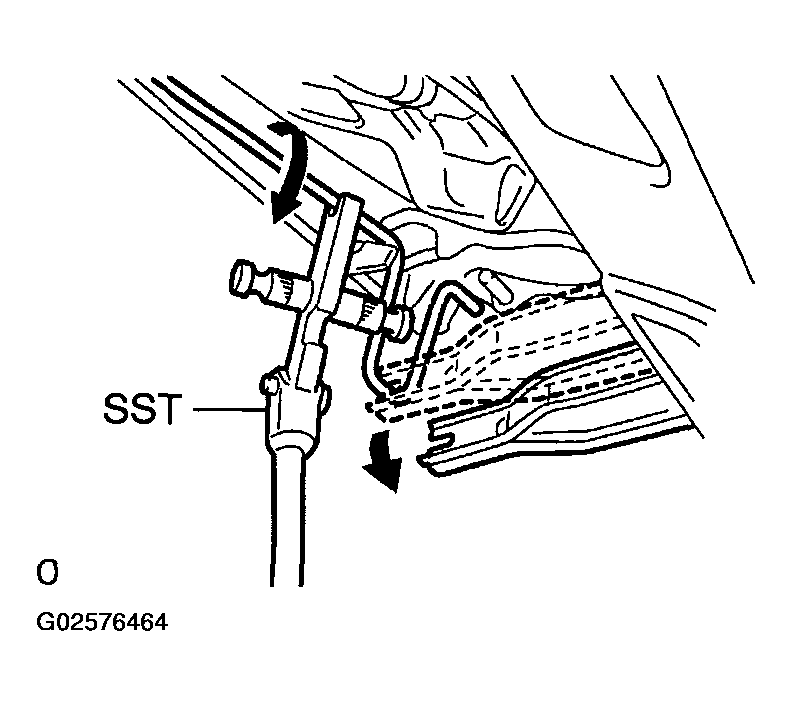

3. Push down on SST, and pull the luggage compartment door hinge from the torsion bar.
4. Slowly lift SST, and remove the torsion bar from the torsion bar bracket with SST.

  Fig 16: Pulling Luggage Compartment Door Hinge From Torsion Bar
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Disconnect the torsion bar from the bracket.
6. Remove the other using the same procedures described above.
REMOVE LUGGAGE COMPARTMENT DOOR HINGE
1. Remove the pin.
2. Remove the hinge.
3. Remove the other using the same procedures described above.
REMOVE LUGGAGE COMPARTMENT WEATHERSTRIP

Fig 17: Removing Luggage Compartment Door Hinge
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
