Luggage Compartment Door And Hinge (Sedan): Components

Fig 1: Identifying Components Of Luggage Compartment Door And Hinge (Sedan) (1 Of 2)
G02576447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

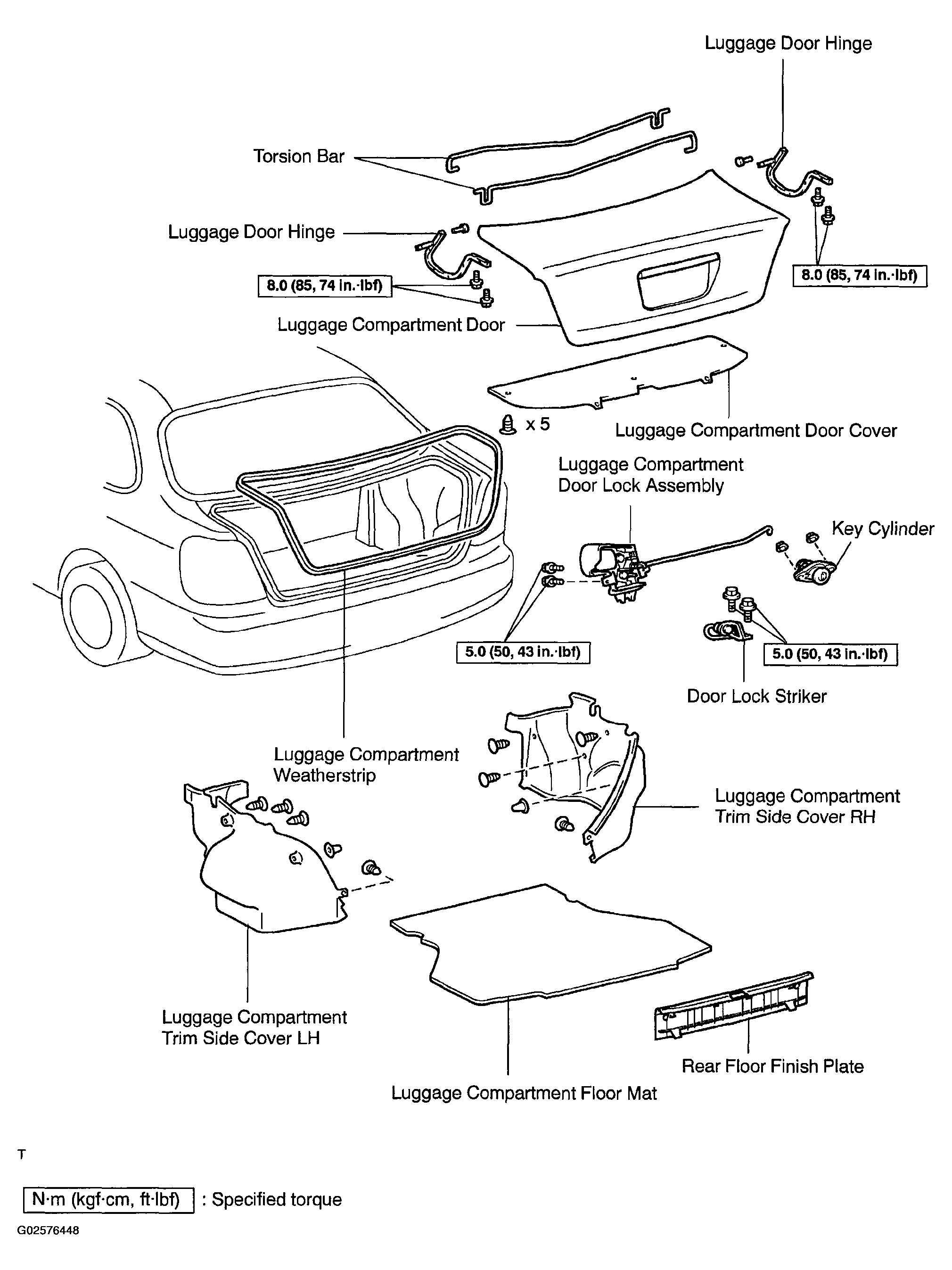

Fig 2: Identifying Components Of Luggage Compartment Door And Hinge (Sedan) (2 Of 2)
G02576448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
