Instrument Panel: Reassembly

NOTE: Never use airbag parts from another vehicle. When replacing parts, replace them with new parts.

When replacing instrument panel lower:
INSTALL NO. 1 BOX
1. Using a nipper, cut off the boss using a nipper to make the level of the surface equal to the No. 1 box.
  NOTE: Ensure that the cut surface is flush with the surface of the No. 1 box to prevent looseness.

  Fig 1: Cutting Off Boss Using A Nipper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the No. 1 box securely on the instrument panel with the tapping screw provided in the same packing.
NOTE: Use the same manner to instrument panel upper.
When reusing instrument panel lower:
INSTALL NO. 1 BOX

Install the No. 1 box to the instrument panel lower with the screw.
INSTALL NO. 1, NO. 2 AND NO. 3 HEATER TO REGISTER DUCT

Fig 2: Installing Box To Instrument Panel Lower With Screw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 AND NO. 2 SIDE DEFROSTER NOZZLE DUCT
INSTALL REGISTERS
INSTALL NO. 2 BOX
Install the No. 2 box with the 2 screws.
INSTALL DOOR
INSTALL CENTER BRACKET
Install the center bracket with the screw.

Fig 3: Installing Center Bracket With Screw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
1. Install the front passenger airbag assembly to the instrument panel.
2. Install the 2 nuts.
NOTE: If the front passenger airbag assembly has been dropped, or there are cracks, dents or other defects in the case or connector, replace the front passenger airbag assembly with a new one.

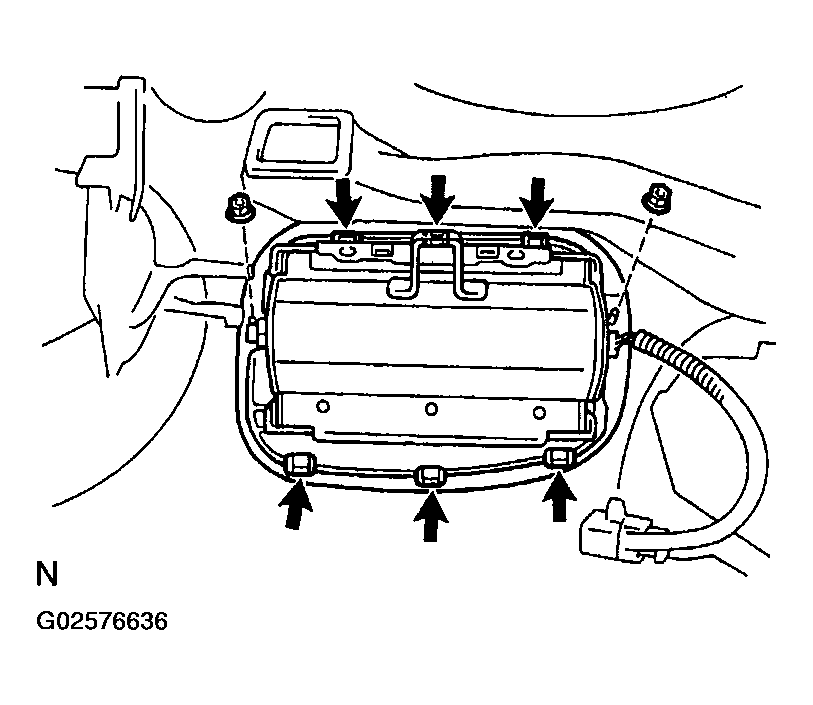

Fig 4: Locating Clip Of Front Passenger Airbag Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
