Instrument Panel: Components

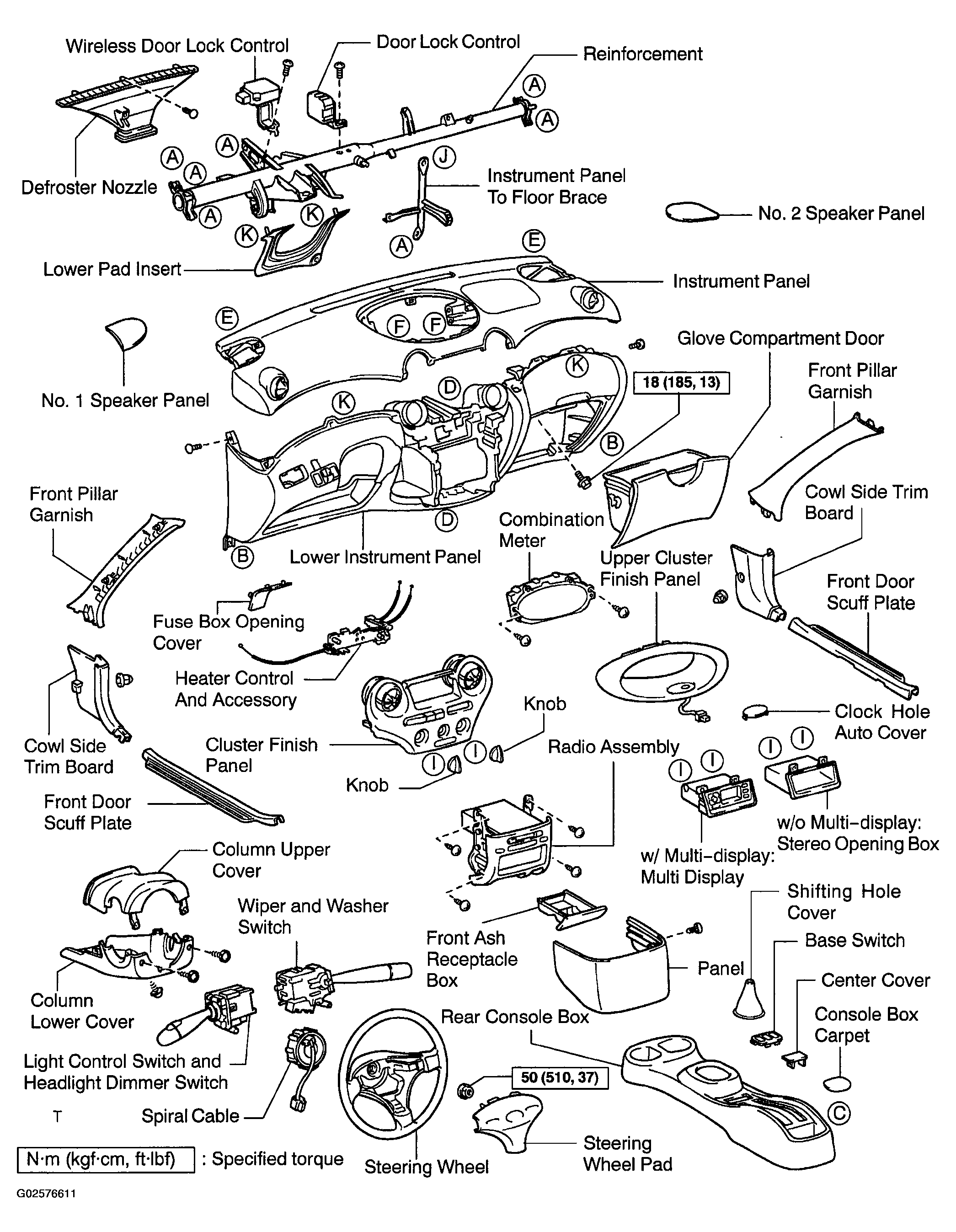

Fig 1: Identifying Components Of Instrument Panel (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

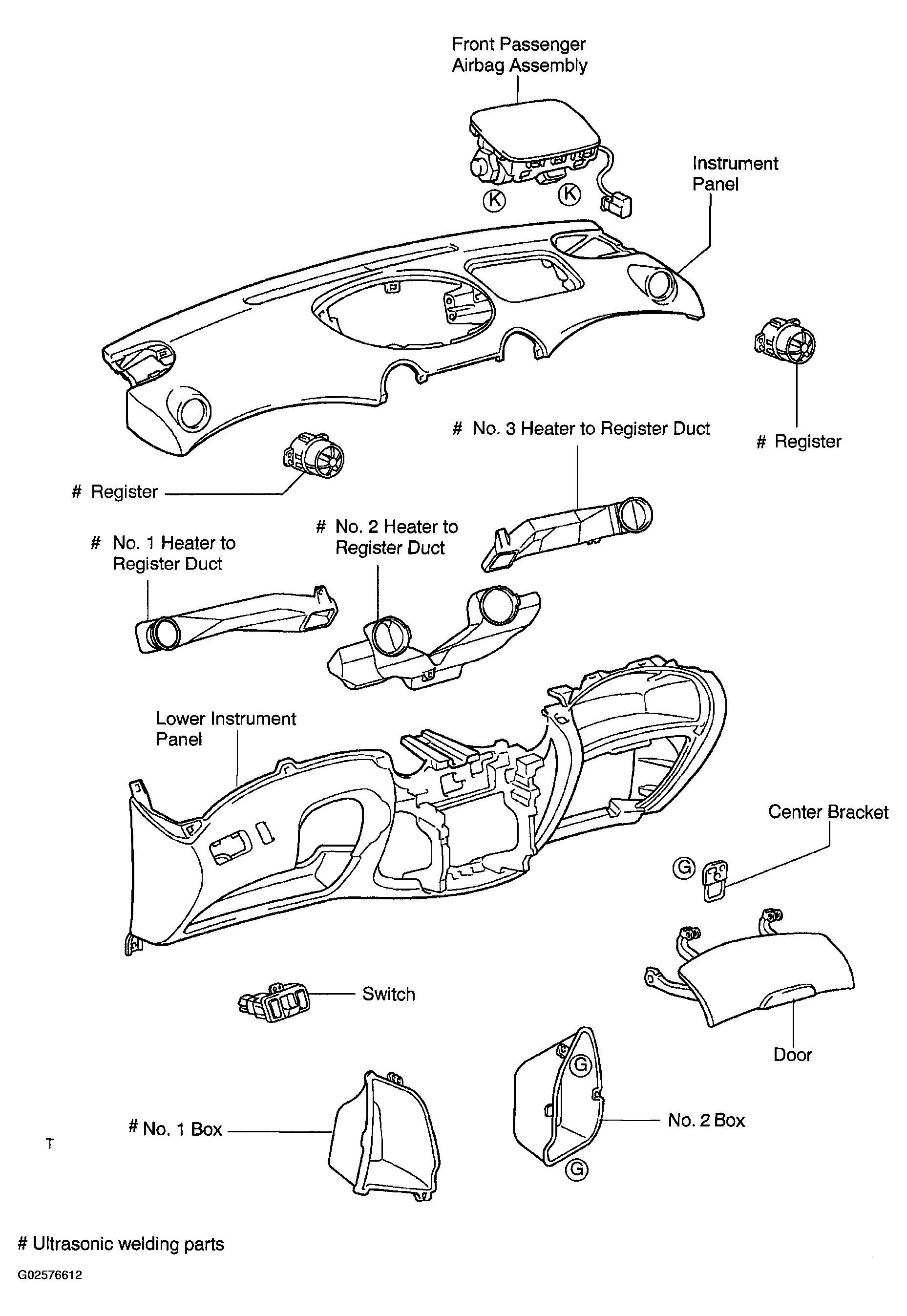

Fig 2: Identifying Components Of Instrument Panel (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

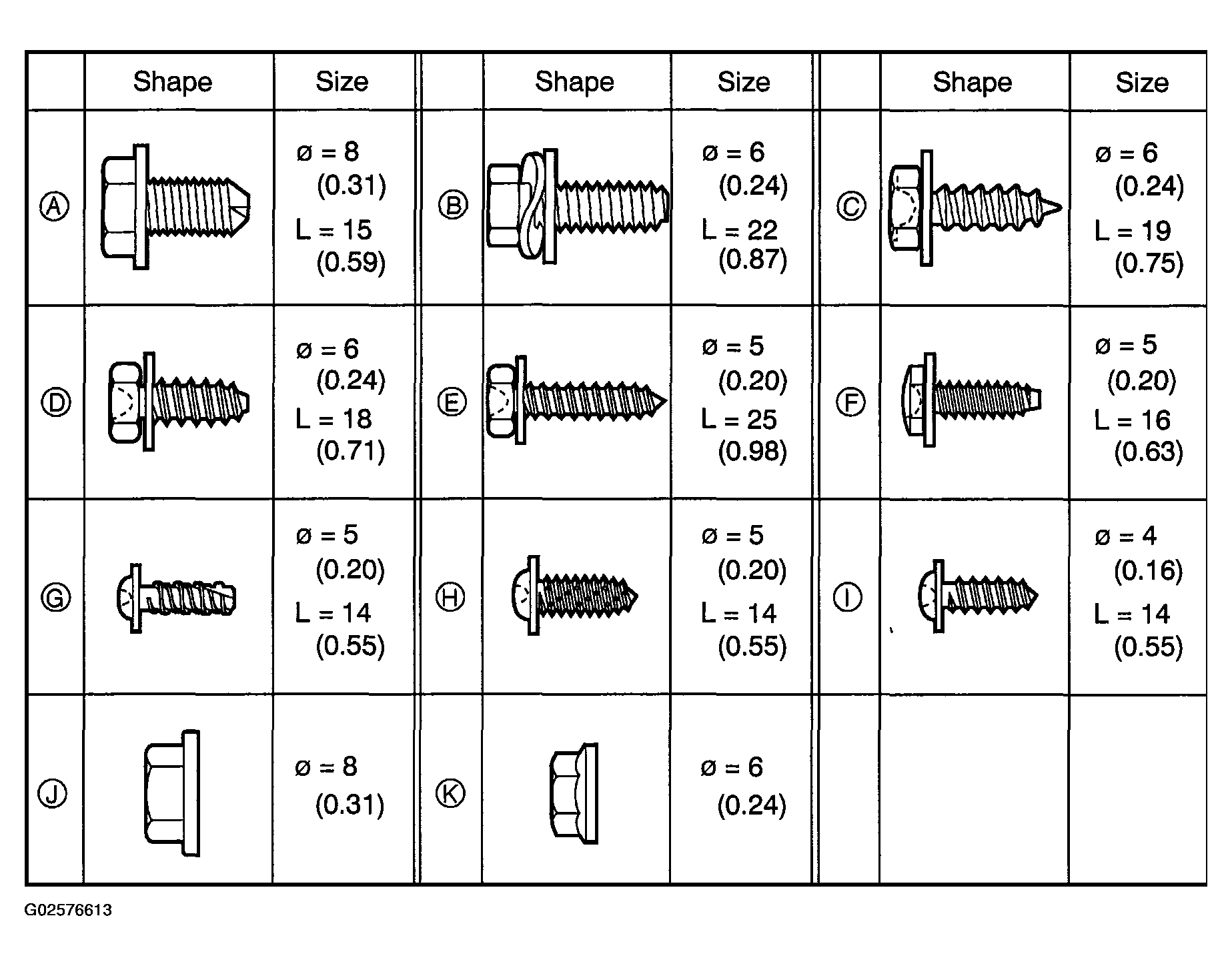

NOTE: Shapes and sizes of screws are indicated in the table below. The codes (A - K) correspond to those indicated on the previous pages.

Fig 3: Identifying Shapes And Sizes Of Screws
