Front Drive Shaft (2ZZ-GE): Overhaul

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. DRAIN MANUAL TRANSAXLE OIL

   Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)

2. REMOVE FRONT WHEEL
3. REMOVE ENGINE UNDER COVER LH
4. REMOVE FRONT AXLE HUB LH NUT
   1. Using SST and a hammer, unstake the staked part of the hub LH nut.

      SST 09930-00010

   2. While applying the brakes, remove the hub LH nut.

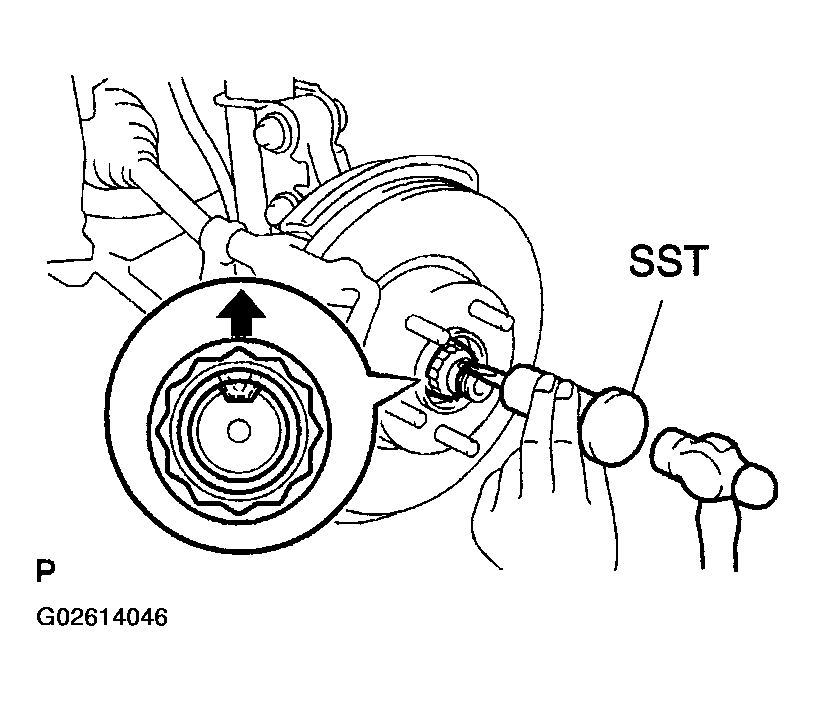

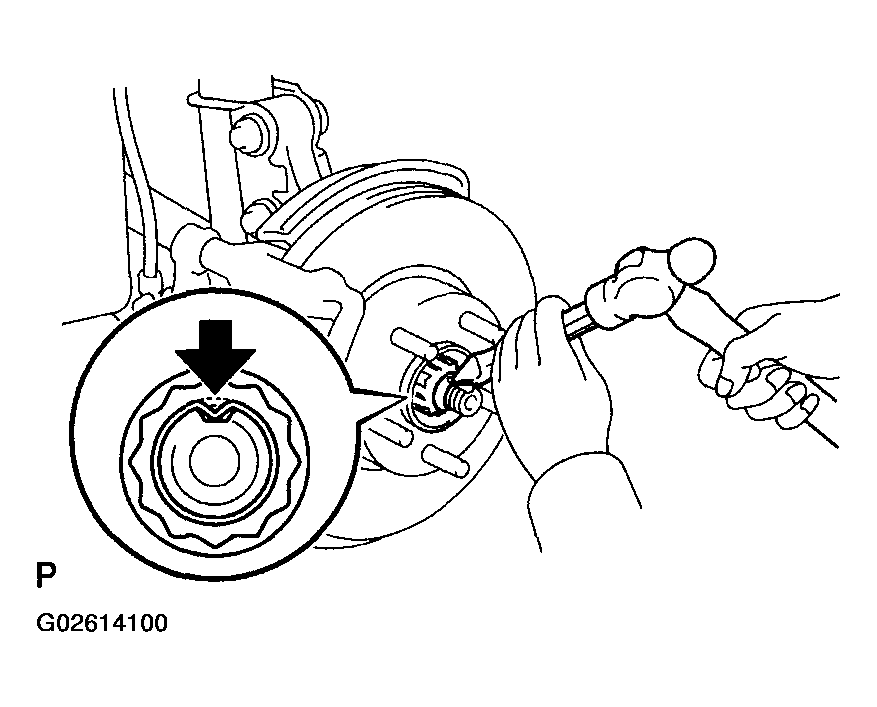

      Fig 1: Removing Hub LH Nut

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Loosen the staked part of the nut completely, otherwise the screw of the drive shaft may be damaged.
5. SEPARATE FRONT STABILIZER LINK ASSY LH
   1. Remove the nut and separate the front stabilizer link assy LH from the shock absorber assy front LH.

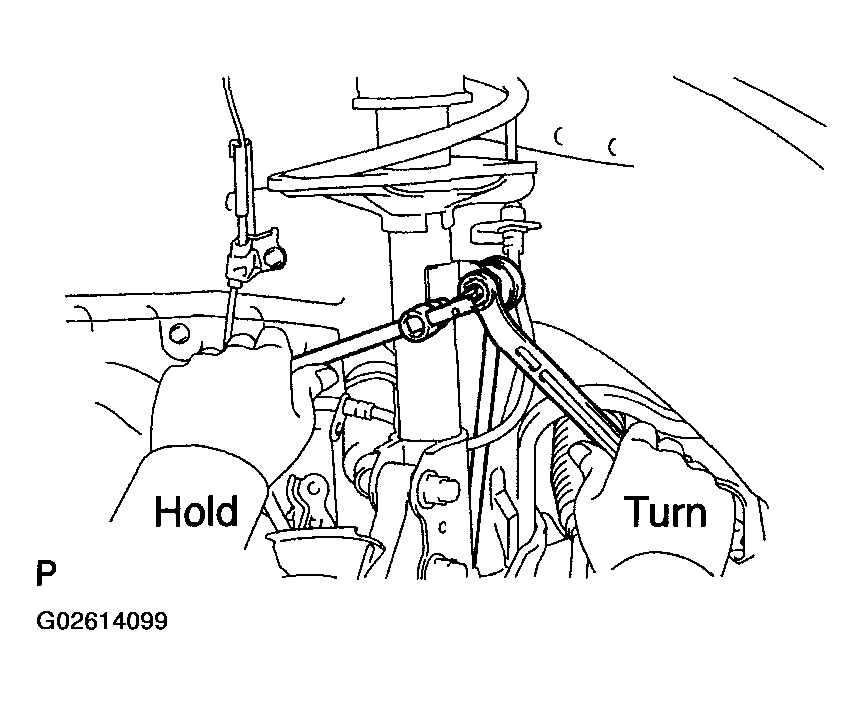

      Fig 2: Separating Front Stabilizer Link Assy LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   If the ball joint turns together with the nut, use a hexagon wrench (6 mm) to hold the stud.

6. SEPARATE SPEED SENSOR FRONT LH
   1. Remove the bolt, and separate the speed sensor front LH and flexible hose from the shock absorber assy front LH.

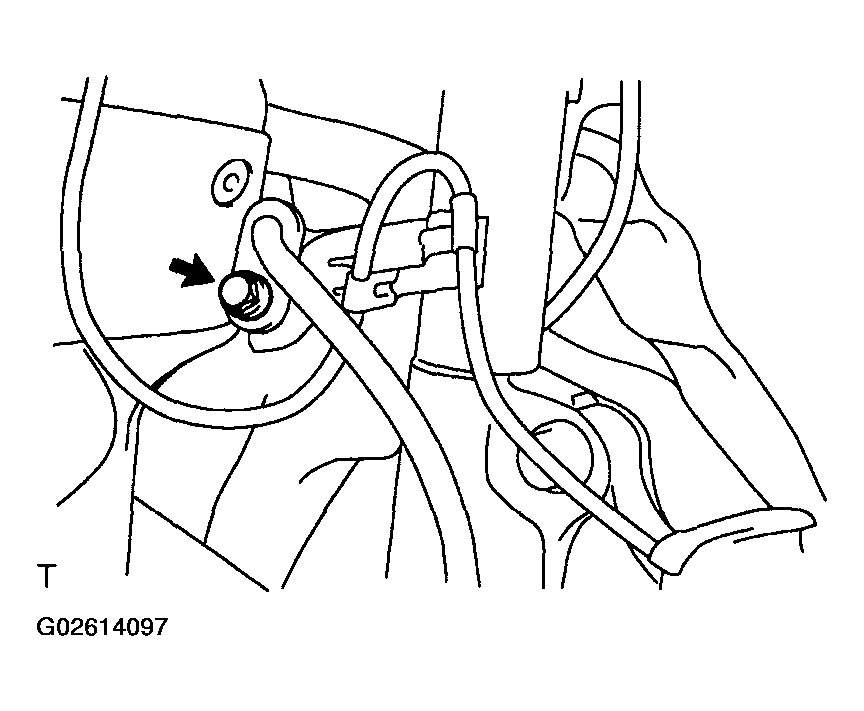

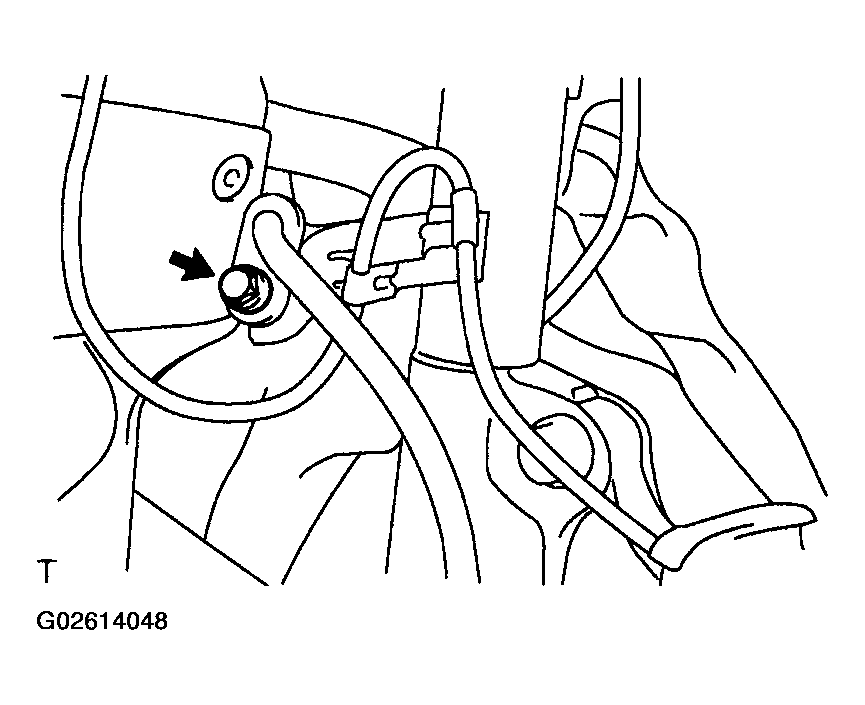

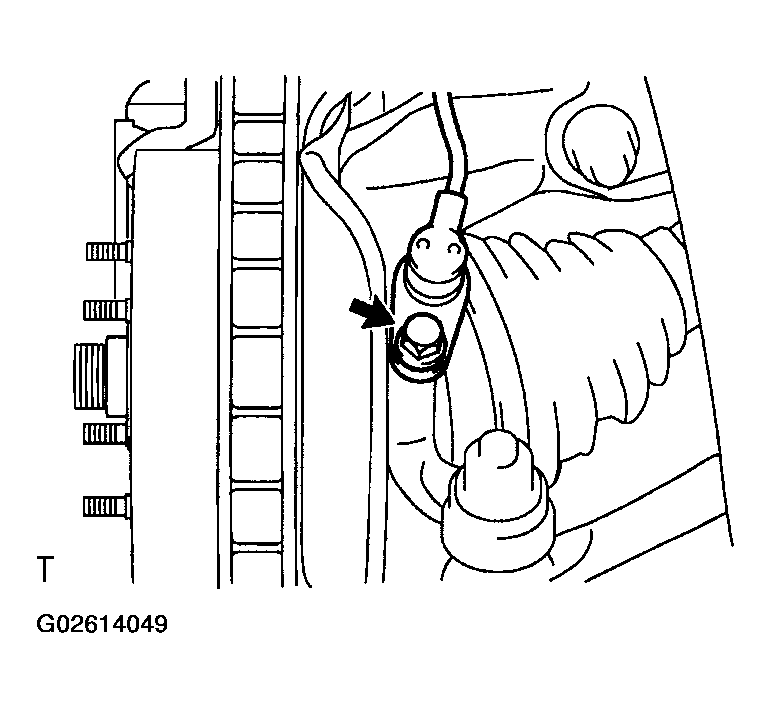

      Fig 3: Separating Speed Sensor Front LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the bolt, and separate the speed sensor front LH from the steering knuckle.

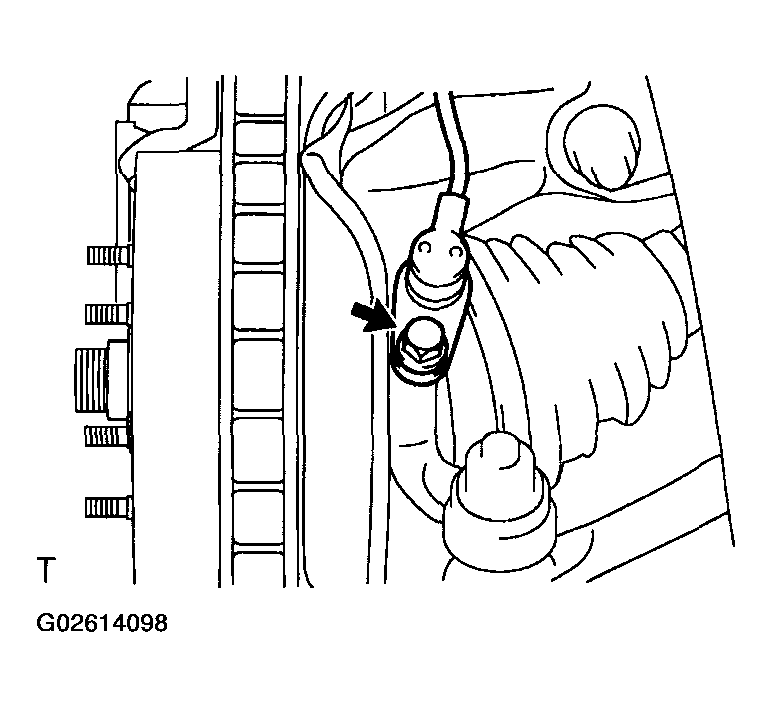

      Fig 4: Separating Speed Sensor Front LH From Steering Knuckle

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. SEPARATE TIE ROD END SUB-ASSY LH
   1. Remove the cotter pin and nut.
   2. Using SST, separate the tie rod end sub-assy LH from the steering knuckle.

      SST 09628-62011

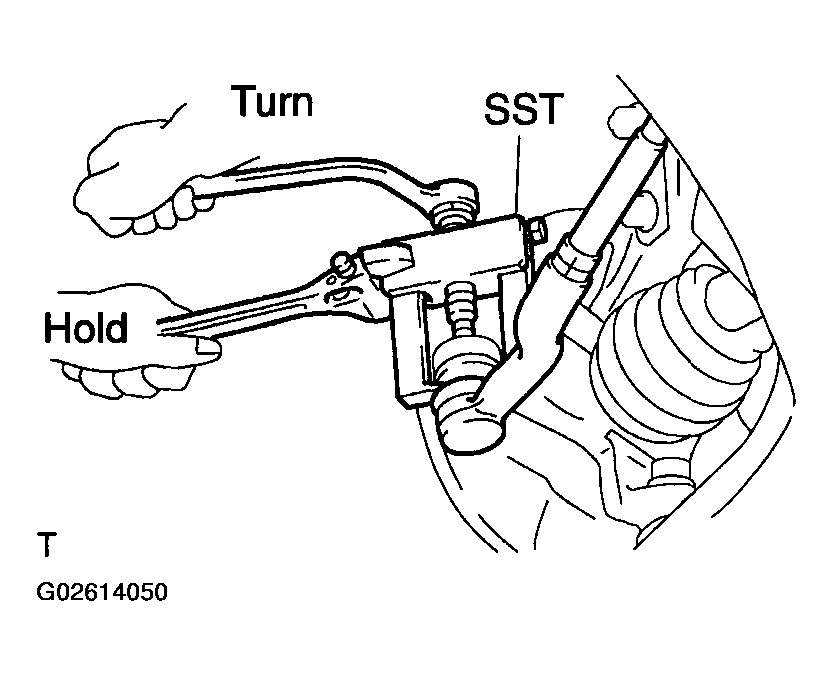

      Fig 5: Separating Tie Rod End Sub-Assy LH From Steering Knuckle

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. SEPARATE FRONT SUSPENSION ARM SUB-ASSY LOWER NO.1 LH
   1. Remove the bolt and 2 nuts, and separate the front suspension arm sub-assy lower No.1 LH from the lower ball joint.

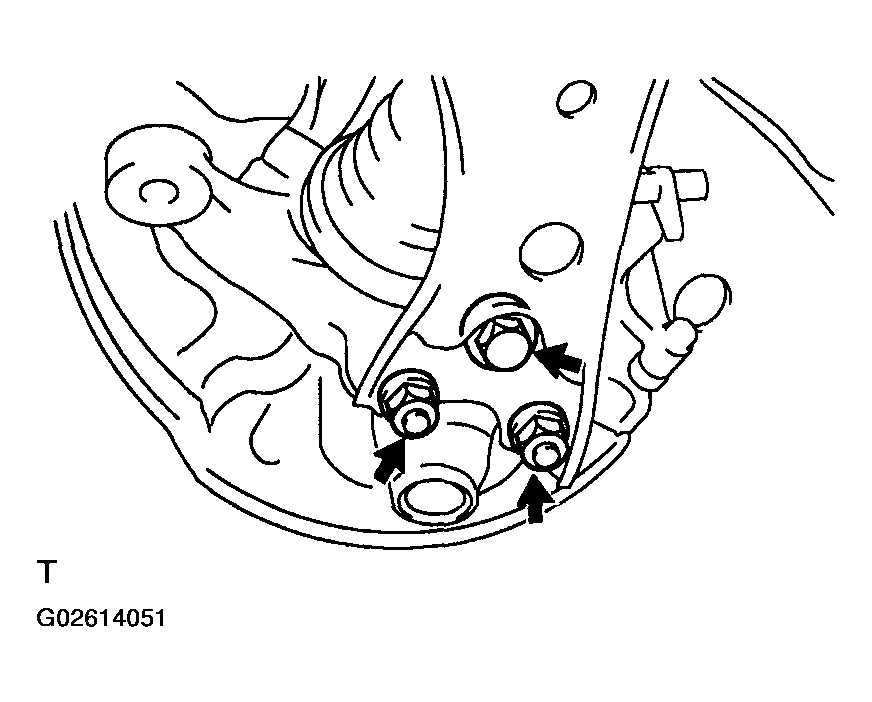

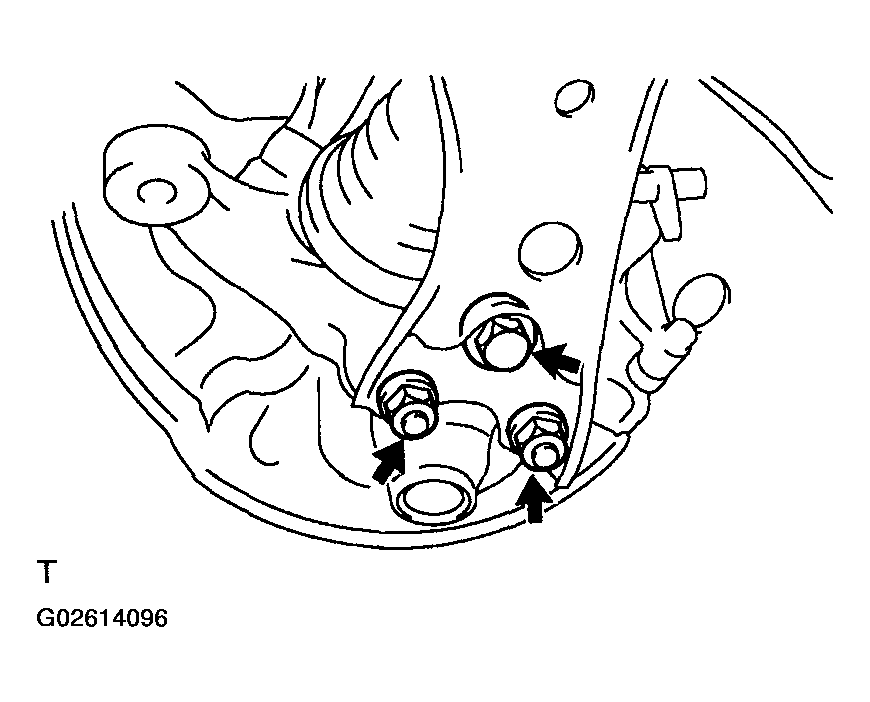

      Fig 6: Separating Front Suspension Arm Sub-Assy Lower No.1 LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. SEPARATE FRONT AXLE ASSY LH
   1. Using a plastic hammer, separate the front drive shaft assy LH from the front axle assy LH.
   NOTE: Be careful not to damage the boot and speed sensor rotor.

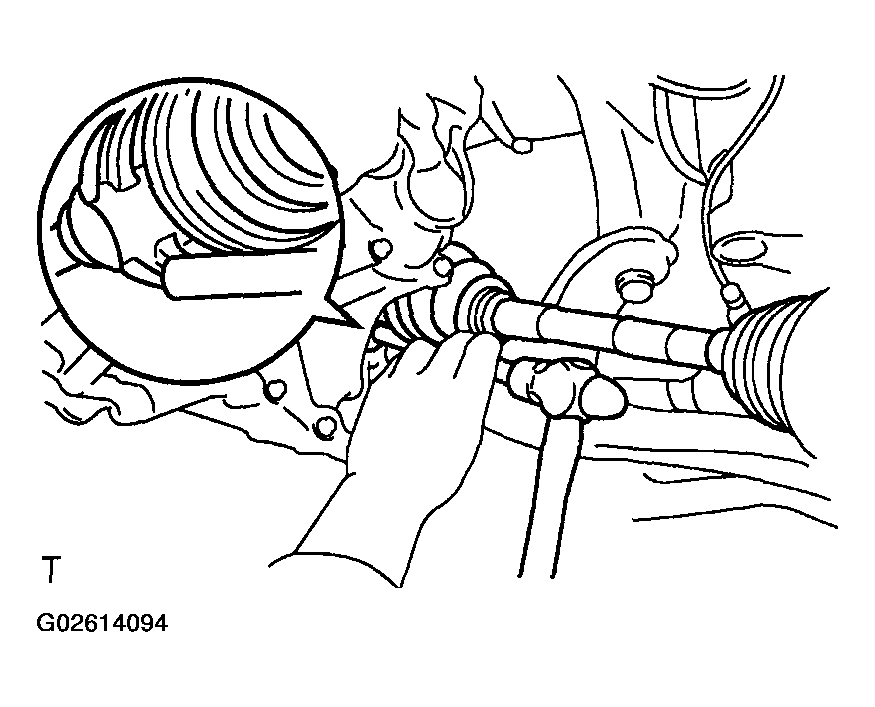

   Fig 7: Separating Front Drive Shaft Assy LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. REMOVE FRONT DRIVE SHAFT ASSY LH

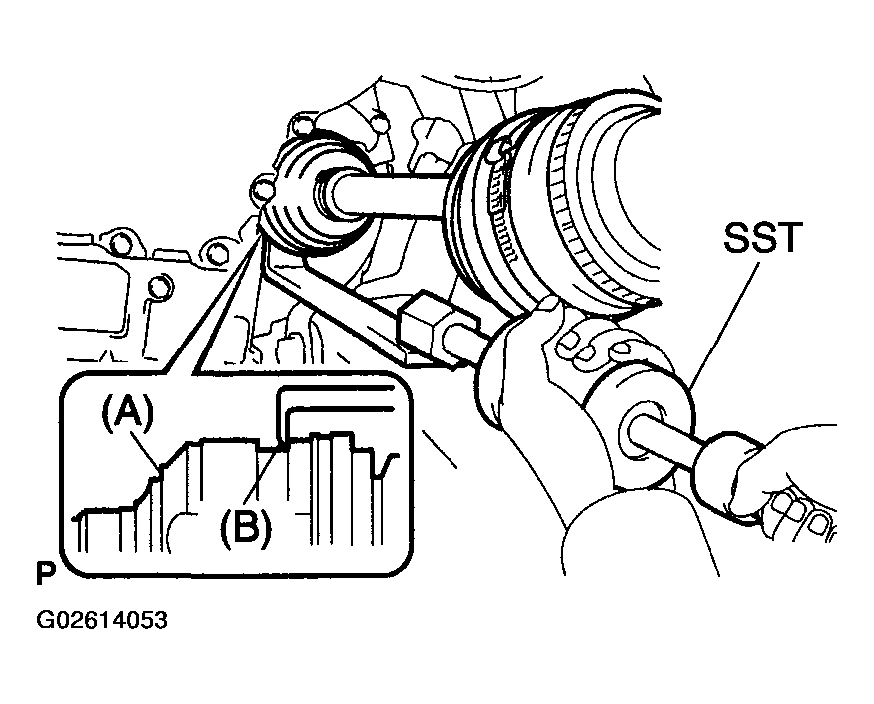

    1. Using SST, remove the front drive shaft assy LH.

       SST 09520-01010, 09520-24010 (09520-32040)

       Fig 8: Removing Front Drive Shaft Assy LH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: Be careful not to damage the dust cover, boot or oil seal.

    HINT:

    In case of not being able to remove the drive shaft by hooking the SST claw to the position (A) in the illustration, hook it to the position (B) and remove.

11. REMOVE FRONT DRIVE SHAFT ASSY RH
    1. Remove the 2 bearing lock bolts, and pull out the front drive shaft assy RH.
    NOTE: Be careful not to damage the dust cover, boot or oil seal.
    Fig 9: Pulling Out Front Drive Shaft Assy RH

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. FIX FRONT AXLE ASSY LH
    NOTE: The hub bearing could be damaged if it is subjected to the vehicle weight, such as when moving the vehicle with the drive shaft removed.

    Therefore, make sure to support the hub bearing with SST when the vehicle weight is applied.

    SST 09608-16042 (09608-02021, 09608-02041)

    Fig 10: Removing Drive Shaft

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. INSPECT FRONT DRIVE SHAFT ASSY LH
    1. Check that there is no remarkable play in the outboard joint.
    2. Check that the inboard joint slides smoothly in the thrust direction.
    3. Check that there is no remarkable play in the radial direction of the inboard joint.
       Fig 11: Inspecting Front Drive Shaft Assy LH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Check the boots for damage.
    NOTE: Keep the drive shaft assy level during inspection.
14. REMOVE FRONT AXLE INBOARD JOINT BOOT LH NO.2 CLAMP
    1. Using pliers, remove the inboard joint boot LH No.2 clamp, as shown in the illustration.
    Fig 12: Removing Inboard Joint Boot LH No.2 Clamp

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. REMOVE FRONT AXLE INBOARD JOINT BOOT LH CLAMP
    1. Remove the inboard joint boot LH clamp by the same procedures as for the inboard joint boot LH No.2 clamp.
16. SEPARATE INBOARD JOINT BOOT
    1. Separate the inboard joint boot from the inboard joint assy LH.
17. REMOVE FRONT DRIVE INBOARD JOINT ASSY LH
    1. Remove the old grease from the inboard joint sub-assy LH.
    2. Put matchmarks on the inboard joint sub-assy LH and outboard joint shaft assy.
       Fig 13: Putting Matchmarks On Inboard Joint Sub-Assy LH And Outboard Joint Shaft Assy

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       NOTE: Do not punch for the marks.
    3. Remove the inboard joint sub-assy LH from the outboard joint shaft assy.
    4. Using a snap ring expander, remove the inner LH shaft snap ring.
       Fig 14: Removing Inner LH Shaft Snap Ring

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Put matchmarks on the outboard joint shaft assy and tripod joint assy.
       Fig 15: Putting Matchmarks On Outboard Joint Shaft Assy And Tripod Joint Assy

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       NOTE: Do not punch for the marks.
    6. Using a brass bar and a hammer, remove the tripod joint assy from the outboard joint shaft assy.
       NOTE: Do not tap the roller.
    7. Remove the inboard joint boot LH No.2 clamp, inboard joint boot and inboard joint boot LH clamp.
18. REMOVE DRIVE SHAFT DAMPER

    HINT:

    Perform the procedure below only when disassembling the RH side.

    1. Using pliers, remove the damper clamp, as shown in the illustration.
    2. Remove the drive shaft damper.
       Fig 16: Removing Drive Shaft Damper

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
19. REMOVE FRONT AXLE OUTBOARD JOINT BOOT LH NO.2 CLAMP
    1. Using pliers, remove the outboard joint boot LH No.2 clamp, as shown in the illustration.
    Fig 17: Removing Outboard Joint Boot LH No.2 Clamp

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
20. REMOVE FRONT AXLE OUTBOARD JOINT BOOT LH CLAMP
    1. Remove the outboard joint boot LH clamp by the same procedures as for the outboard joint boot LH No.2 clamp.
21. REMOVE OUTBOARD JOINT BOOT
    1. Remove the outboard joint boot from the outboard joint shaft.
    2. Remove the old grease from the outboard joint.
22. REMOVE FRONT DRIVE SHAFT LH HOLE SNAP RING
    1. Using a screwdriver, remove the LH hole snap ring.
    Fig 18: Removing LH Hole Snap Ring

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
23. REMOVE FRONT DRIVE SHAFT DUST COVER LH
    1. Using SST and a press, remove the dust cover LH.

       SST 09950-00020

    NOTE: Be careful not to drop the inboard joint.

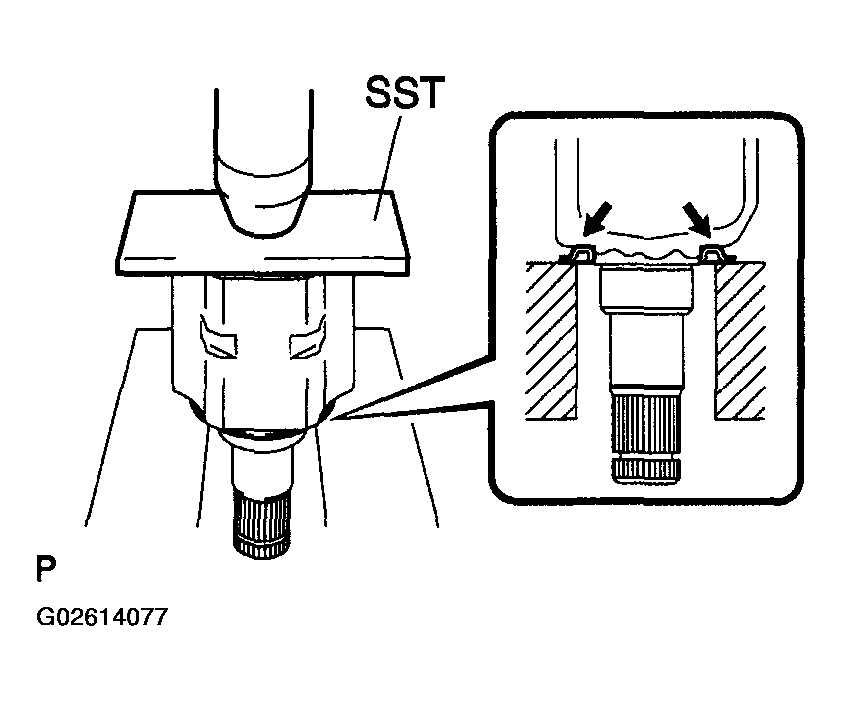

    Fig 19: Removing Dust Cover LH

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
24. REMOVE FRONT DRIVE SHAFT DUST COVER RH
    1. Using a press, remove the dust cover RH.
    NOTE: Be careful not to drop the inboard joint.
    Fig 20: Removing Dust Cover RH

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
25. REMOVE DRIVE SHAFT BEARING CASE SUB ASSY SNAP RING (RH DRIVE SHAFT)
    1. Using a screwdriver, remove the drive shaft bearing snap ring.
    Fig 21: Removing Drive Shaft Bearing Snap Ring

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
26. REMOVE DRIVE SHAFT BEARING CASE SUB ASSY (RH DRIVE SHAFT)
    1. Using a press, remove the bearing case sub-assy.
       Fig 22: Removing Bearing Case Sub-Assy

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       NOTE: Be careful not to drop the inboard joint.
    2. Remove the straight pin.
27. REMOVE FRONT DRIVE SHAFT DUST COVER (RH DRIVE SHAFT)
    1. Using SST and a press, remove the dust cover.

       SST 09950-00020

    NOTE: Be careful not to drop the inboard joint.
    Fig 23: Removing Dust Cover

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
28. REMOVE FRONT DRIVE SHAFT BEARING (RH DRIVE SHAFT)
    1. Using a snap ring expander, remove the inner RH shaft snap ring.
       Fig 24: Removing Inner RH Shaft Snap Ring

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST and a press, remove the drive shaft bearing. SST 09527-21011
       NOTE: Be careful not to drop the inboard joint.
    3. Remove the drive shaft bearing snap ring.
       Fig 25: Removing Drive Shaft Bearing Snap Ring

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
29. INSTALL FRONT DRIVE SHAFT BEARING (RH DRIVE SHAFT)
    1. Using SST and a press, install a new drive shaft bearing. SST 09950-60010 (09951-00650), 09950-70010 (09951-07100)
    Fig 26: Installing Drive Shaft Bearing

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
30. INSTALL DRIVE SHAFT BEARING CASE SUB ASSY SNAP RING (RH DRIVE SHAFT)
    1. Using a screwdriver, install a new drive shaft bearing snap ring.
    Fig 27: Installing Drive Shaft Bearing Snap Ring

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
31. INSTALL DRIVE SHAFT BEARING CASE SUB ASSY (RH DRIVE SHAFT)
    1. Using SST and a press, install the bearing case sub-assy to the inboard joint.

       SST 09527-10011, 09710-04081

       Fig 28: Installing Bearing Case Sub-Assy To Inboard Joint

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a snap ring expander, install a new inner RH shaft snap ring.
    3. Install the straight pin.
    Fig 29: Installing Straight Pin

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
32. INSTALL FRONT DRIVE SHAFT DUST COVER (RH DRIVE SHAFT)

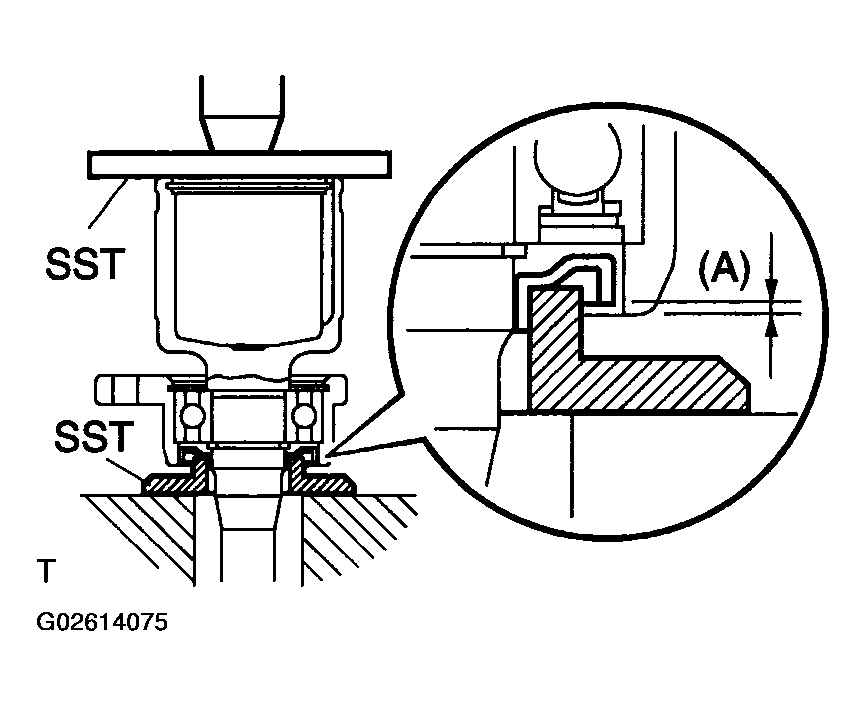

    1. Using SST and a press, install a new dust cover until the distance (A) from the tip of the bearing case sub-assy to the dust cover reaches the specification, as shown in the illustration.

       SST 09726-40010, 09527-10011

       Distance (A): 1.0 mm (0.039 in.)

       Fig 30: Installing Dust Cover

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    • Dust cover should be installed completely.
    • Be careful not to damage the dust cover.
33. INSTALL FRONT DRIVE SHAFT DUST COVER RH
    1. Using SST and a press, install a new dust cover RH until the distance (A) from the tip of center drive shaft to the dust cover RH reaches the specification, as shown in the illustration.

       SST 09527-10011

       Distance (A): 86.0 to 87.0 mm (3.386 to 3.425 in.)

       Fig 31: Installing Dust Cover RH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    • Dust cover should be installed completely.
    • Be careful not to damage the dust cover.
34. INSTALL FRONT DRIVE SHAFT DUST COVER LH
    1. Using SST and a press, install a new dust cover LH as shown in the illustration.

       SST 09527-10011

    NOTE:

    • Dust cover should be installed completely.
    • Be careful not to damage the dust cover.
    Fig 32: Installing Dust Cover LH

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
35. INSTALL FRONT DRIVE SHAFT LH HOLE SNAP RING
    1. Install a new LH hole snap ring.
36. INSTALL OUTBOARD JOINT BOOT

    HINT:

    Before installing the boot, wrap the spline of the drive shaft with vinyl tape to prevent the boot from being damaged.

    1. Install new parts to the outboard joint shaft assy in the following order.
       1. Outboard joint boot LH No.2 clamp
       2. Outboard joint boot
       3. Outboard joint boot LH clamp
       Fig 33: Installing Outboard Joint Boot

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pack the outboard joint shaft and boot with grease in the boot kit.

       Grease capacity: 152 to 162 g (5.4 to 5.7 oz.)

37. INSTALL FRONT AXLE OUTBOARD JOINT BOOT LH NO.2 CLAMP
    1. Mount the drive shaft in a soft vise.
    2. Secure the clamp onto the boot.
    3. Place SST onto the clamp.

       SST 09521-24010

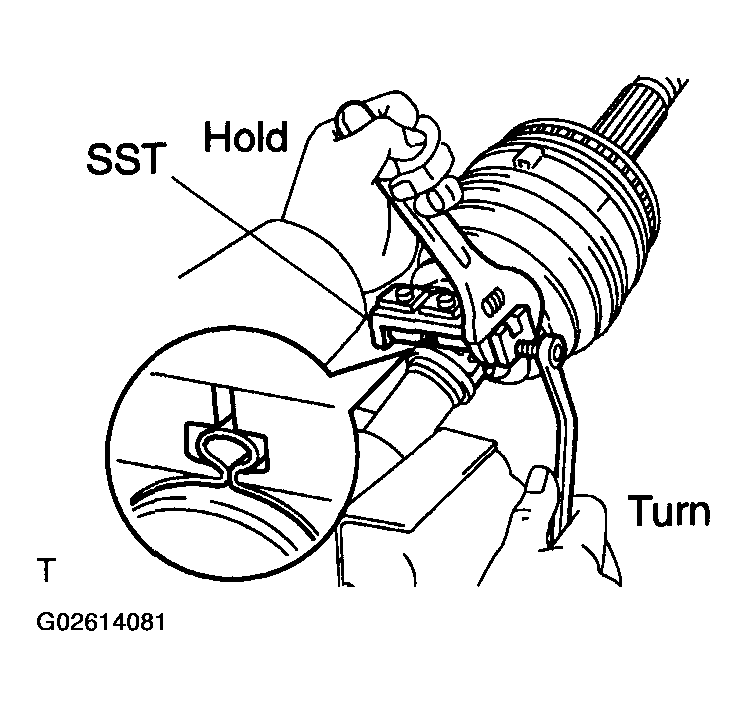

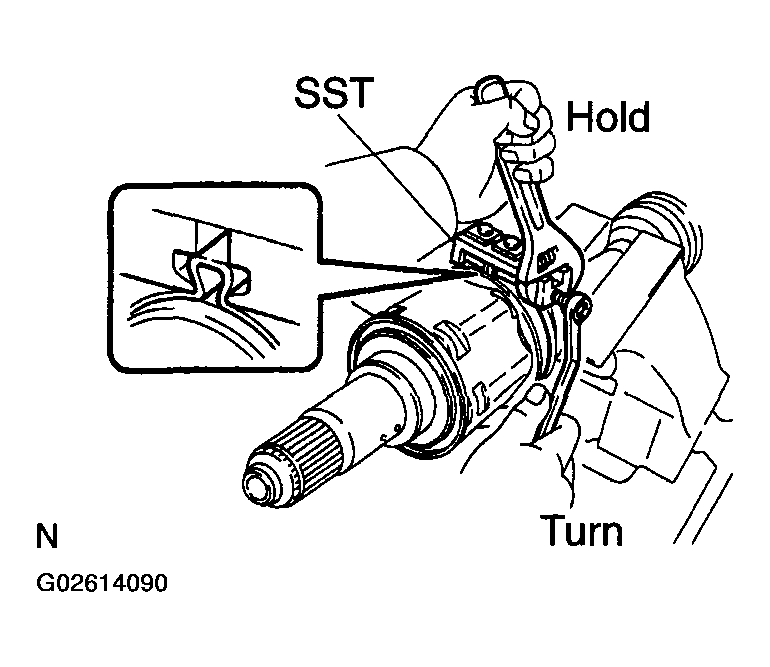

       Fig 34: Placing SST Onto Clamp

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Tighten the SST so that the clamp is pinched.
       NOTE: Do not overtighten the SST.
    5. Using SST, measure the clearance of the clamp. SST 09240-00020 (09242-00080)

       Clearance: 0.8 mm (0.032 in.) or less

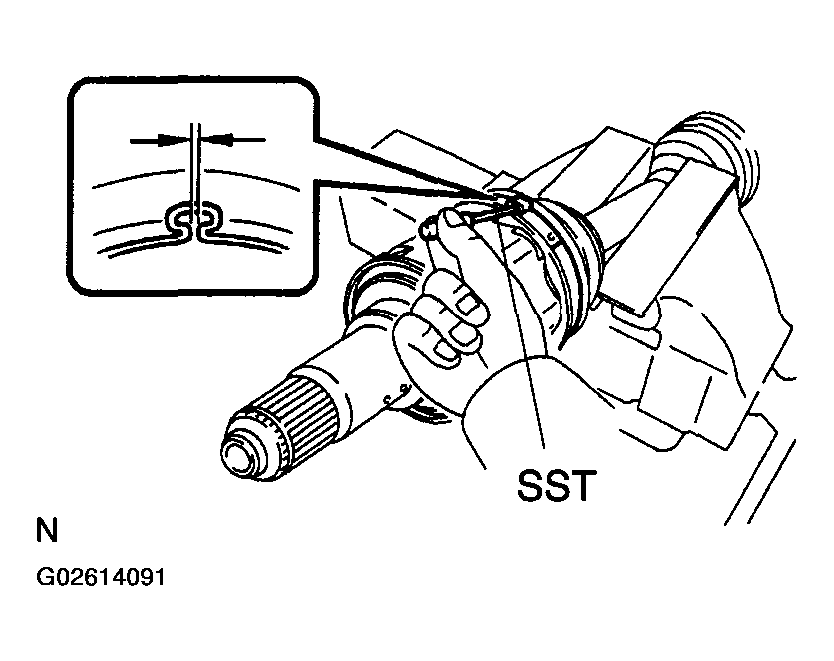

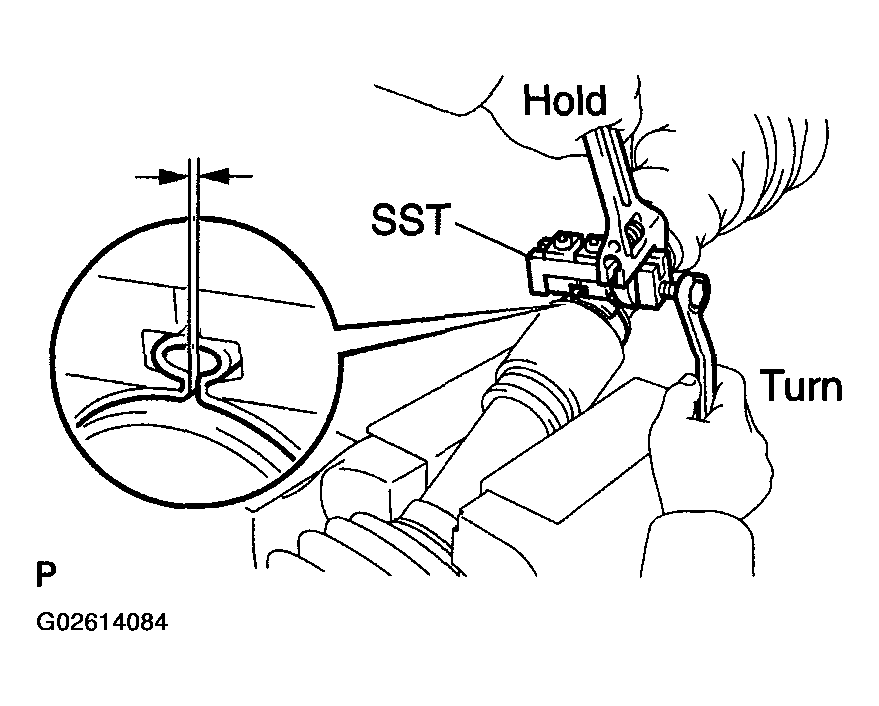

       Fig 35: Measuring Clearance Of Clamp

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: When the measured value exceeds the specified value, re-tighten the clamp.
38. INSTALL FRONT AXLE OUTBOARD JOINT BOOT LH CLAMP
    1. Mount the drive shaft in a soft vise.
    2. Secure the clamp onto the boot.
    3. Place SST onto the clamp. SST 09521-24010
       Fig 36: Placing SST Onto Clamp

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Tighten the SST so that the clamp is pinched.
       NOTE: Do not overtighten the SST.
    5. Using SST, measure the clearance of the clamp. SST 09240-00020 (09242-00080)

       Clearance: 0.8 mm (0.032 in.) or less

       NOTE: When the measured value exceeds the specified value, re-tighten the clamp.
       Fig 37: Measuring Clearance Of Clamp

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
39. INSTALL DRIVE SHAFT DAMPER

    HINT:

    Perform the procedure below only when reassembling the RH side.

    1. Set the distance (A), as described below.

       Distance (A): 198 to 202 mm (7.795 to 7.953 in.)

    2. Install the damper setting clamp to the shaft.
       Fig 38: Installing Damper Setting Clamp To Shaft

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       NOTE: Be sure to install the clamp in the correct position.
    3. Mount the drive shaft in a soft vise.
    4. Secure the damper setting clamp onto the damper.
    5. Place SST onto the damper setting clamp. SST 09521-24010
    6. Tighten the SST so that the clamp is pinched.
       NOTE: Do not overtighten the SST.
       Fig 39: Placing SST Onto Damper Setting Clamp

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Using SST, measure the clearance of the damper setting clamp.

       SST 09240-00020 (09242-00080)

       Clearance: 0.8 mm (0.032 in.) or less

    NOTE: When the measured value exceeds the specified value, re-tighten the clamp.
40. INSTALL FRONT DRIVE INBOARD JOINT ASSY LH

    HINT:

    Before installing the boot, wrap the spline of the drive shaft with vinyl tape to prevent the boot from being damaged.

    1. Install new parts to the outboard joint shaft assy in the following order.
       1. Inboard joint boot LH clamp
       2. Inboard joint boot LH No.2 clamp
       3. Inboard joint boot
    2. Align the matchmarks, and install the tripod joint assy to the outboard joint assy.
    3. Using a brass bar and a hammer, install the tripod joint assy.
       NOTE: Do not tap the roller.
       Fig 40: Installing Tripod Joint Assy

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a snap ring expander, install a new inner LH shaft snap ring.
    5. Pack the inboard joint sub-assy LH with grease.

       Grease capacity: 160 to 180 g (5.6 to 6.3 oz.)

       Fig 41: Installing Inner LH Shaft Snap Ring

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Align the matchmarks, and install the inboard joint sub-assy LH to the outboard joint shaft assy.
       Fig 42: Aligning Matchmarks

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
41. INSTALL INBOARD JOINT BOOT
    1. Install the inboard joint boot to the inboard joint assy and outboard joint shaft assy.
42. INSTALL FRONT AXLE INBOARD JOINT BOOT LH CLAMP
    1. Mount the drive shaft in a soft vise.
    2. Secure the clamp onto the boot.
    3. Place SST onto the clamp. SST 09521-24010
    4. Tighten the SST so that the clamp is pinched.
       Fig 43: Placing SST Onto Clamp

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       NOTE: Do not overtighten the SST.
    5. Using SST, measure the clearance of the clamp. SST 09240-00020 (09242-00080)

       Clearance: 0.8 mm (0.032 in.) or less

       NOTE: When the measured value exceeds the specified value, re-tighten the clamp.
       Fig 44: Measuring Clearance Of Clamp

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
43. INSTALL FRONT AXLE INBOARD JOINT BOOT LH NO.2 CLAMP
    1. Mount the drive shaft in a soft vise.
    2. Secure the clamp onto the boot.
    3. Place SST onto the clamp. SST 09521-24010
    4. Tighten the SST so that the clamp is pinched.
       Fig 45: Placing SST Onto Clamp

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       NOTE: Do not overtighten the SST.
    5. Using SST, measure the clearance of the clamp. SST 09240-00020 (09242-00080)

       Clearance: 0.8 mm (0.032 in.) or less

       NOTE: When the measured value exceeds the specified value, re-tighten the clamp.
       Fig 46: Measuring Clearance Of Clamp

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
44. INSPECT FRONT DRIVE SHAFT ASSY LH
    NOTE: Keep the drive shaft assy level during inspection.
    Fig 47: Inspecting Front Drive Shaft Assy LH

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check that there is no remarkable play in the outboard joint.
    2. Check that the inboard joint slides smoothly in the thrust direction.
    3. Check that there is no remarkable play in the radial direction of the inboard joint.
    4. Check the boots for damage.

    HINT:

    For dimension (A), refer to the following table.

    FRONT DRIVE SHAFT DIMENSION



    RH	849.75 to 850.25 mm (33.455 to 33.474 in.)
    LH	563.45 to 563.95 mm (21.183 to 22.203 in.)

    Fig 48: Checking Drive Shaft Dimension

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
45. INSTALL FRONT DRIVE SHAFT ASSY LH
    1. Coat the spline of the inboard joint shaft assy with gear oil.
    2. Align the shaft splines, and install the drive shaft assy LH with brass bar and a hammer.
       Fig 49: Aligning Shaft Splines

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    • Set the hole snap ring with opening side facing downwards.
    • Be careful not to damage the oil seal, boot or dust cover.

    HINT:

    Whether the inboard joint shaft is in contact with the pinion shaft or not can be known from the sound or feeling when driving it in.

46. INSTALL FRONT DRIVE SHAFT ASSY RH
    1. Coat the spline of the inboard joint shaft assy with gear oil.
    2. Aline the shaft splines, and install the drive shaft assy RH with the 2 bearing lock bolts.

       Torque: 64 N.m (650 kgf.cm, 47 ft.lbf)

       Fig 50: Installing Drive Shaft Assy RH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: Be careful not to damage the oil seal, boot or dust cover.
47. INSTALL FRONT AXLE ASSY LH
    1. Install the drive shaft assy LH to the front axle assy LH.
    NOTE: Be careful not to damage the outboard joint boot or speed sensor rotor.
48. INSTALL FRONT SUSPENSION ARM SUB-ASSY LOWER NO.1 LH
    1. Install the lower ball joint to the front suspension arm sub-assy lower No.1 LH with the bolt and 2 nuts.

       Torque: 89 N.m (908 kgf.cm, 66 ft.lbf)

       Fig 51: Installing Lower Ball Joint To Front Suspension Arm Sub-Assy Lower No.1 LH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
49. INSTALL TIE ROD END SUB-ASSY LH
    1. Install the tie rod end sub-assy LH to the steering knuckle with the nut.

       Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)

    2. Install a new cotter pin.
    NOTE: If the holes for the cotter pin are not aligned, tighten the nut further to 60°.
50. INSTALL SPEED SENSOR FRONT LH
    1. Install the speed sensor front LH and flexible hose to the shock absorber assy front LH with the bolt.

       Torque: 29 N.m (296 kgf.cm, 21 ft.lbf)

       Fig 52: Installing Speed Sensor Front LH And Flexible Hose To Shock Absorber Assy Front LH

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the speed sensor front LH to the steering knuckle with the bolt.

       Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)

       Fig 53: Installing Speed Sensor Front LH To Steering Knuckle

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    • Be careful not to damage the speed sensor.
    • Keep the speed sensor clean.
    • Do not twist the sensor wire when installing the sensor.
51. INSTALL FRONT STABILIZER LINK ASSY LH
    1. Install the front stabilizer link assy LH with the nut.

       Torque: 74 N.m (755 kgf.cm, 55 ft.lbf)

    HINT:

    If the ball joint turns together with the nut, use a hexagon wrench (6 mm) to hold the stud.

    Fig 54: Installing Front Stabilizer Link Assy LH

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
52. INSTALL FRONT AXLE HUB LH NUT
    1. Install a new hub LH nut.

       Torque: 216 N.m (2,200 kgf.cm, 159 ft.lbf)

    2. Using a chisel and a hammer, stake the hub LH nut.
    Fig 55: Installing Hub LH Nut

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
53. INSTALL FRONT WHEEL

    Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

54. ADD MANUAL TRANSAXLE OIL
55. INSPECT AND ADJUST MANUAL TRANSAXLE OIL (See  MANUAL TRANSAXLE OIL (MTM)  )
56. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT (See  FRONT WHEEL ALIGNMENT  )
57. CHECK ABS SPEED SENSOR SIGNAL (See  TEST MODE PROCEDURE  )
