Slip Indicator Light Circuit: Wiring Diagram

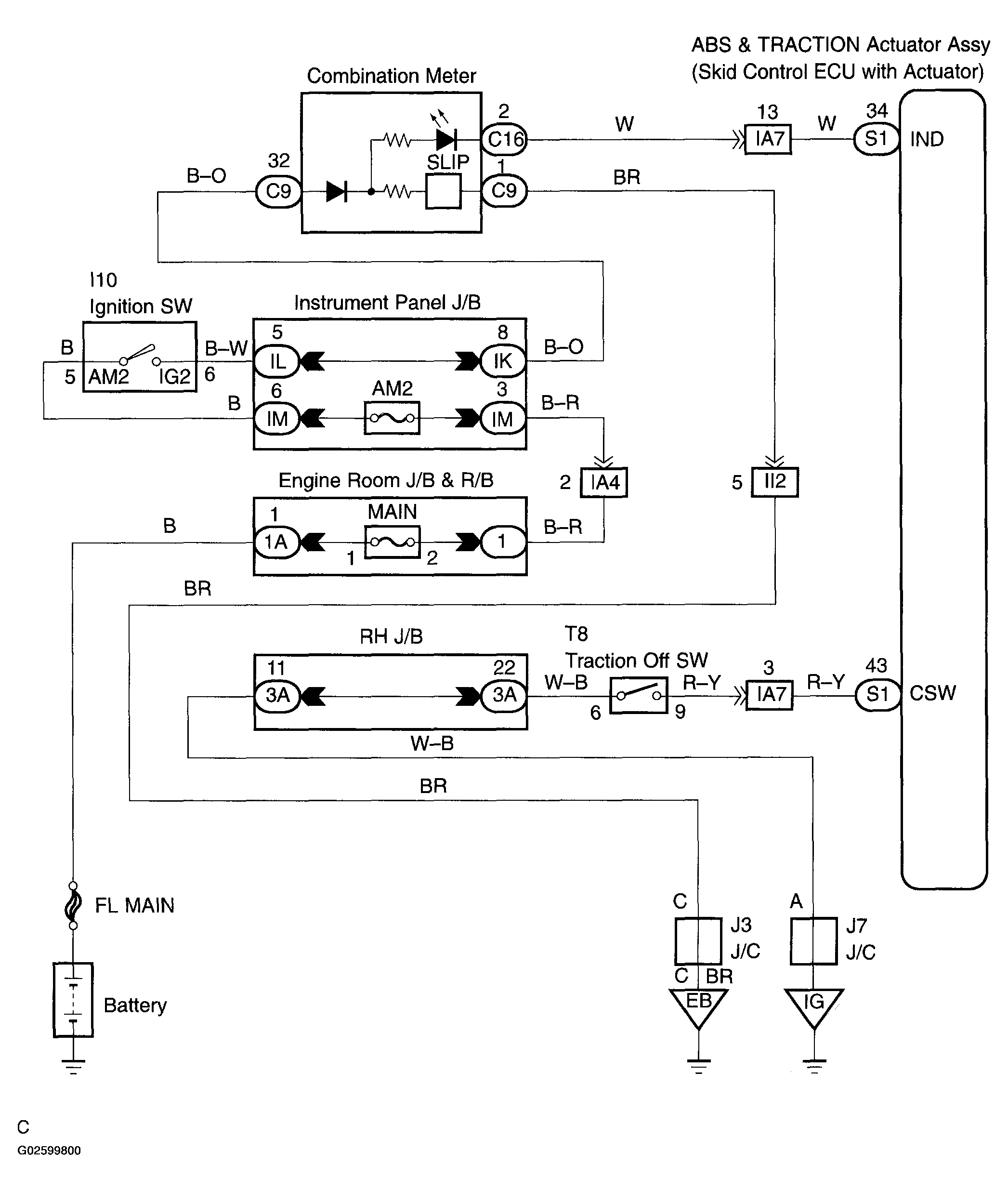

Fig 1: Wiring Diagram - Slip Indicator Light Circuit

G02599800

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
