Inspection Procedure

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.

1. PERFORM ACTIVE TEST BY HAND-HELD TESTER (SLIP INDICATOR LIGHT)
   1. Connect the hand-held tester to the DLC3.
   2. Start the engine.
   3. Select the "SLIP INDI LIGHT" in the ACTIVE TEST and operate the SLIP indicator light by the hand-held tester.
      ACTIVE TEST



      Item	Vehicle Condition / Test Details	Diagnostic Note
      SLIP INDI LIGHT	Turns SLIP indicator light ON / OFF	Observe combination meter

   4. Check that "ON" and "OFF" of the SLIP indicator light are indicated on the combination meter when using the hand-held tester.

   OK: Turn the SLIP indicator light on or off in accordance with the hand-held tester.

   1. NG: Go to step 2
   2. OK: GO TO NEXT STEP.

      REPLACE ABS & TRACTION ACTUATOR ASSY (SEE  REPLACEMENT  )

2. INSPECT TRACTION CONTROL SWITCH
   1. Remove the traction control switch.
   2. Measure the resistance according to the value (s) in the table below.

      Standard:

      TRACTION CONTROL SWITCH TERMINALS RESISTANCE



      Tester Connection	Condition	Specified Condition
      T8-9(+)-T8-6(E)	Pushed in	Continuity
      T8-9(+)-T8-6(E)	Released	10 kΩ or higher

      Fig 1: Identifying Traction Control Switch Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. NG: REPLACE TRACTION CONTROL SWITCH
   2. OK: GO TO NEXT STEP.
3. CHECK HARNESS AND CONNECTOR (CSW TERMINAL CIRCUIT)
   1. Disconnect the traction control switch connector and the skid control ECU connector.
   2. Measure the resistance according to the value (s) in the table below.

      Standard:

      TRACTION CONTROL SWITCH AND SKID CONTROL ECU CONNECTOR TERMINALS RESISTANCE



      Tester Connection	Specified Condition
      S1-43(CSW)-T8-9	Below 1 Ω
      S1-43 (CSW) - Body ground	10 kΩ or higher
      T8-6 - Body ground	Below 1 Ω

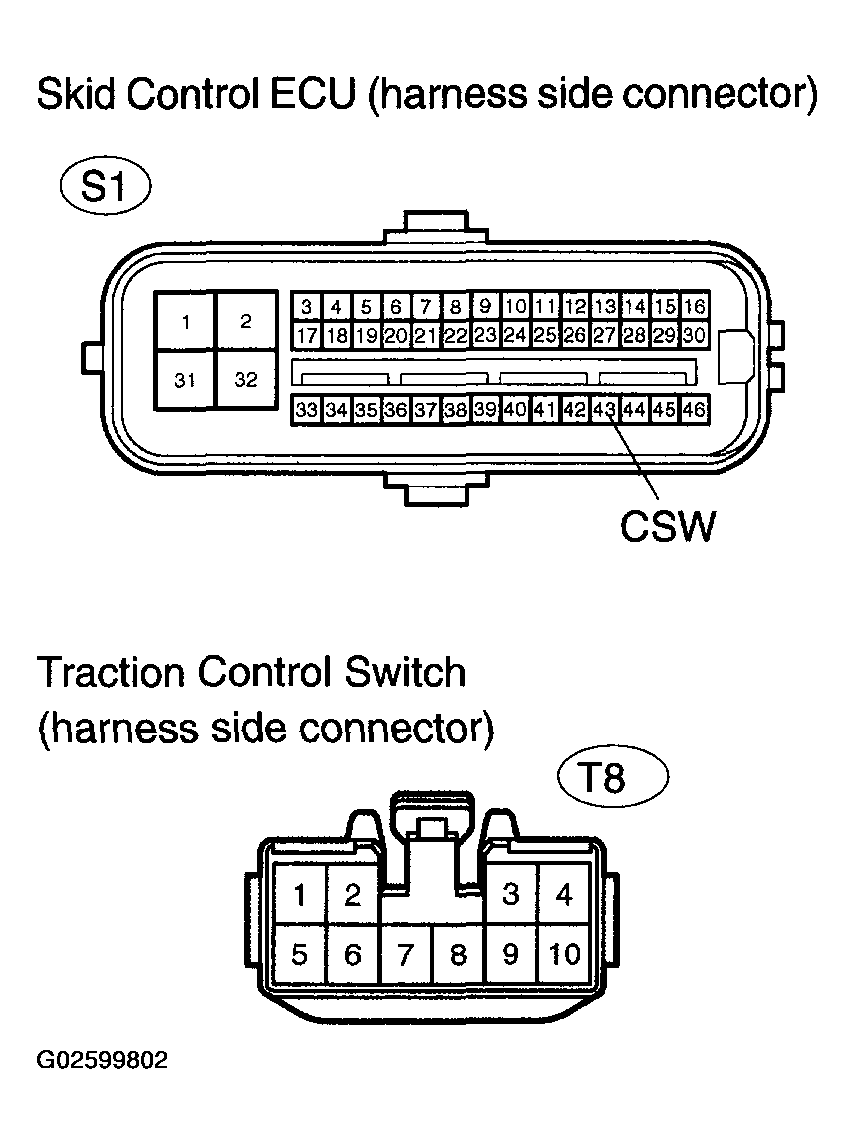

      Fig 2: Identifying Traction Control Switch And Skid Control ECU Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
   2. OK: GO TO NEXT STEP.
4. CHECK HARNESS AND CONNECTOR (COMBINATION METER - SKID CONTROL ECU)
   1. Disconnect the skid control ECU connector and combination meter connector.
   2. Measure the resistance according to the value (s) in the table below.

      Standard:

      SKID CONTROL ECU AND COMBINATION METER TERMINALS RESISTANCE



      Tester Connection	Specified Condition
      C16-2-S1-34(IND)	Below 1 Ω

   3. Measure the resistance according to the value (s) in the table below.

      Standard:

      SKID CONTROL ECU AND BODY GROUND RESISTANCE



      Tester Connection	Specified Condition
      S1-34 (IND) - Body ground	10 kΩ or higher

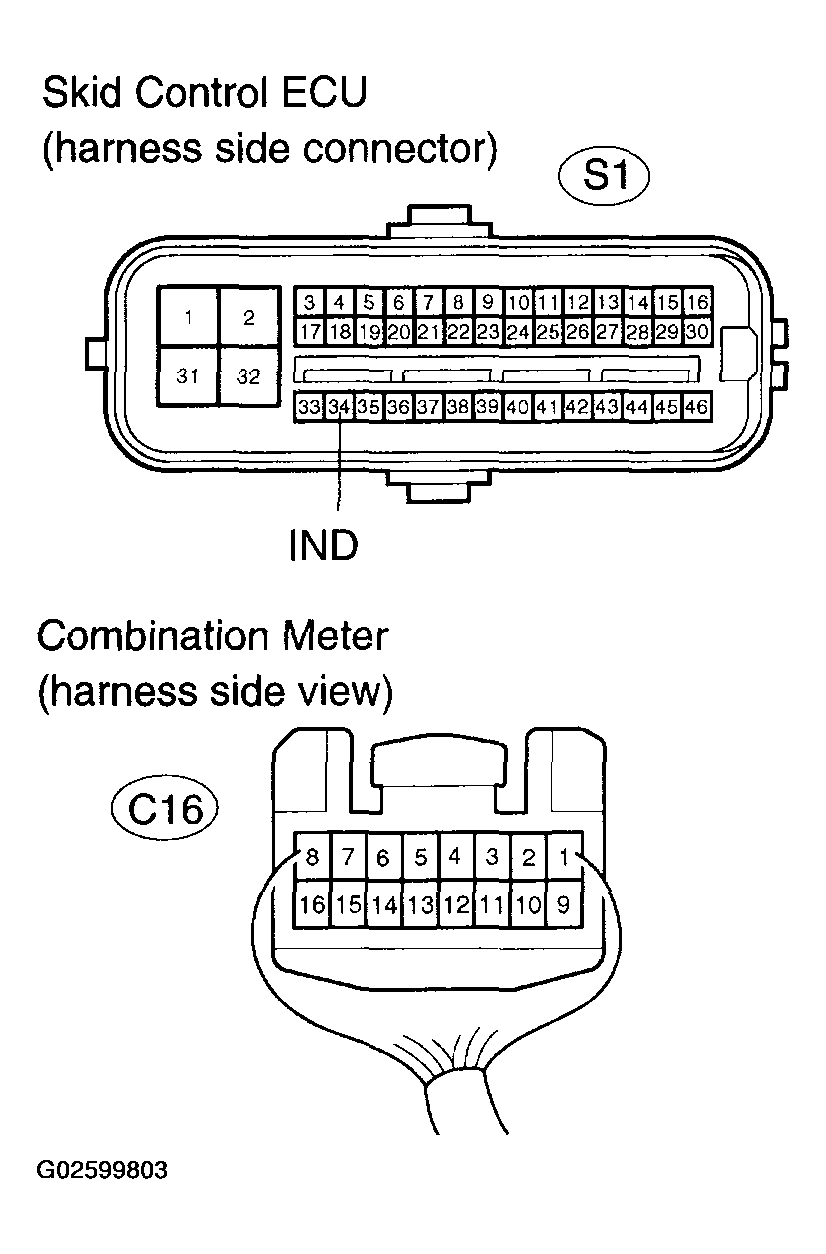

      Fig 3: Identifying Skid Control ECU And Combination Meter Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
   2. OK: GO TO NEXT STEP.
5. INSPECT COMBINATION METER ASSY (SLIP INDICATOR LIGHT)
   1. Check combination meter assy (see COMBINATION METER ).
   1. NG: CHECK COMBINATION METER ASSY (SEE  HOW TO PROCEED WITH TROUBLESHOOTING  )
   2. OK: GO TO NEXT STEP.

      REPLACE ABS & TRACTION ACTUATOR ASSY (SEE  REPLACEMENT  )
