Data List/Active Test

HINT:

With the hand-held tester connected to the DLC3 and the ignition switch in the ON position, the ABS, TRAC and VSC data list can be displayed. Follow the prompts on the tester screen to access the DATA LIST.

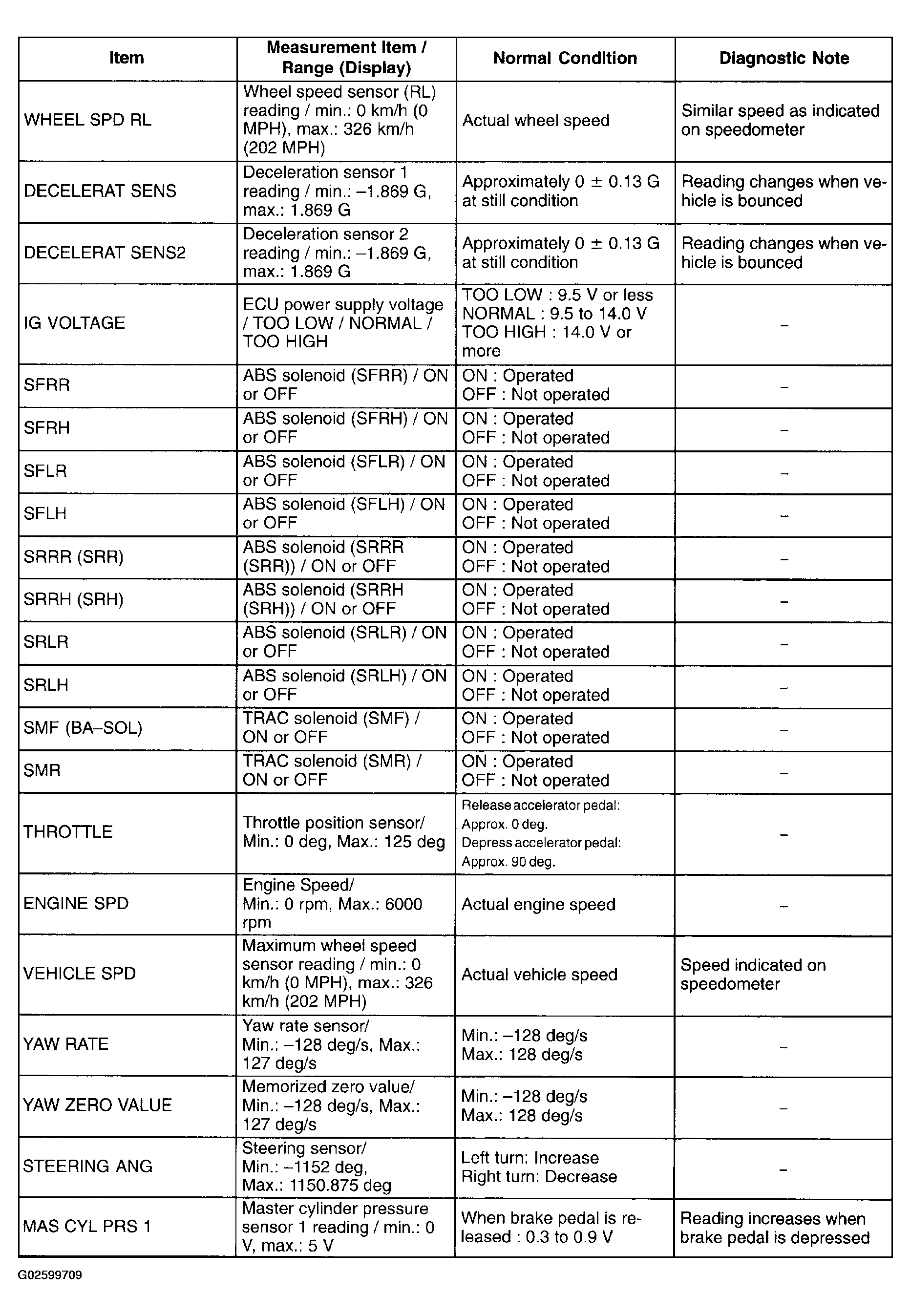

Fig 1: Data List Chart (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

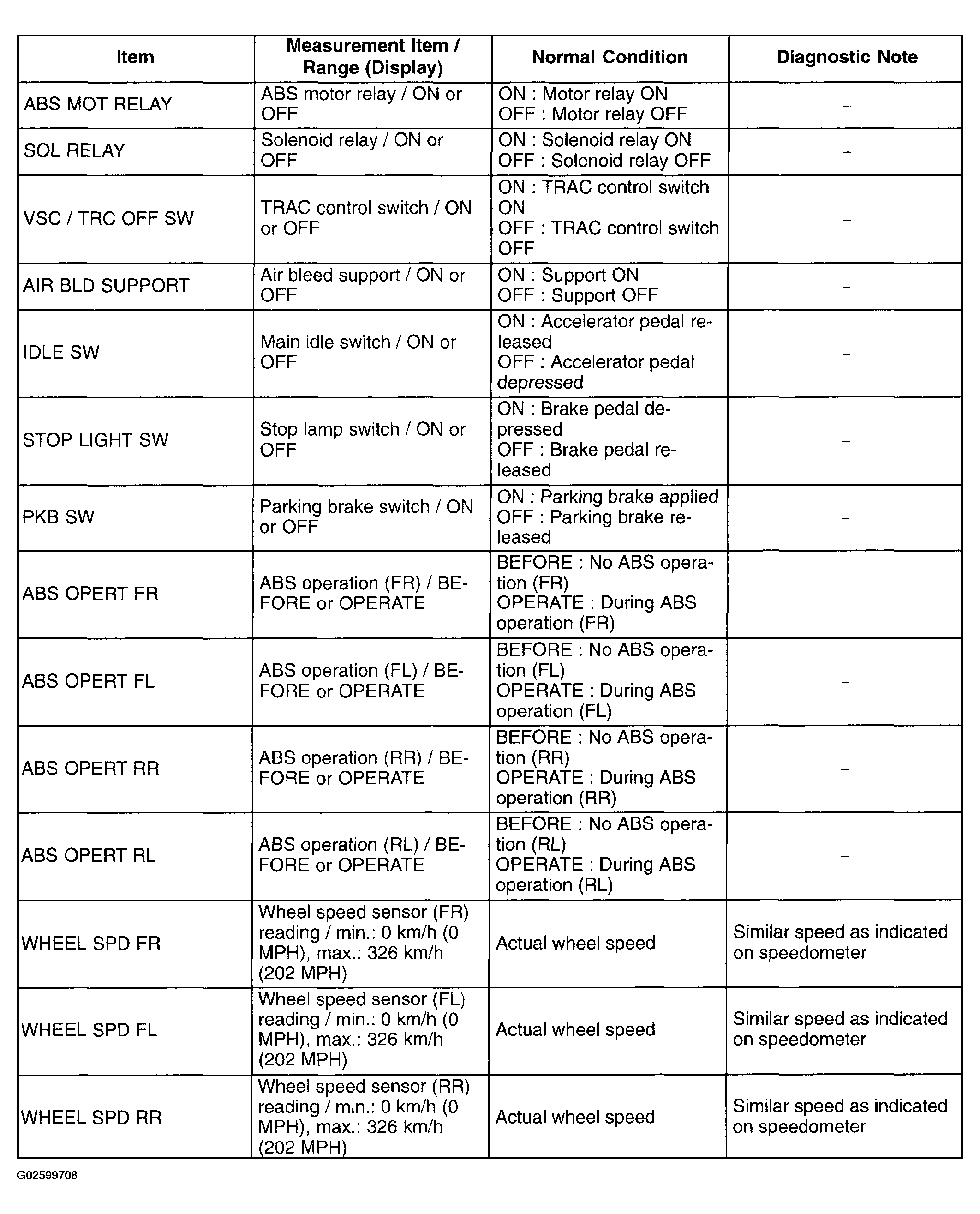

Fig 2: Data List Chart (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

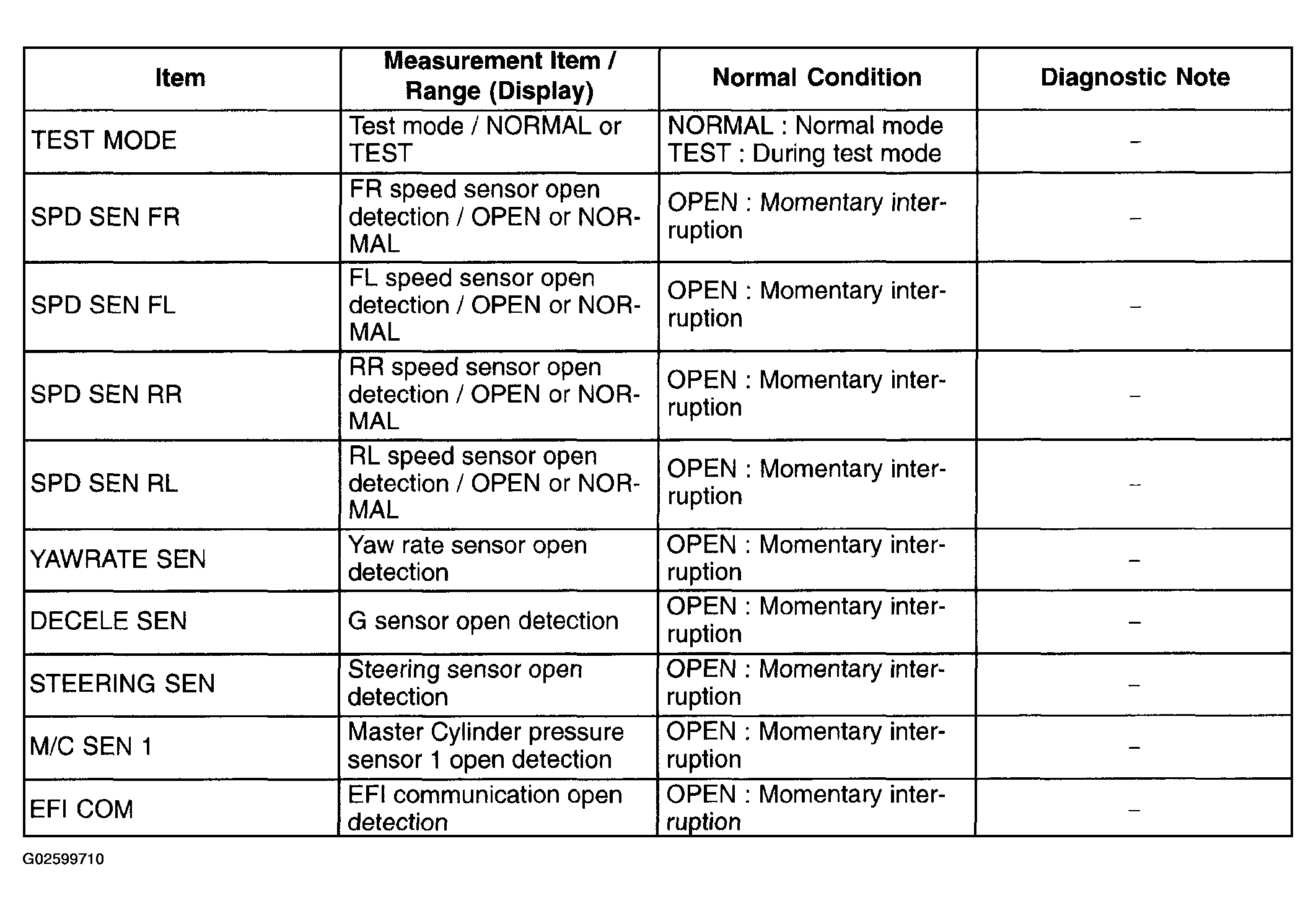

Fig 3: Data List Chart (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. ACTIVE TEST

   HINT:

   Performing the ACTIVE TEST using the hand-held tester allows the relay, actuator, etc. to operate without removing any parts. Performing the ACTIVE TEST as the first step of troubleshooting is one of the methods to shorten labor time.

   It is possible to display the DATA LIST during the ACTIVE TEST.

   1. Connect the hand-held tester to the DLC3.
   2. Turn the ignition switch to the ON position.
   3. According to the display on the tester, perform the ACTIVE TEST.

   HINT:

   Ignition switch must be turned to the ON position to proceed to the ACTIVE TEST using the hand-held tester.

   ACTIVE TEST



   Item	Vehicle Condition / Test Details	Diagnostic Note
   SFRR	Turns ABS solenoid (SFRR) ON / OFF	Operation of solenoid (clicking sound) can be heard
   SFRH	Turns ABS solenoid (SFRH) ON / OFF	Operation of solenoid (clicking sound) can be heard
   SFLR	Turns ABS solenoid (SFLR) ON / OFF	Operation of solenoid (clicking sound) can be heard
   SFLH	Turns ABS solenoid (SFLH) ON / OFF	Operation of solenoid (clicking sound) can be heard
   SRRR	Turns ABS solenoid (SRRR) ON / OFF	Operation of solenoid (clicking sound) can be heard
   SRRH	Turns ABS solenoid (SRRH) ON / OFF	Operation of solenoid (clicking sound) can be heard
   SRLR	Turns ABS solenoid (SRLR) ON / OFF	Operation of solenoid (clicking sound) can be heard
   SRLH	Turns ABS solenoid (SRLH) ON / OFF	Operation of solenoid (clicking sound) can be heard
   SMF (BA-SOL)	Turns TRAC solenoid SMF (BA-SOL) ON / OFF	Operation of solenoid (clicking sound) can be heard
   SMR Turns	TRAC solenoid SMR ON / OFF	Operation of solenoid (clicking sound) can be heard
   SOL RELAY	Turns ABS solenoid relay ON / OFF	Operation of solenoid (clicking sound) can be heard
   ABS MOT RELAY	Turns ABS motor relay ON / OFF	Operation of motor (clicking sound) can be heard
   ABS WARN LIGHT	Turns ABS warning light ON / OFF	Observe combination meter
   VSC WARN LIGHT	Turns VSC warning light ON / OFF	Observe combination meter
   VSC / TRC OFF IND	Turns VSC / TRAC OFF indicator ON / OFF	Observe combination meter
   SLIP INDI LIGHT	Turns SLIP indicator light ON / OFF	Observe combination meter
   BRAKE WRN LIGHT	Turns BRAKE warning light ON / OFF	Observe combination meter
   VSC / BR WARN BUZ	Turns VSC / BRAKE warning buzzer ON / OFF	Buzzer can be heard
   SFRR & SFRH	Turns ABS solenoid SFRR & SFRH ON / OFF	Operation of solenoid (clicking sound) can be heard
   SFLR & SFLH	Turns ABS solenoid SFLR & SFLH ON / OFF	Operation of solenoid (clicking sound) can be heard
   SRH & SRR	Turns ABS solenoid SRH & SRR ON / OFF	Operation of solenoid (clicking sound) can be heard
   SRLR & SRLH	Turns ABS solenoid SRLR & SRLH ON / OFF	Operation of solenoid (clicking sound) can be heard
   SFRH & SFLH	Turns ABS solenoid SFRH & SFLH ON / OFF	Operation of solenoid (clicking sound) can be heard
