DTC C0278/11, C0279/12: Open/Short Circuit In Abs Solenoid Relay Circuit: Wiring Diagram

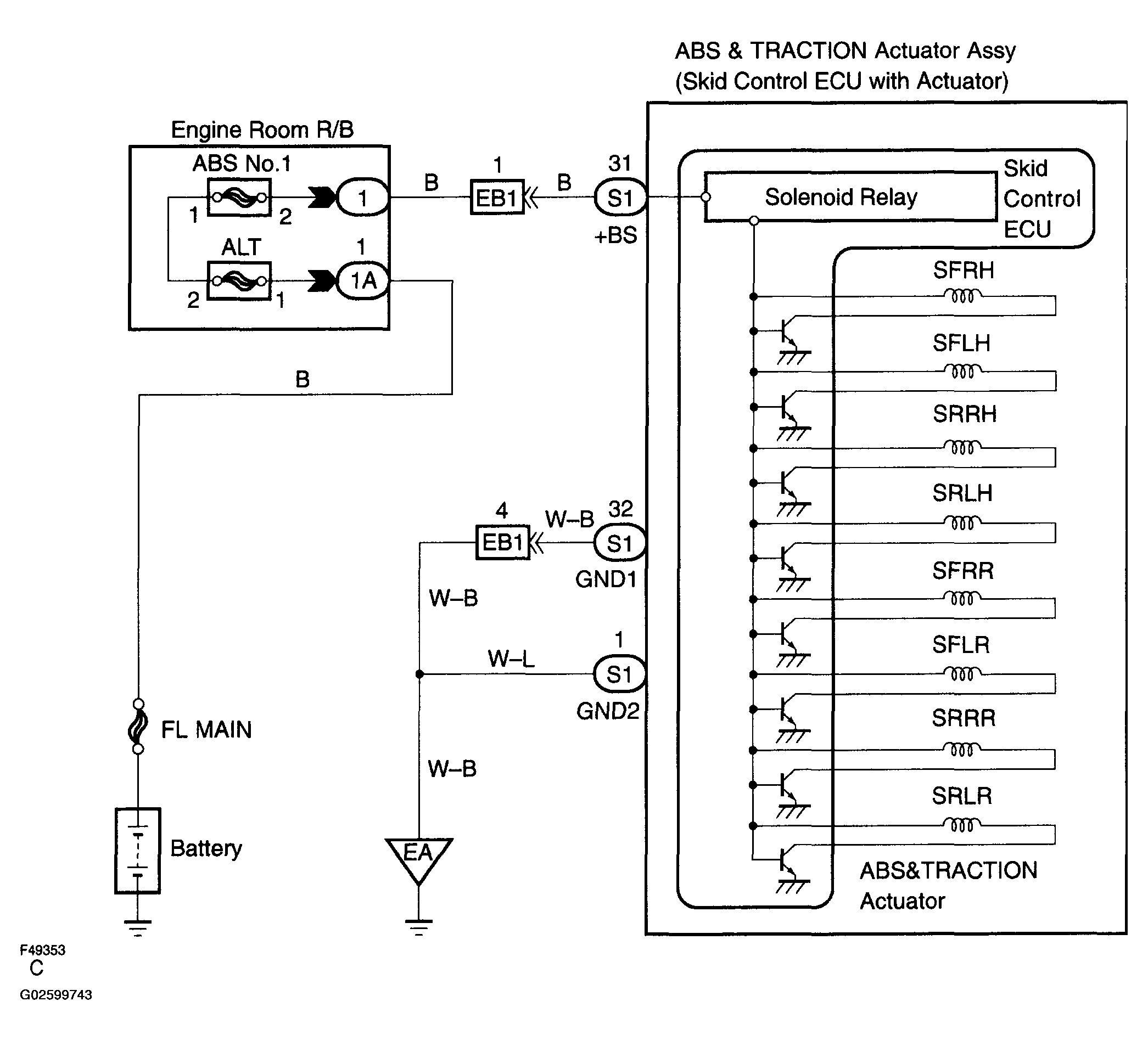

Fig 1: Wiring Diagram - ABS Solenoid Relay Circuit

G02599743

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
