Inspection Procedure

NOTE: When replacing the ABS & TRACTION actuator assy, perform zero point calibration (see CALIBRATION ).
  1. INSPECT ABS WARNING LIGHT

    WHEN USING HAND-HELD TESTER:

    1. Connect the hand-held tester to the DLC3 and start the engine.
    2. Select the "ABS WARN LIGHT" in the ACTIVE TEST and operate the ABS warning light by the hand-held tester.
      ACTIVE TEST

      Item Vehicle Condition / Test Details Diagnostic Note
      ABS WARN LIGHT Turns ABS warning light ON / OFF Observe combination meter
    3. Check that "ON" and "OFF" of the ABS warning light can be shown on the combination meter by the hand-held tester.

    OK: The ABS warning light turns on or off in accordance with the hand-held tester.

    WHEN NOT USING HAND-HELD TESTER:

    1. Turn the ignition switch off and disconnect the connector from the skid control ECU.
    2. Ground terminal WA of the skid control ECU.
    3. Turn the ignition switch to the ON position.
    4. Check the ABS warning light.

    OK:

    WA-GND CONDITION AND ILLUMINATION CONDITION

    WA-GND Condition Illumination Condition
    Connected OFF
    Disconnected ON
    Fig 1: Identifying Skid Control ECU Connector Terminal
    G02599785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: Go to step 2
    2. OK: GO TO NEXT STEP.

      REPLACE ABS & TRACTION ACTUATOR ASSY (SEE  REPLACEMENT  )

  2. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - COMBINATION METER)
    1. Disconnect the skid control ECU connector and combination meter connector.
    2. Measure the resistance according to the value (s) in the table below.

      Standard:

      SKID CONTROL ECU AND COMBINATION METER TERMINAL RESISTANCE

      Tester Connection Specified Condition
      C9-37-S1-29(WA) Below 1 Ω
    3. Measure the resistance according to the value (s) in the table below.

      Standard:

      SKID CONTROL ECU TERMINALS AND BODY GROUND RESISTANCE

      Tester Connection Specified Condition
      S1-29(WA)- Body ground 10 kΩ or higher

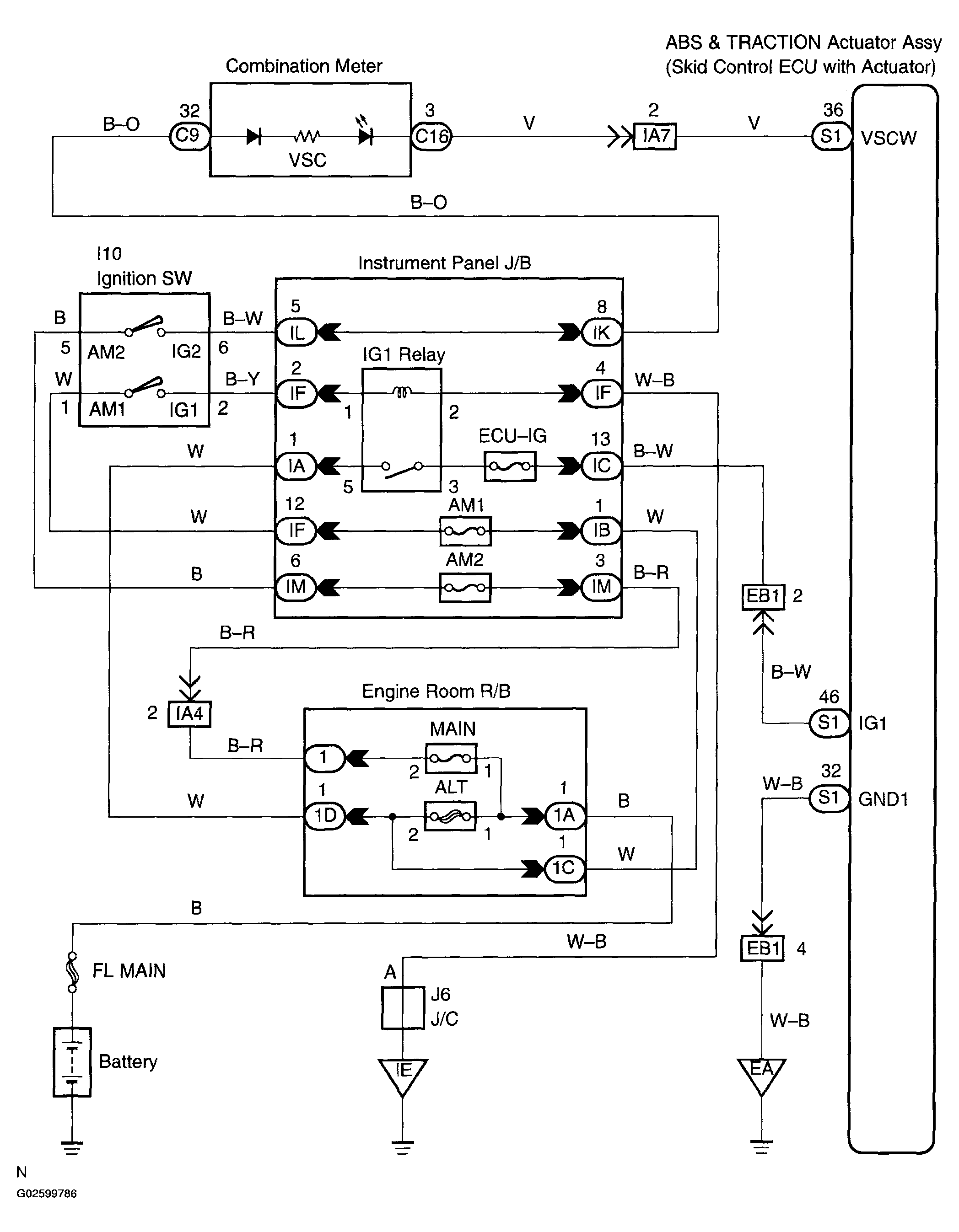

      Fig 2: Identifying Skid Control ECU And Combination Meter Terminal
      G02599786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: GO TO NEXT STEP.
  3. INSPECT COMBINATION METER ASSY
    1. Check combination meter assy (see COMBINATION METER ).
    1. NG: CHECK COMBINATION METER ASSY (SEE  HOW TO PROCEED WITH TROUBLESHOOTING  )
    2. OK: GO TO NEXT STEP.

      REPLACE ABS & TRACTION ACTUATOR ASSY (SEE  REPLACEMENT  )
