Wheel Speed Sensor Front LH: Replacement

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE FRONT WHEEL
2. REMOVE FRONT FENDER LINER LH
3. REMOVE SPEED SENSOR FRONT LH
   1. Disengage the clamp and disconnect the connector.
      Fig 1: Disconnecting Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the 2 bolts and separate the speed sensor front from the body and shock absorber.

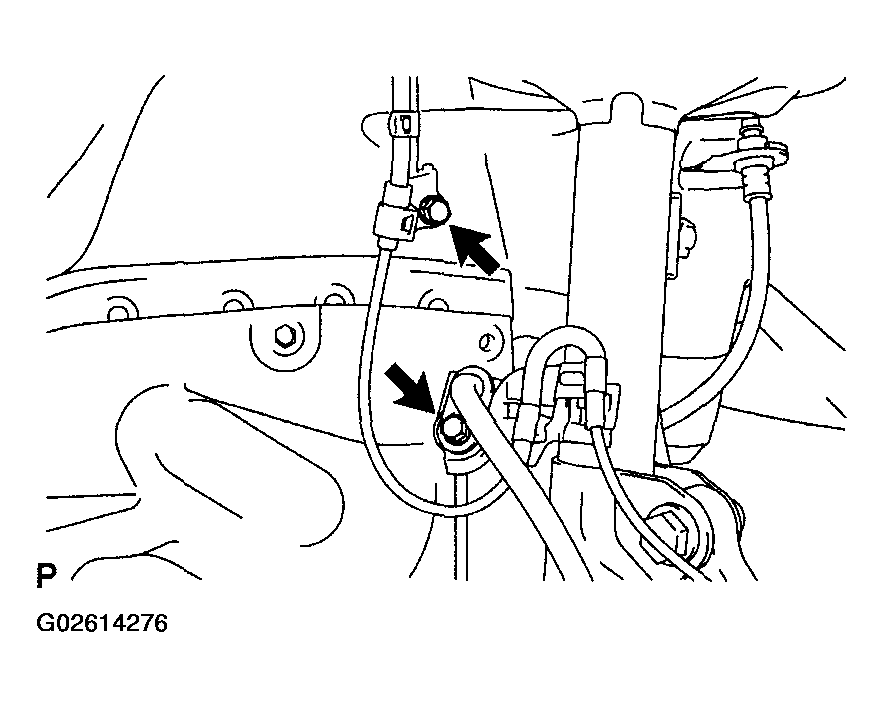

      Fig 2: Removing Speed Sensor Front From Body And Shock Absorber

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Remove the bolt and speed sensor front LH.
   NOTE: Prevent foreign matter from attaching to the sensor tip.

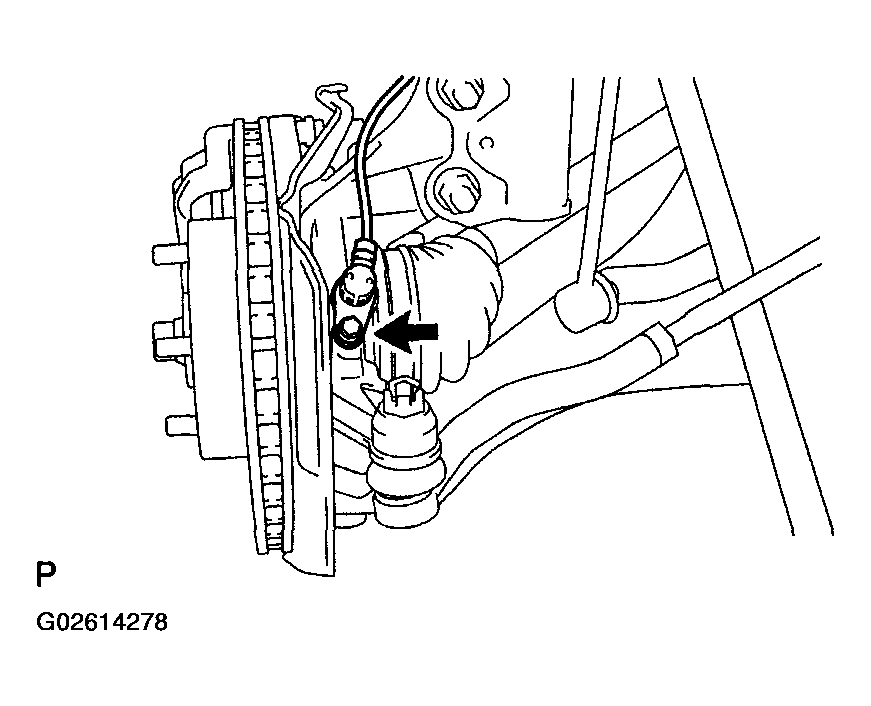

   Fig 3: Removing Bolt And Speed Sensor Front LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL SPEED SENSOR FRONT LH
   1. Install the speed sensor front LH with the bolt.

      Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)

      NOTE: Prevent foreign matter from attaching to the sensor tip.
      Fig 4: Installing Speed Sensor Front LH With Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Install the speed sensor front with the 2 bolts.

      Torque:

      Bolt A: 8.0 N.m (82 kgf.cm, 71 in..lbf)

      Bolt B: 29 N.m (296 kgf.cm, 21 ft.lbf)

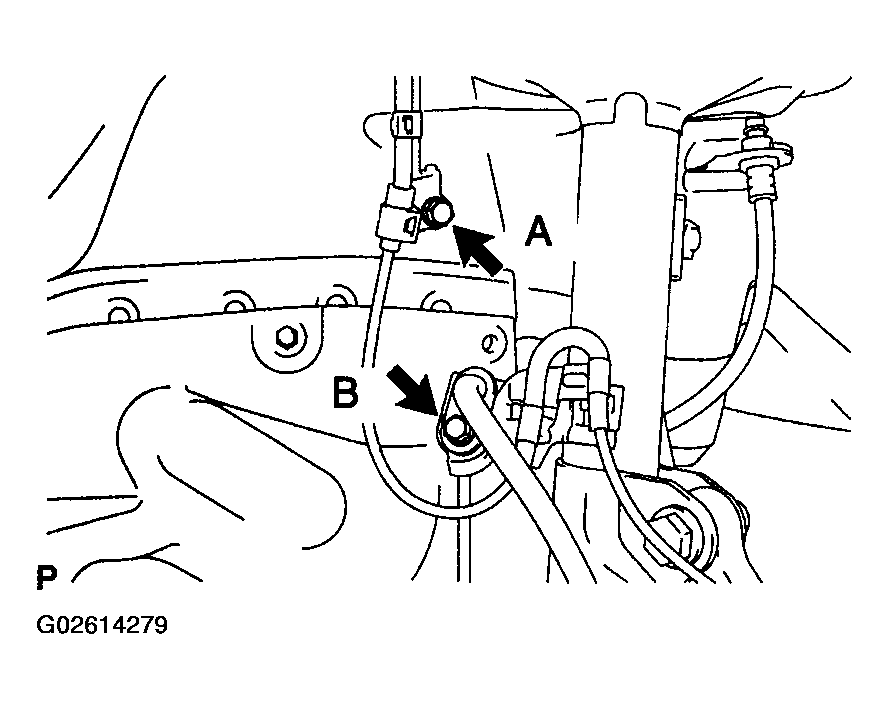

      Fig 5: Installing Speed Sensor Front With Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Connect the connector and engage the clamp.
   Fig 6: Connecting Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL FRONT FENDER LINER LH
6. INSTALL FRONT WHEEL

   Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

7. CHECK ABS SPEED SENSOR SIGNAL

   W/ ABS: (see  DIAGNOSTIC TROUBLE CODES CHECK/CLEAR  )

   W/ VSC: (see  DIAGNOSTIC TROUBLE CODES CHECK/CLEAR  )
