Rear Brake Shoe, Wheel Cylinder & Brake Drum (NUMMI/TMMC Made): Components

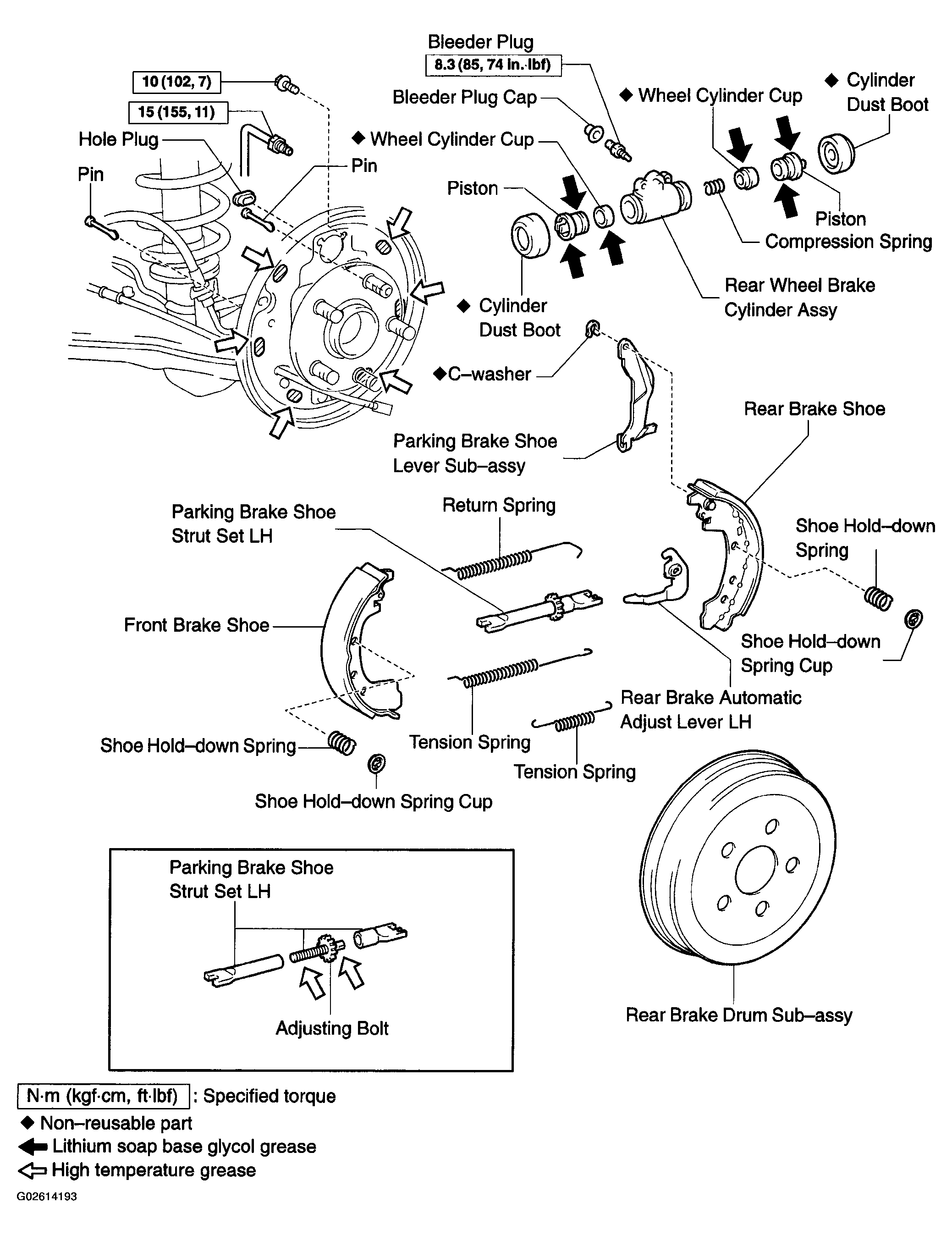

Fig 1: Identifying Rear Drum Brake Components - NUMMI/TMMC MADE

G02614193

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
