Front Brake Pad, Brake Caliper & Brake Rotor: Components

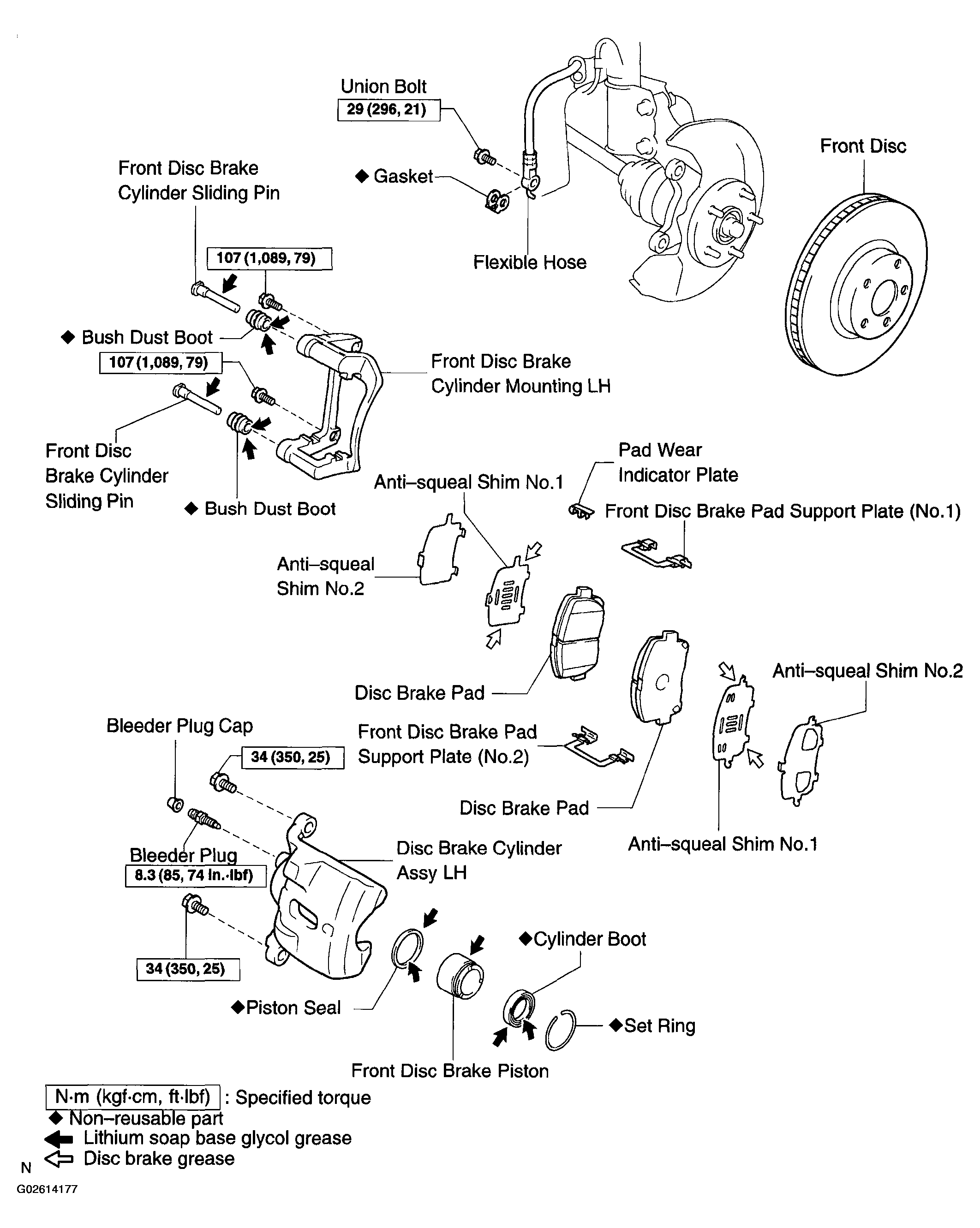

Fig 1: Identifying Front Brake Components

G02614177

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
