Brake Master Cylinder Sub-ASSY: Components

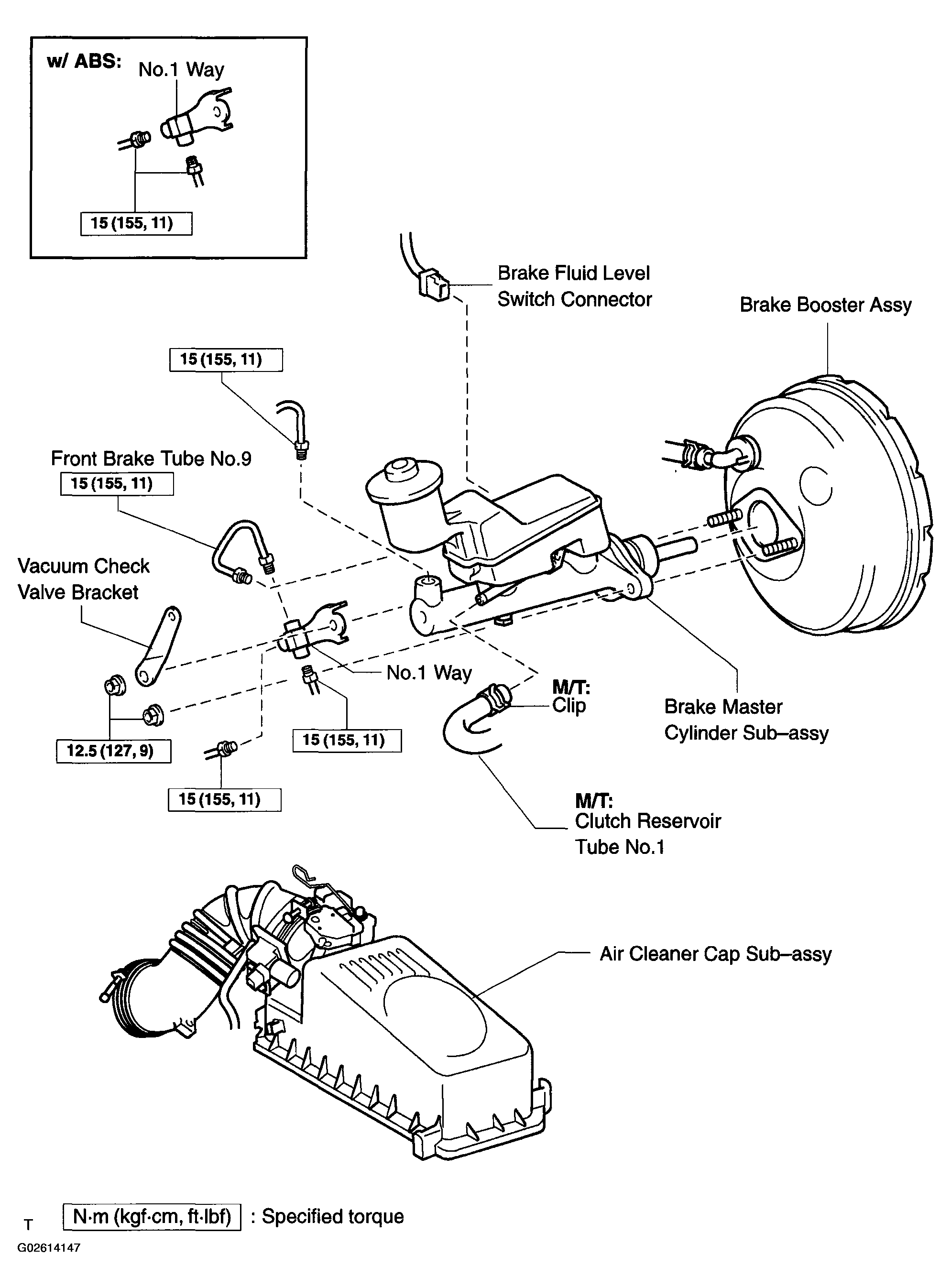

Fig 1: Identifying Brake Master Cylinder Sub-Assy Components (1 Of 2)
G02614147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

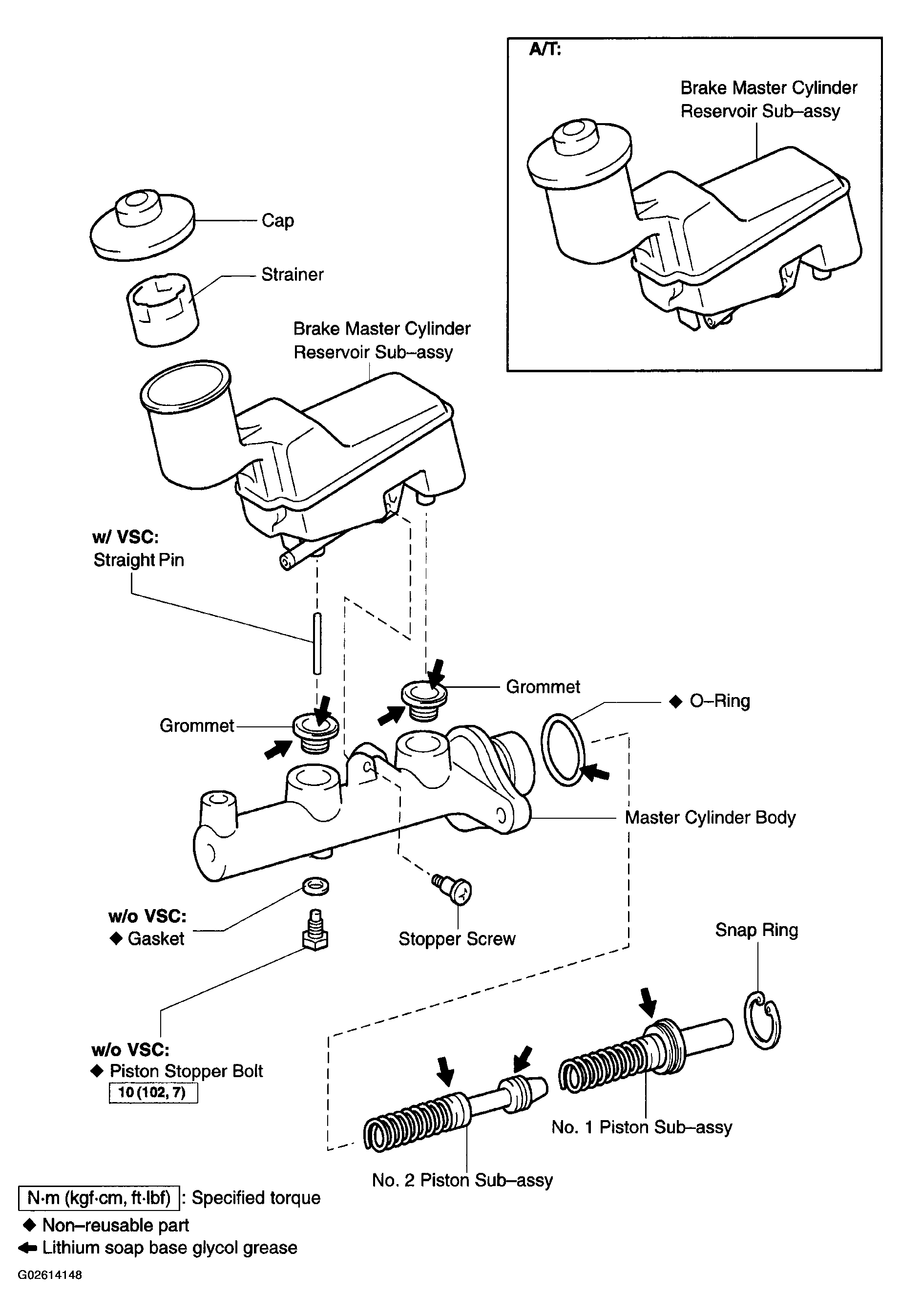

Fig 2: Identifying Brake Master Cylinder Sub-Assy Components (2 Of 2)
G02614148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
