Brake Booster ASSY: Components

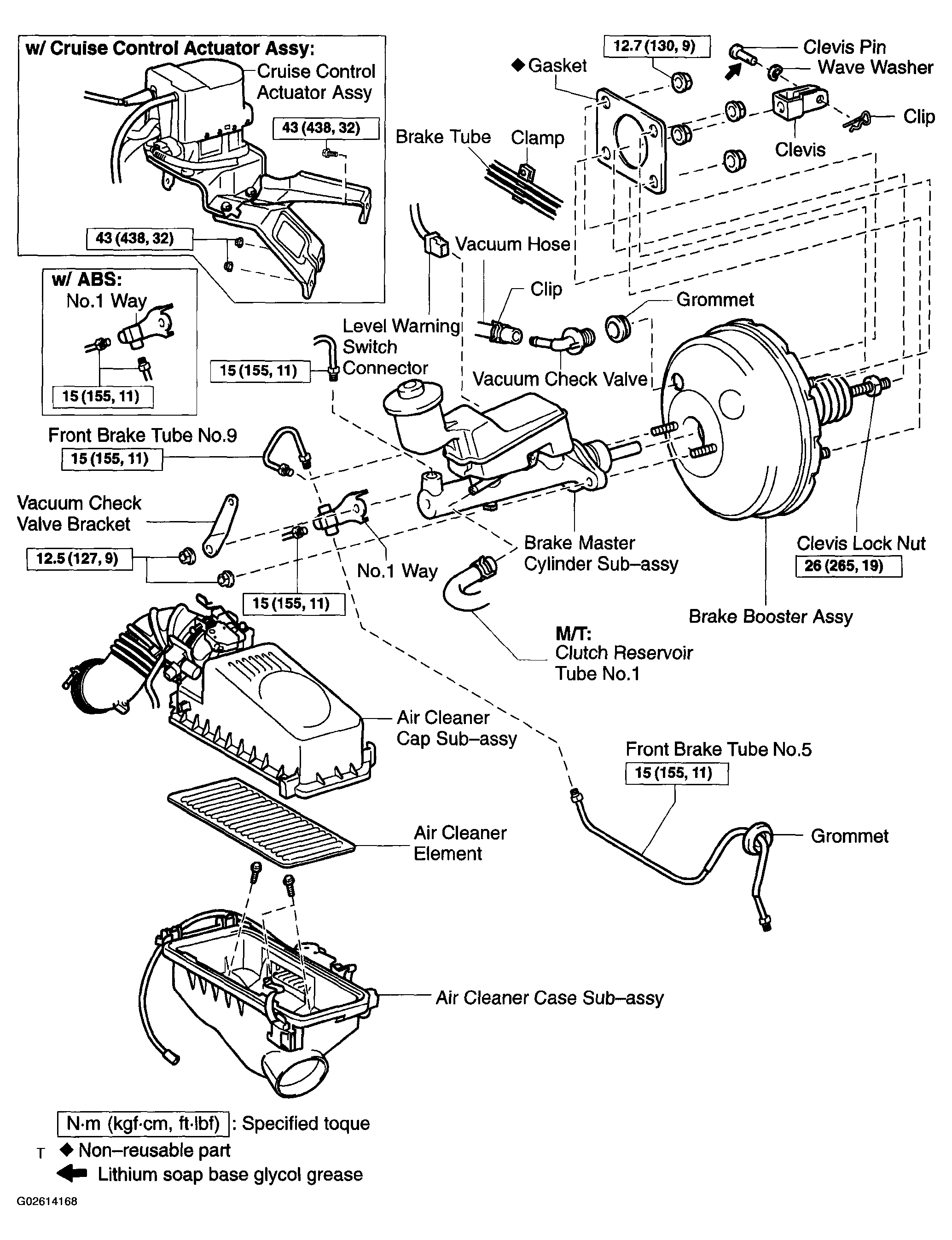

Fig 1: Identifying Brake Booster Assembly Components

G02614168

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
