Home >> Toyota >> 2005 >> Corolla LE, Automatic >> Repair and Diagnosis >> Brakes >> Anti-Lock Brakes >> Brakes - Abs With EBD (Diagnostics) >> DTC C1251/51: Pump Motor Is Locked/Open Circuit In Pump Motor Ground >> Wiring Diagram

DTC C1251/51: Pump Motor Is Locked/Open Circuit In Pump Motor Ground: Wiring Diagram

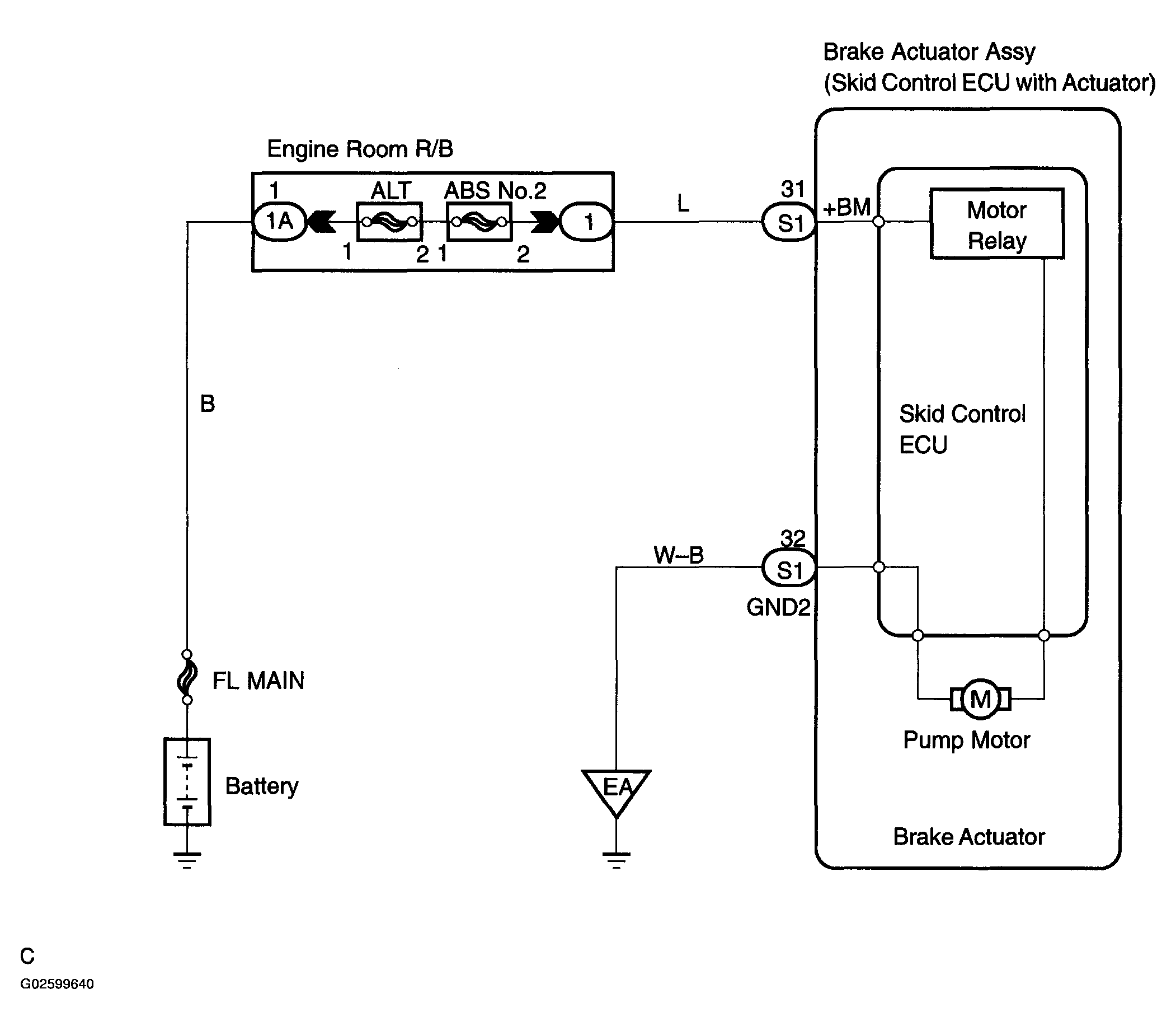

Fig 1: Wiring Diagram - Pump Motor Is Locked/Open Circuit In Pump Motor Ground
G02599640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
