DTC C1249/49: Open Circuit In Stop Light Switch Circuit: Wiring Diagram

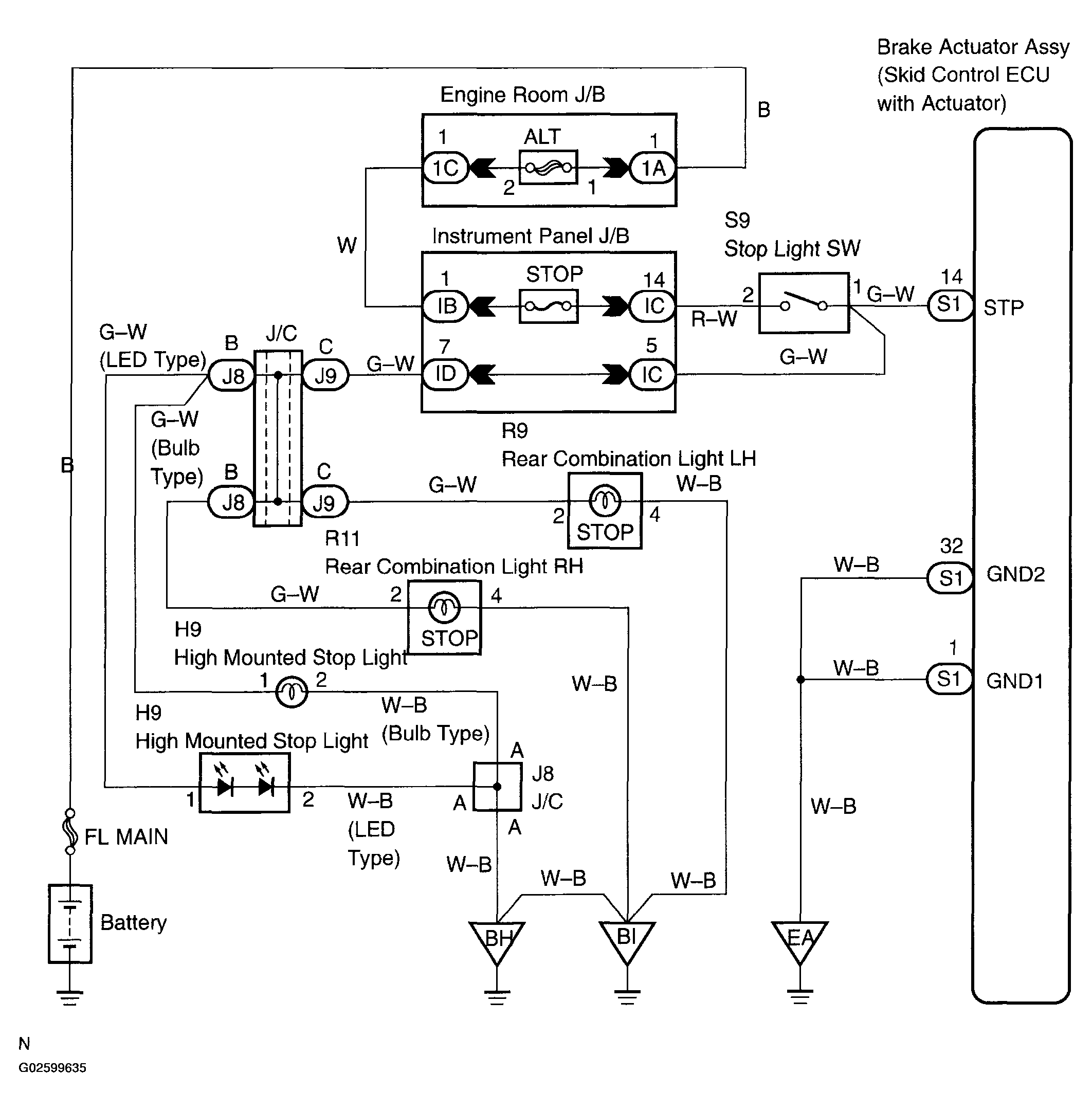

Fig 1: Wiring Diagram - Open Circuit In Stop Light Switch Circuit

G02599635

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
