Abs Warning Light Circuit (Remains On): Wiring Diagram

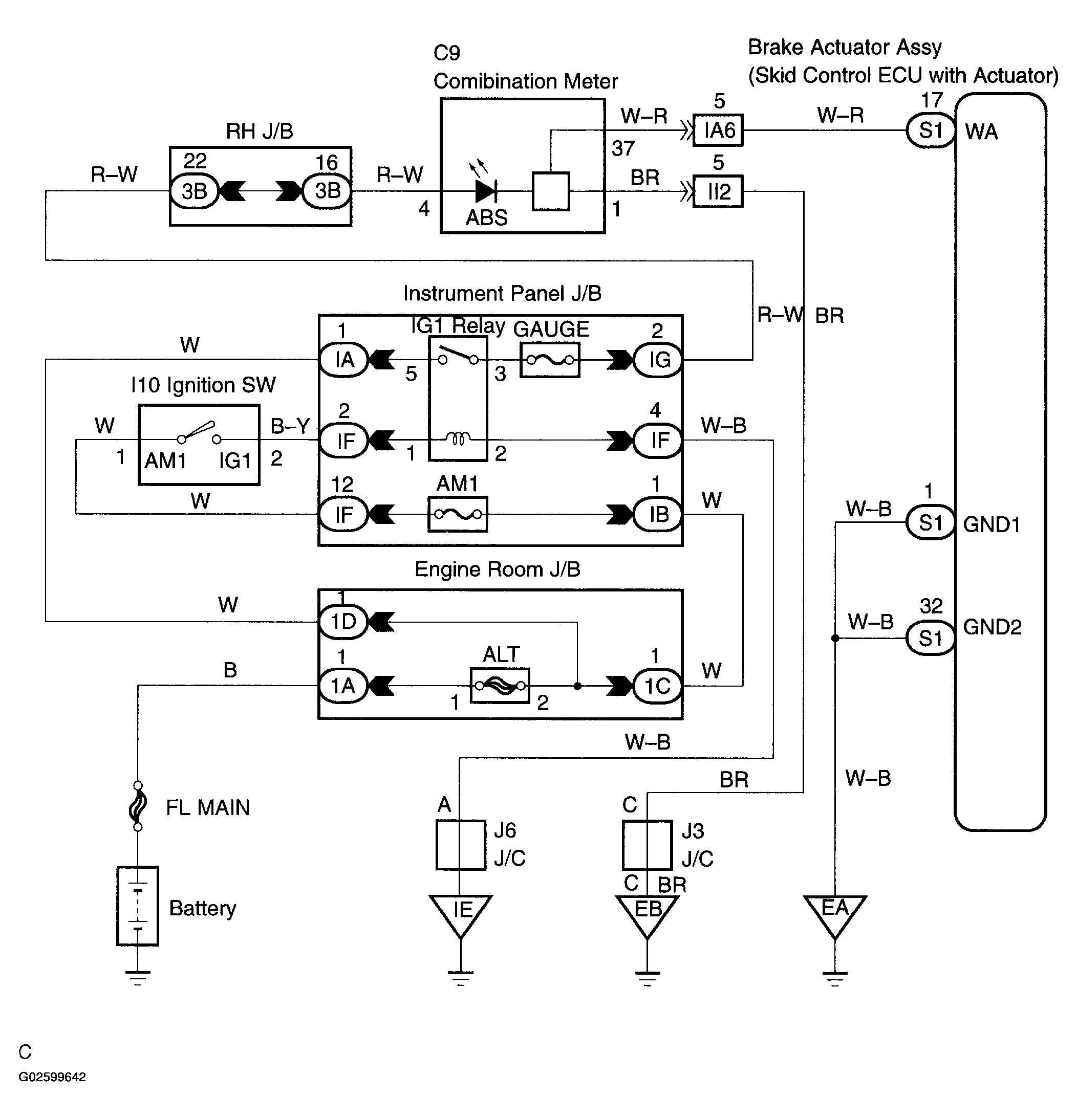

Fig 1: Wiring Diagram - ABS Warning Light Circuit Remains On)

G02599642

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
