Warning Buzzer Does Not Sound: Wiring Diagram

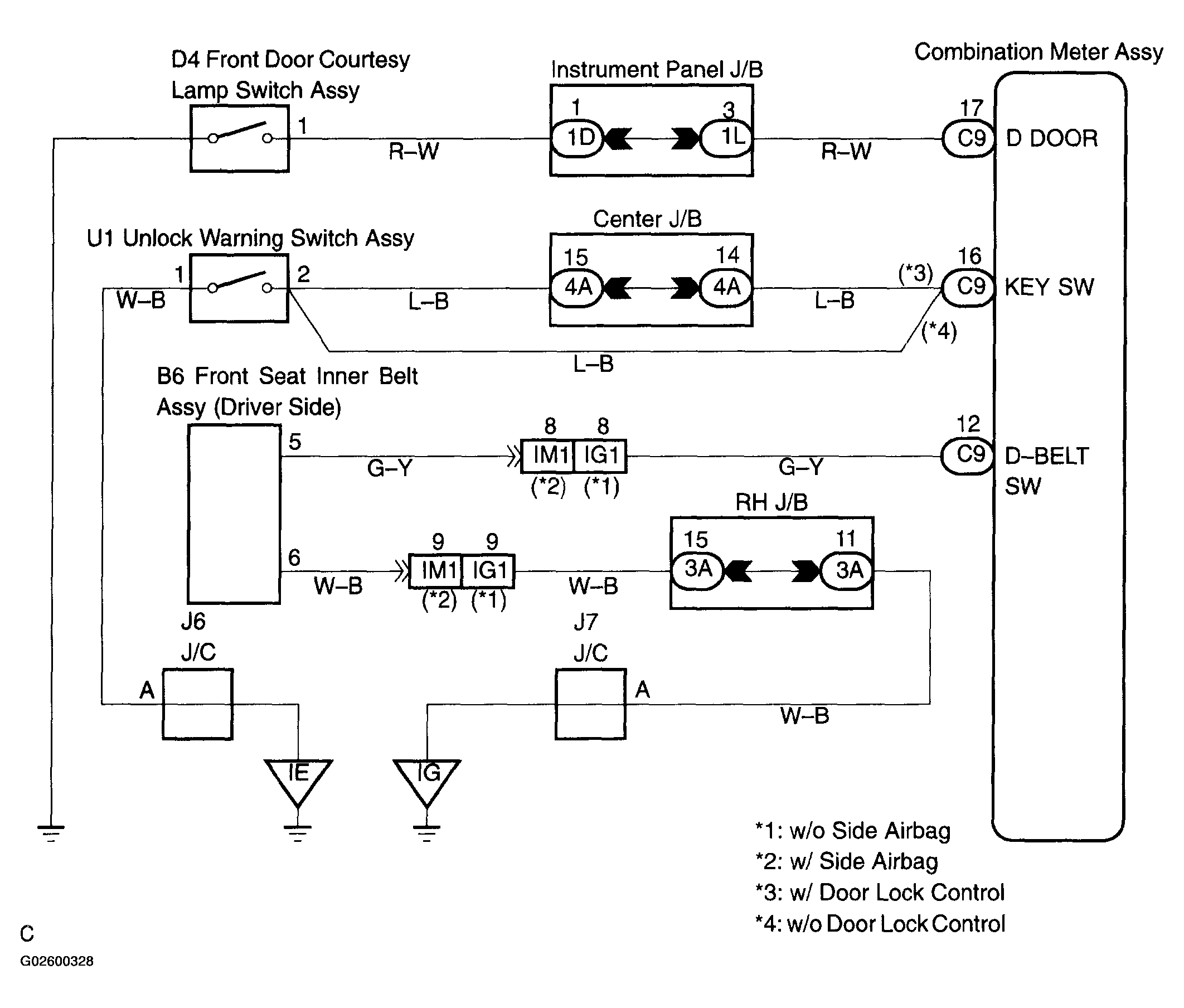

Fig 1: Wiring Diagram - Warning Buzzer Does Not Sound

G02600328

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
