Seat Belt Warning Lamp For Driver's Seat Does Not Operate: Wiring Diagram

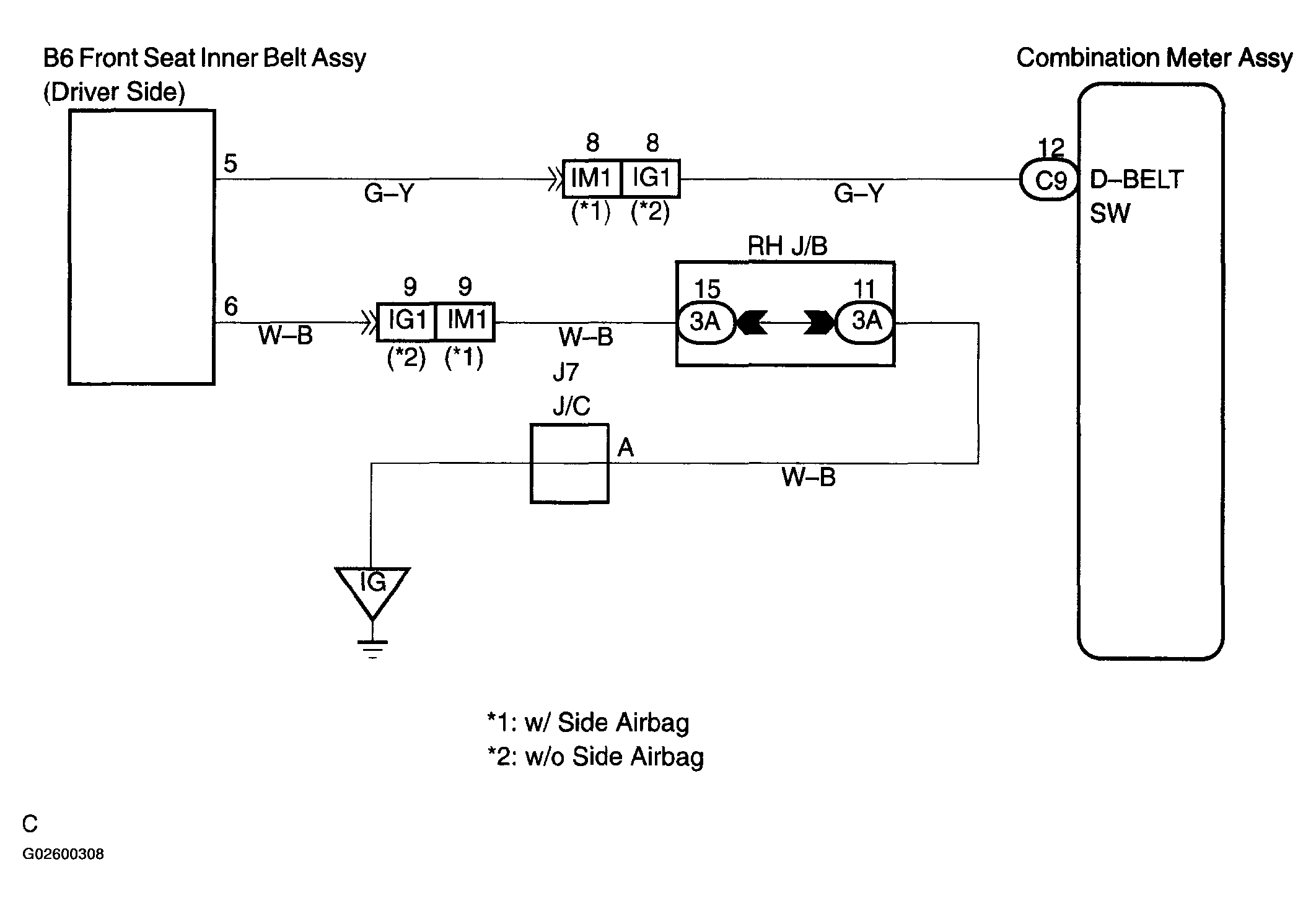

Fig 1: Wiring Diagram - Seat Belt Warning Lamp For Driver'S Seat Does Not Operate
G02600308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
