Operating Light Control Rheostat Does Not Change Light Brightness: Wiring Diagram

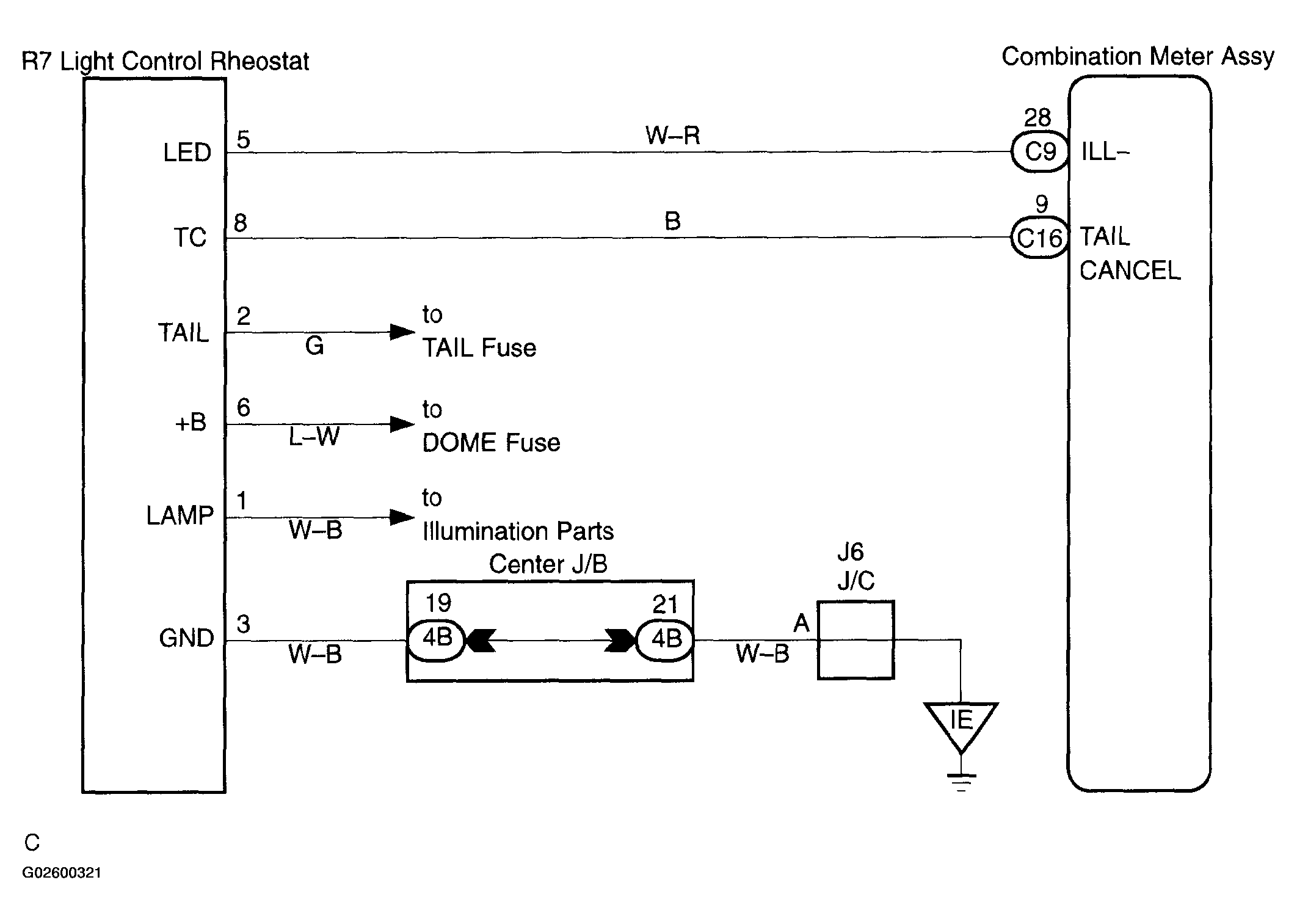

Fig 1: Wiring Diagram - Operating Light Control Rheostat Does Not Change Light Brightness
G02600321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
