Malfunction In Speedometer: Wiring Diagram

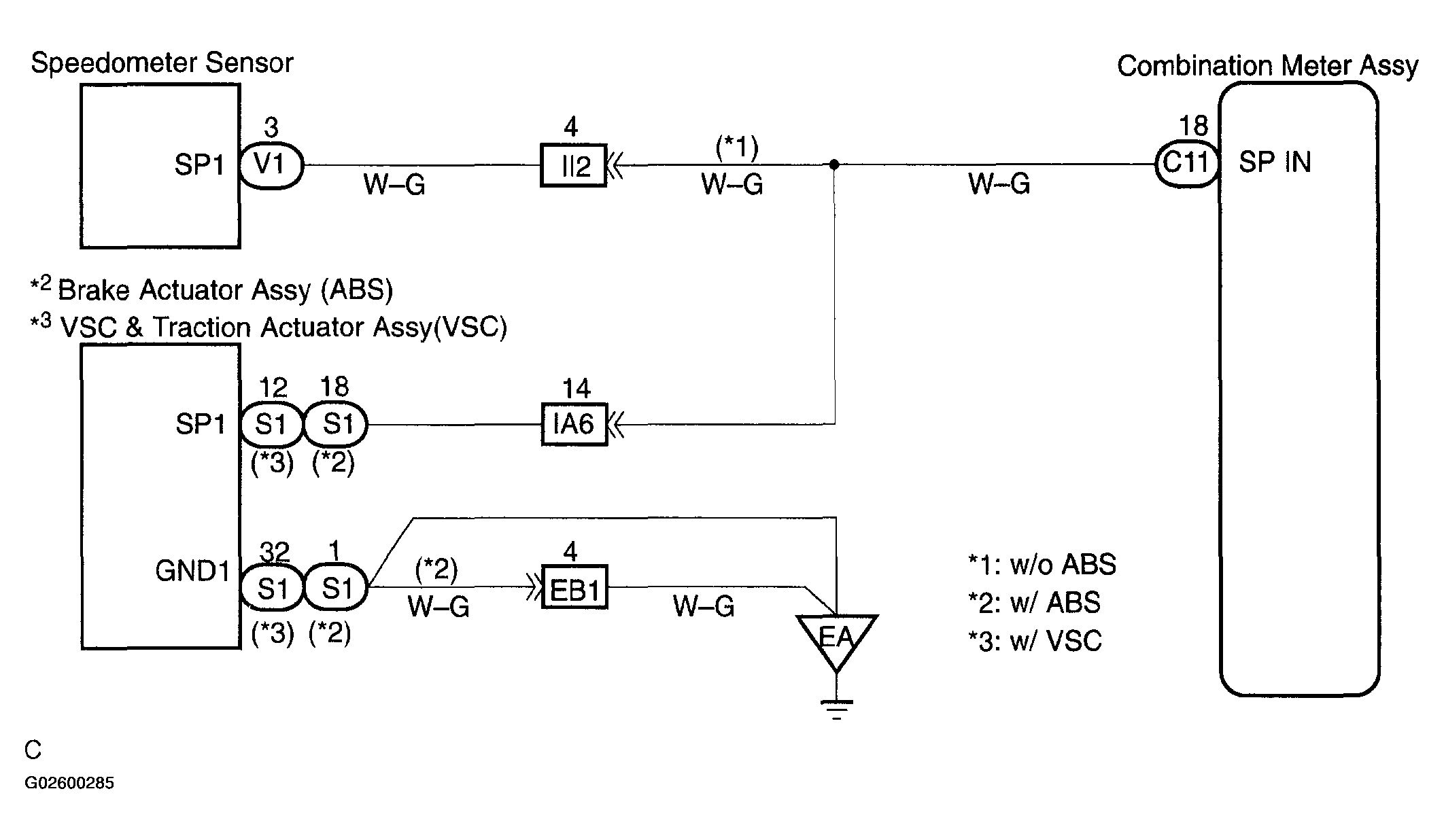

Fig 1: Wiring Diagram - Malfunction In Speedometer

G02600285

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
