Inspection Procedure

  1. INSPECT HARNESS OR CONNECTOR
    1. Disconnect the F10 connector from the fuel sender gauge assy.
    2. Check the meter indicator conditions according to the table below.
      Fig 1: Inspecting Harness Or Connector
      G02600300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      WIRE CONNECTION SPECIFIED CONDITION

      Wire connection Condition Specified Condition
      2-3 Short circuit (Ignition switch ON) Fuel gauge indicates "F" or more (Combination meter)
    3. Measure the voltage according to the value (s) in the table below.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Condition Specified Condition
      2 - Body ground Ignition switch ON 4 to 7V
    1. NG: Go to step   3
    2. OK: GO TO NEXT STEP
  2. INSPECT FUEL SENDER GAUGE ASSY
    1. Remove the fuel sender gauge assy.
      Fig 2: Inspecting Fuel Sender Gauge Assy
      G02600301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check that the float position is between E and F.
    3. Measure the resistance between terminals 2 and 3 of the connector according to the value (s) in the table below.
      Fig 3: Identifying Fuel Sender Gauge Connector Terminals
      G02600302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      RESISTANCE CHECK

      Float level Float position mm (in.) Resistance (Ω)
      SF 50.4(1.98) --> 3(0.12) 13.5 to 16.5
      1 2 3.6(0.14) --> 3(0.12) 200 to 226
      SE 56.7(2.23) --> 3(0.12) 405.5 to 414.5
    1. NG: REPLACE FUEL SENDER GAUGE ASSY
    2. OK: GO TO NEXT STEP

      REPLACE COMBINATION METER ASSY (SEE  COMBINATION METER ASSY  )

  3. CHECK HARNESS AND CONNECTOR (BETWEEN FUEL SENDER GAUGE ASSY AND COMBINATION METER ASSY) (SEE  HOW TO PROCEED WITH TROUBLESHOOTING  )
    1. Disconnect the C9 and F10 connectors.
    2. Measure the resistance according to the value (s) in the table below.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester connection Condition Specified Condition
      C9-7 - F10-2 Always Below 1 Ω
      C9-22 - F10-3 Always Below 1 Ω

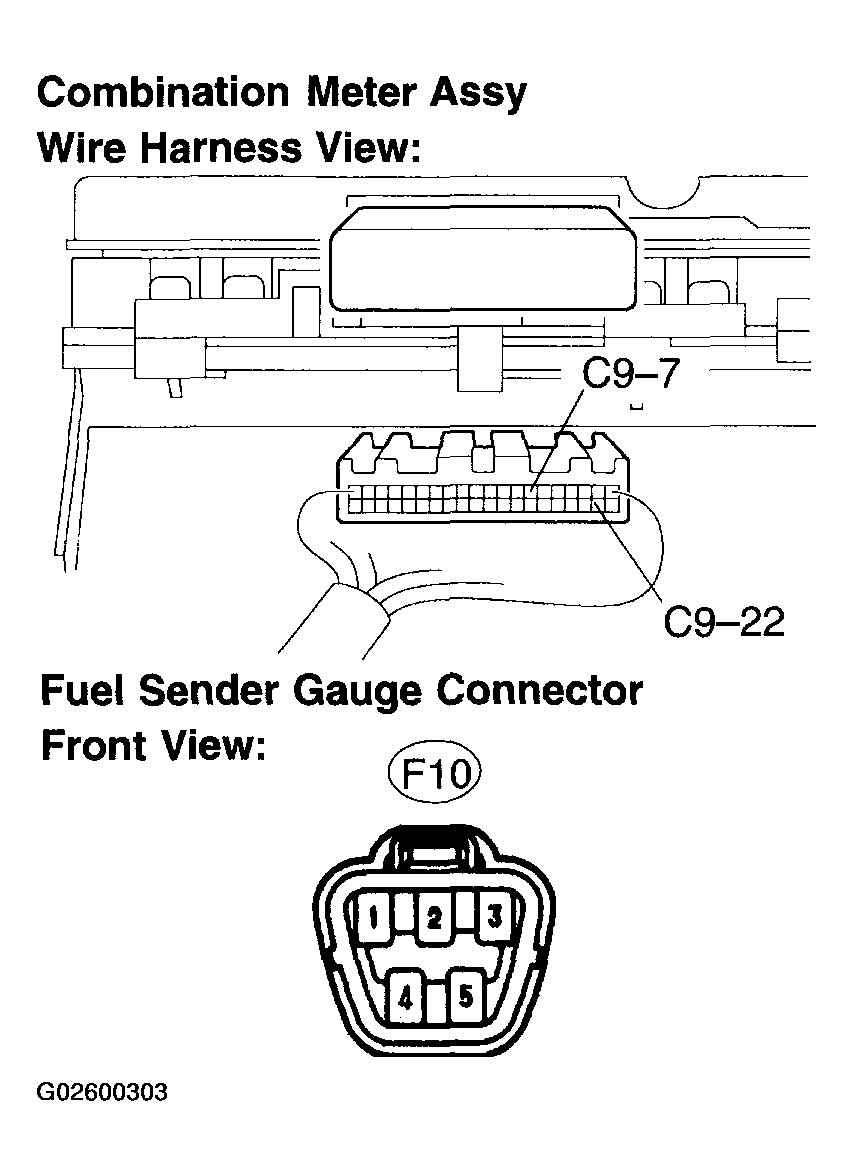

      Fig 4: Checking Harness And Connector (Between Fuel Sender Gauge Assy And Combination Meter Assy)
      G02600303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: GO TO NEXT STEP

      REPLACE COMBINATION METER ASSY (SEE  COMBINATION METER ASSY  )
