Instrument Panel Passenger Air Bag ASSY: Replacement

HINT:

COMPONENTS: See INSTRUMENT PANEL PASSENGER AIR BAG ASSY

1. PRECAUTION (See  SUPPLEMENTAL RESTRAINT SYSTEM  )
2. DISCONNECT BATTERY NEGATIVE TERMINAL (See  SUPPLEMENTAL RESTRAINT SYSTEM  )
3. REMOVE INSTRUMENT PANEL SUB-ASSY LOWER
   1. Remove the screw from the glove compartment door stopper sub-assy.
   2. Pull the instrument panel sub-assy lower to remove it.
   Fig 1: Removing Screw From Glove Compartment Door

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. SEPARATE PASSENGER AIRBAG CONNECTOR
   1. Separate the instrument panel passenger airbag assy connector.

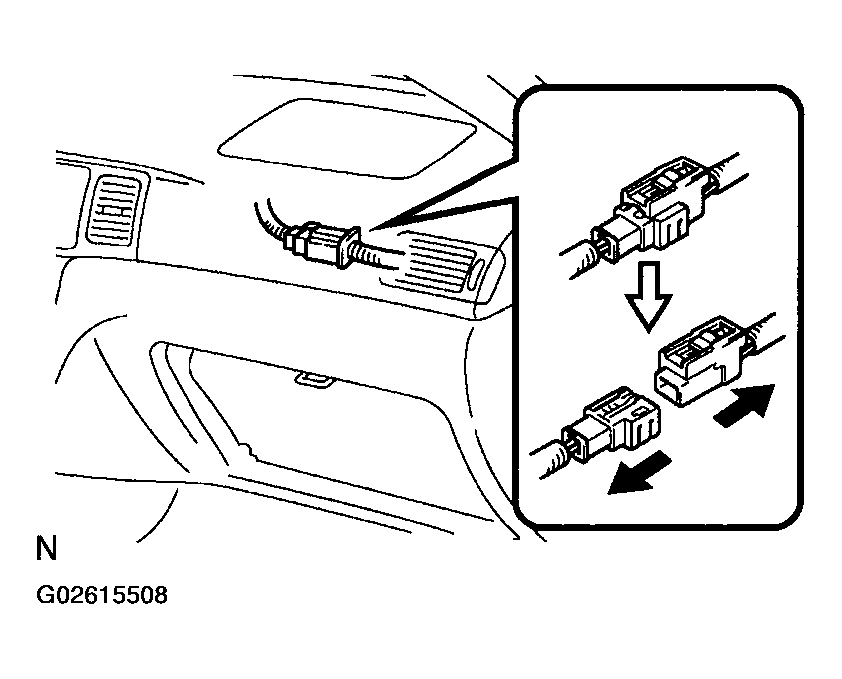

   Fig 2: Separating Instrument Panel Passenger Airbag

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE INSTRUMENT PANEL PASSENGER AIR BAG ASSY
   1. Remove the bolt.
   2. Remove the 2 nuts and instrument panel passenger airbag assy.
   Fig 3: Removing Instrument Panel Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSTALL INSTRUMENT PANEL PASSENGER AIR BAG ASSY

   Torque:

   Bolt: 20 N.m (204 kgf.cm, 15 ft.lbf)

7. INSPECT INSTRUMENT PANEL PASSENGER AIR BAG ASSY (See  ON-VEHICLE INSPECTION  )
8. INSPECT SRS WARNING LIGHT (See  DIAGNOSIS SYSTEM  )
