Air Bag Sensor Rear LH: Replacement

HINT:

Use the same procedures for the RH side and LH side.

1. PRECAUTION (see  SUPPLEMENTAL RESTRAINT SYSTEM  )
2. DISCONNECT BATTERY NEGATIVE TERMINAL
   CAUTION: After removing the terminal, wait for at least 90 seconds before starting the operation.
3. REMOVE REAR SEAT CUSHION ASSY (see  OVERHAUL  )
4. REMOVE REAR SEATBACK ASSY LH (SEPARATED TYPE REAR SEAT) (see  OVERHAUL  )
5. REMOVE REAR SEATBACK ASSY (FIXED TYPE REAR SEAT) (see  OVERHAUL  )
6. REMOVE AIR BAG SENSOR REAR LH
   1. Disconnect the connector from the airbag sensor rear LH.
   2. Remove the nut and the airbag sensor rear LH.

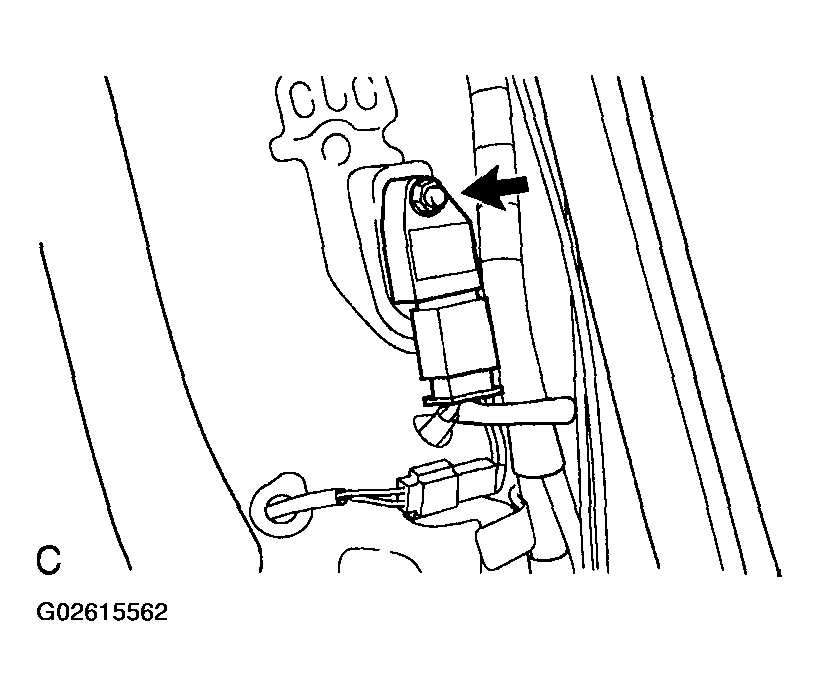

   Fig 1: Disconnecting Connector From Airbag Sensor Rear LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL AIR BAG SENSOR REAR LH
   1. Check that the ignition switch is off.
   2. Check that the battery negative (-) terminal is disconnected.
      CAUTION: After removing the terminal, wait for at least 90 seconds before starting the operation.
   3. Install the airbag sensor rear LH with the nut.

      Torque: 9.0 N.m (92 kgf.cm, 80 in..lbf)

      NOTE:

      • If the airbag sensor rear LH has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.
      • When installing the airbag sensor rear LH, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.
   4. Check that there is no looseness in the installation parts of the airbag sensor rear LH.
   5. Connect the connector to the airbag sensor rear LH.
8. INSTALL REAR SEATBACK ASSY (FIXED TYPE REAR SEAT) (see  OVERHAUL  )
9. INSTALL REAR SEATBACK ASSY LH (SEPARATED TYPE REAR SEAT) (see  OVERHAUL  )
10. INSTALL REAR SEAT CUSHION ASSY (see  OVERHAUL  )
11. CONNECT BATTERY NEGATIVE TERMINAL
12. INSPECT SRS WARNING LIGHT (SEE  DIAGNOSIS SYSTEM  )
