On-Vehicle Inspection

  1. REMOVE FRONT WHEEL
  2. DISCONNECT FRONT DISC BRAKE CALIPER ASSY LH (SEE FRONT DRIVE SHAFT (FROM JULY, 2003)  )
  3. REMOVE FRONT DISC
  4. INSPECT FRONT AXLE HUB BEARING BACKLASH
    1. Using a dial indicator, check the backlash near the center of the axle hub.

      Maximum: 0.05 mm (0.0020 in.)

    If the backlash exceeds the maximum, replace the bearing.

    NOTE: Ensure that the dial indicator is set at a right angle to the measurement surface.

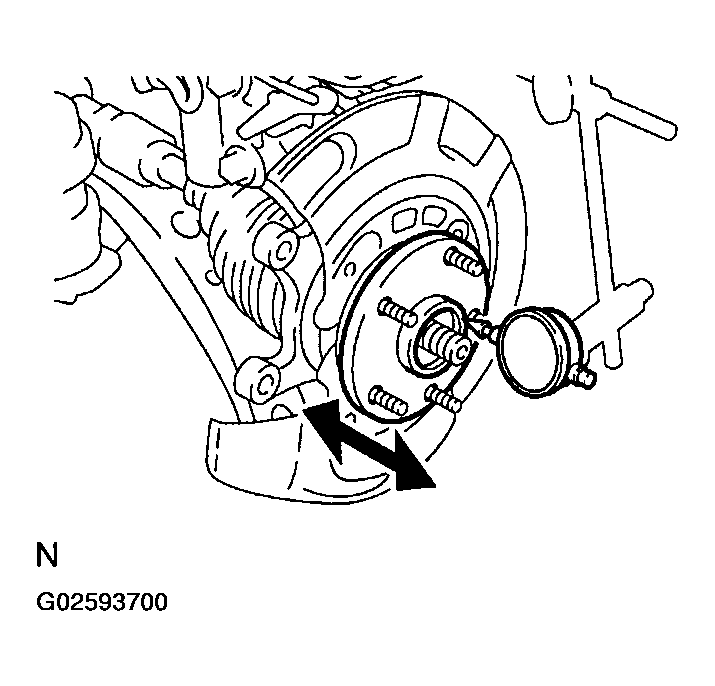

    Fig 1: Inspecting Front Axle Hub Bearing Backlash
    G02593700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSPECT FRONT AXLE HUB DEVIATION
    1. Using a dial indicator, check the deviation at the surface of the axle hub outside the hub bolt.

      Maximum: 0.05 mm (0.0020 in.)

    If the deviation exceeds the maximum, replace the axle hub.

    NOTE: Ensure that the dial indicator is set at a right angle to the measurement surface.

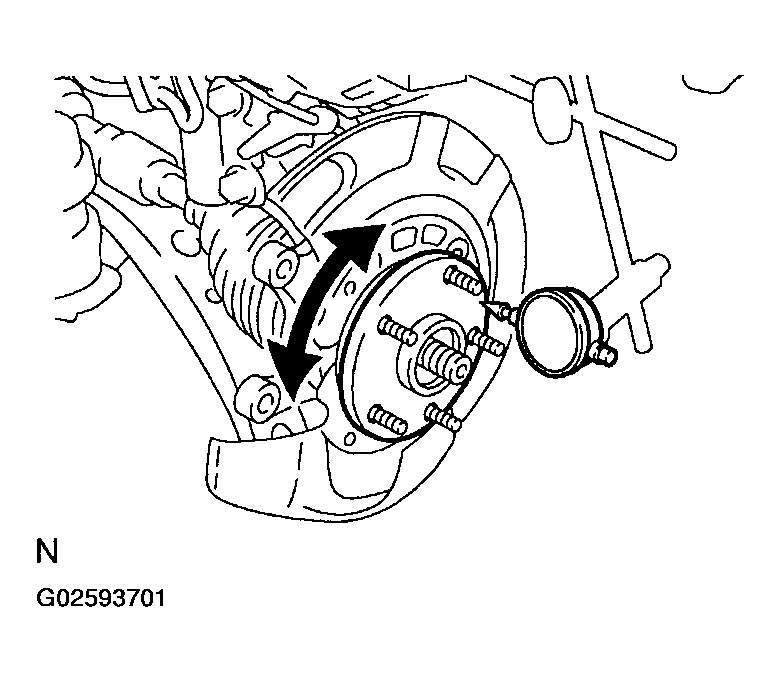

    Fig 2: Inspecting Front Axle Hub Deviation
    G02593701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FRONT DISC
  7. INSTALL FRONT DISC BRAKE CALIPER ASSY LH (SEE  FRONT DRIVE SHAFT (FROM JULY, 2003)   )
  8. INSTALL FRONT WHEEL

    Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

  9. REMOVE REAR WHEEL
  10. DISCONNECT REAR DISC BRAKE CALIPER ASSY LH (DISC REAR BRAKE TYPE) (SEE  REAR AXLE HUB & BEARING ASSY LH   )
  11. REMOVE REAR DISC (DISC REAR BRAKE TYPE)
  12. REMOVE REAR BRAKE DRUM SUB-ASSY (DRUM REAR BRAKE TYPE)
  13. INSPECT REAR AXLE HUB BEARING BACKLASH
    1. Set a dial indicator near the center of the axle hub and check the backlash in the bearing shaft direction.

      Maximum: 0.05 mm (0.0020 in.)

    If the backlash exceeds the maximum, replace the axle hub assembly.

    NOTE: Ensure that the dial indicator is set at a right angle to the measurement surface.

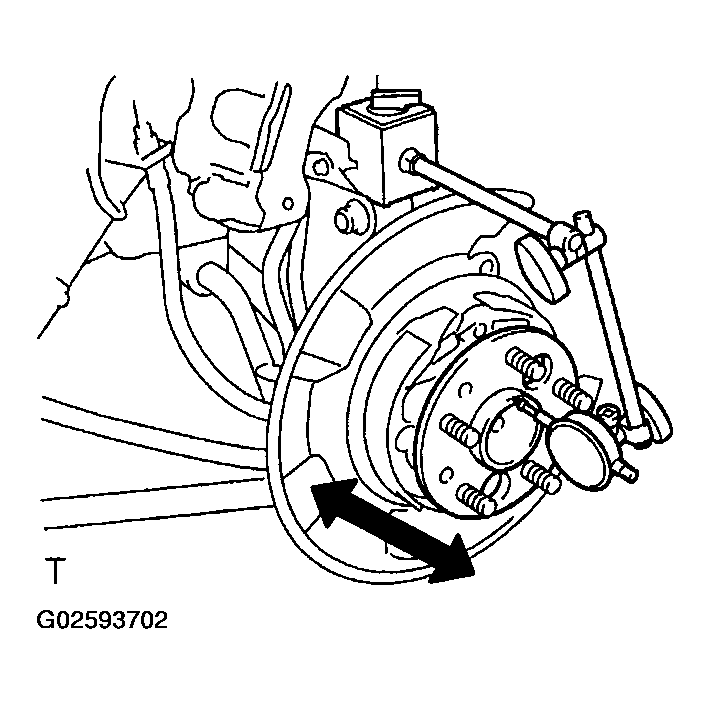

    Fig 3: Inspecting Rear Axle Hub Bearing Backlash
    G02593702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSPECT REAR AXLE HUB DEVIATION
    1. Using a dial indicator, check the deviation at the surface of the axle hub outside the hub bolt.

      Maximum: 0.07 mm (0.0027 in.)

    If the deviation exceeds the maximum, replace the axle hub assembly.

    NOTE: Ensure that the dial indicator is set at a right angle to the measurement surface.

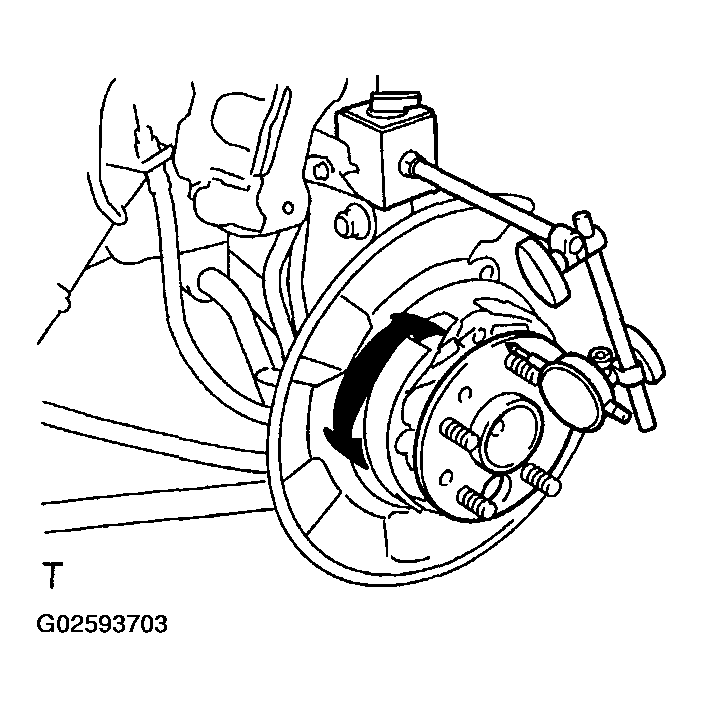

    Fig 4: Inspecting Rear Axle Hub Deviation
    G02593703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL REAR DISC (DISC REAR BRAKE TYPE)
  16. INSTALL REAR DISC BRAKE CALIPER ASSY LH (DISC REAR BRAKE TYPE) (SEE  REAR AXLE HUB & BEARING ASSY LH   )
  17. INSTALL REAR BRAKE DRUM SUB-ASSY (DRUM REAR BRAKE TYPE)
  18. INSTALL REAR WHEEL

    Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
