DRIVE SHAFT, PROPELLER SHAFT, AXLE (From July, 2003): Components

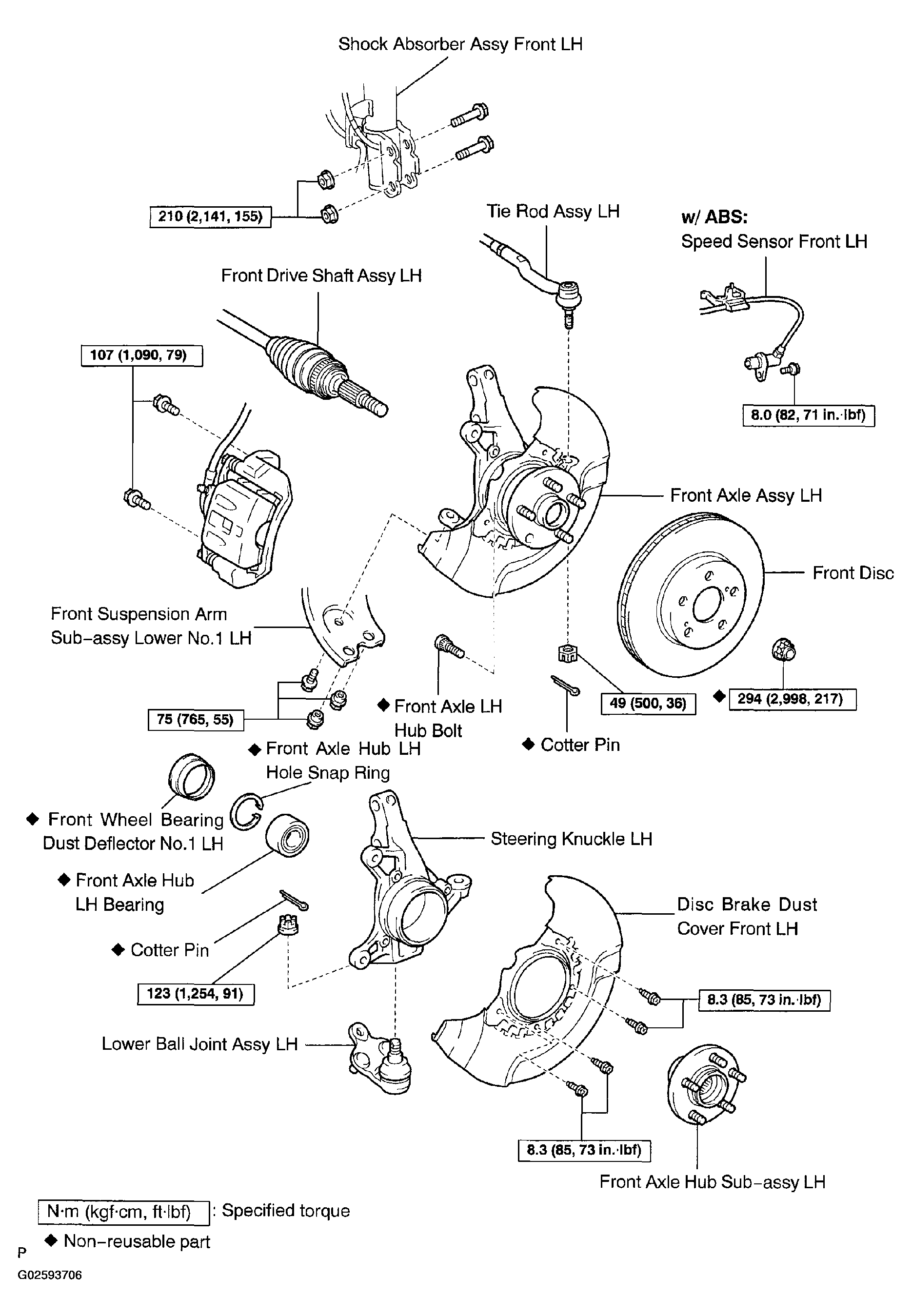

Fig 1: Exploded View Of Drive Shaft Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Exploded View Of Drive Shaft Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

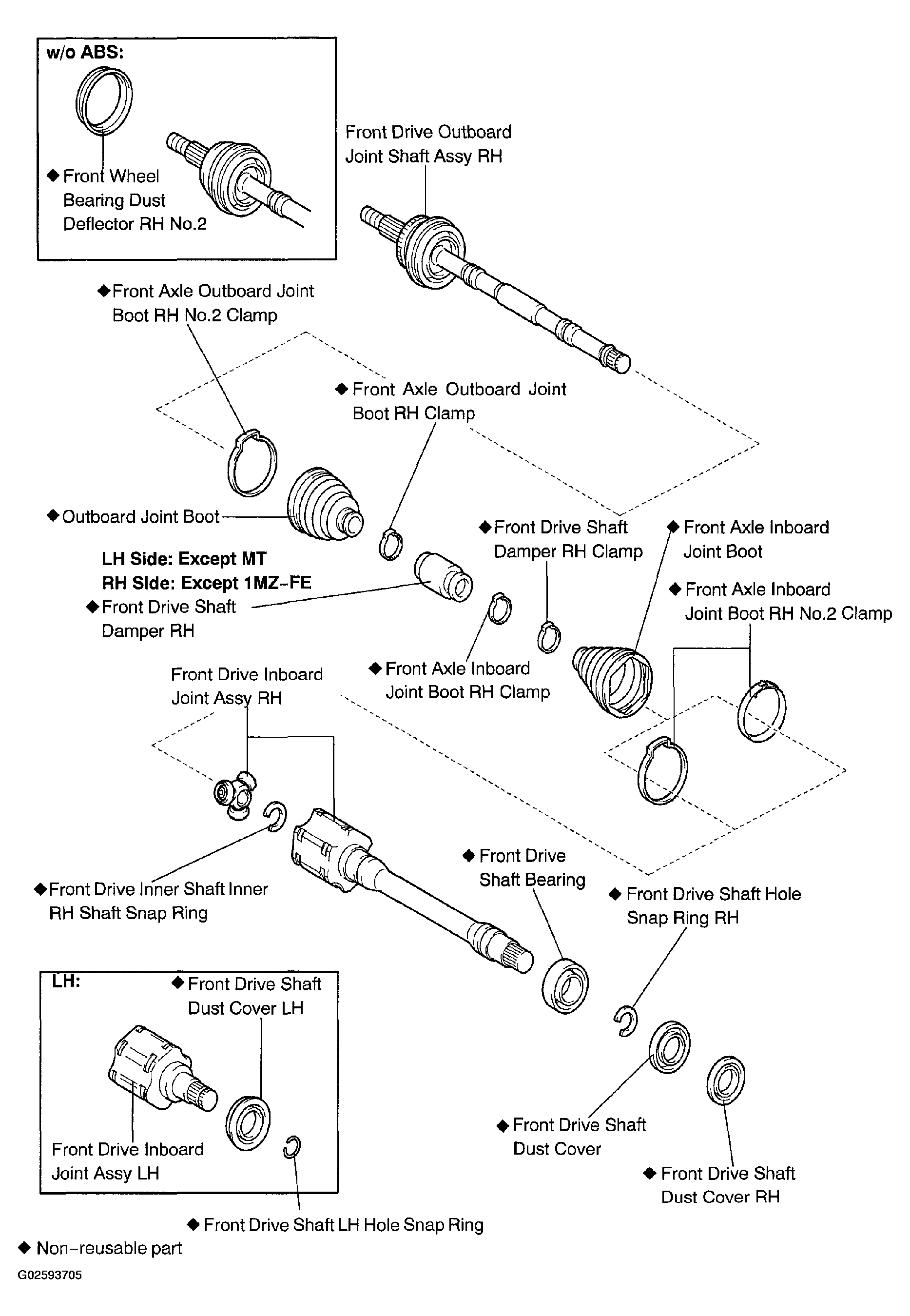

Fig 3: Exploded View Of Drive Shaft Components With Torque Specifications (3 Of 4)

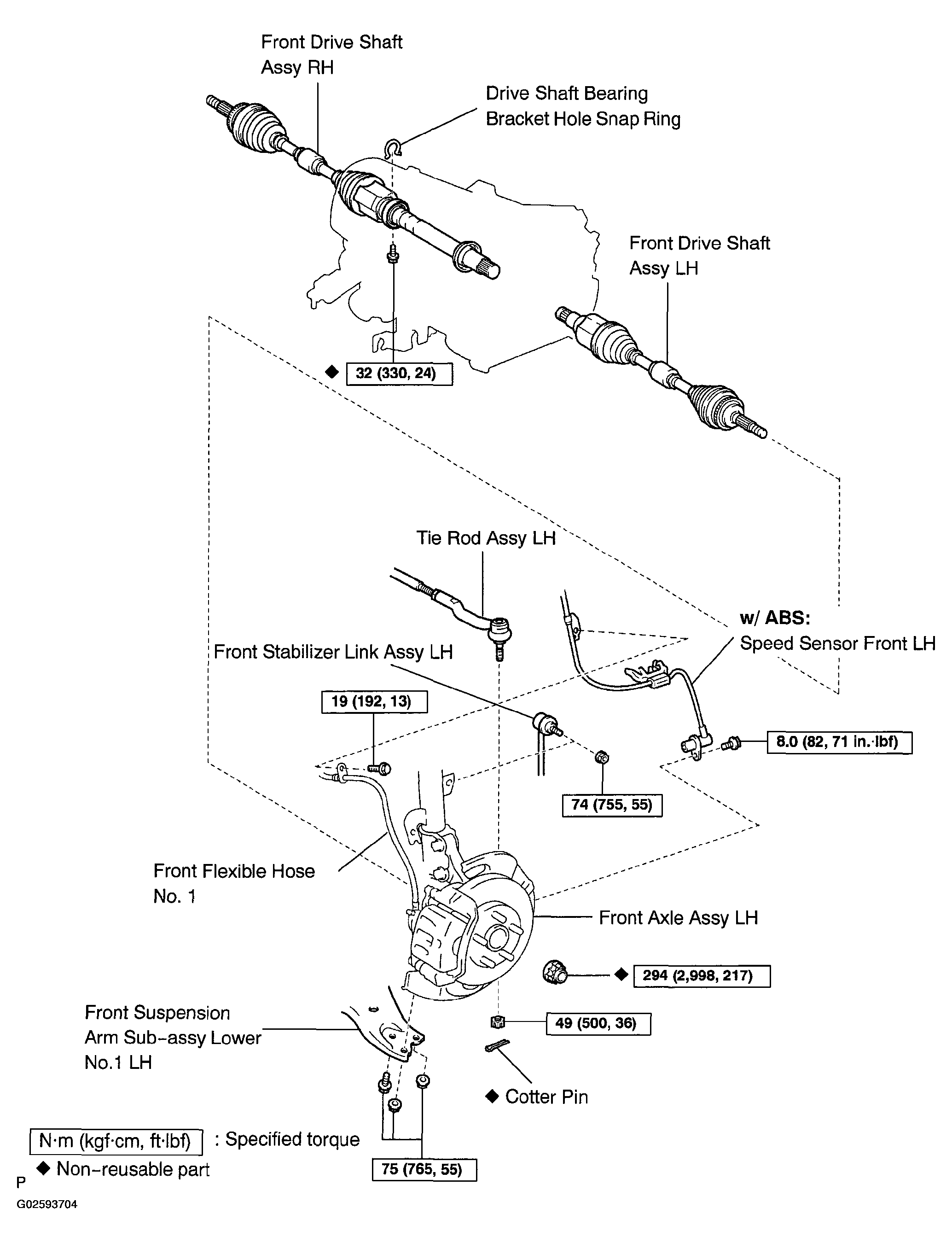

Fig 4: Exploded View Of Drive Shaft Components With Torque Specifications (4 Of 4)
