TRAC Off Indicator Light, TRAC Off Switch Circuit: Wiring Diagram

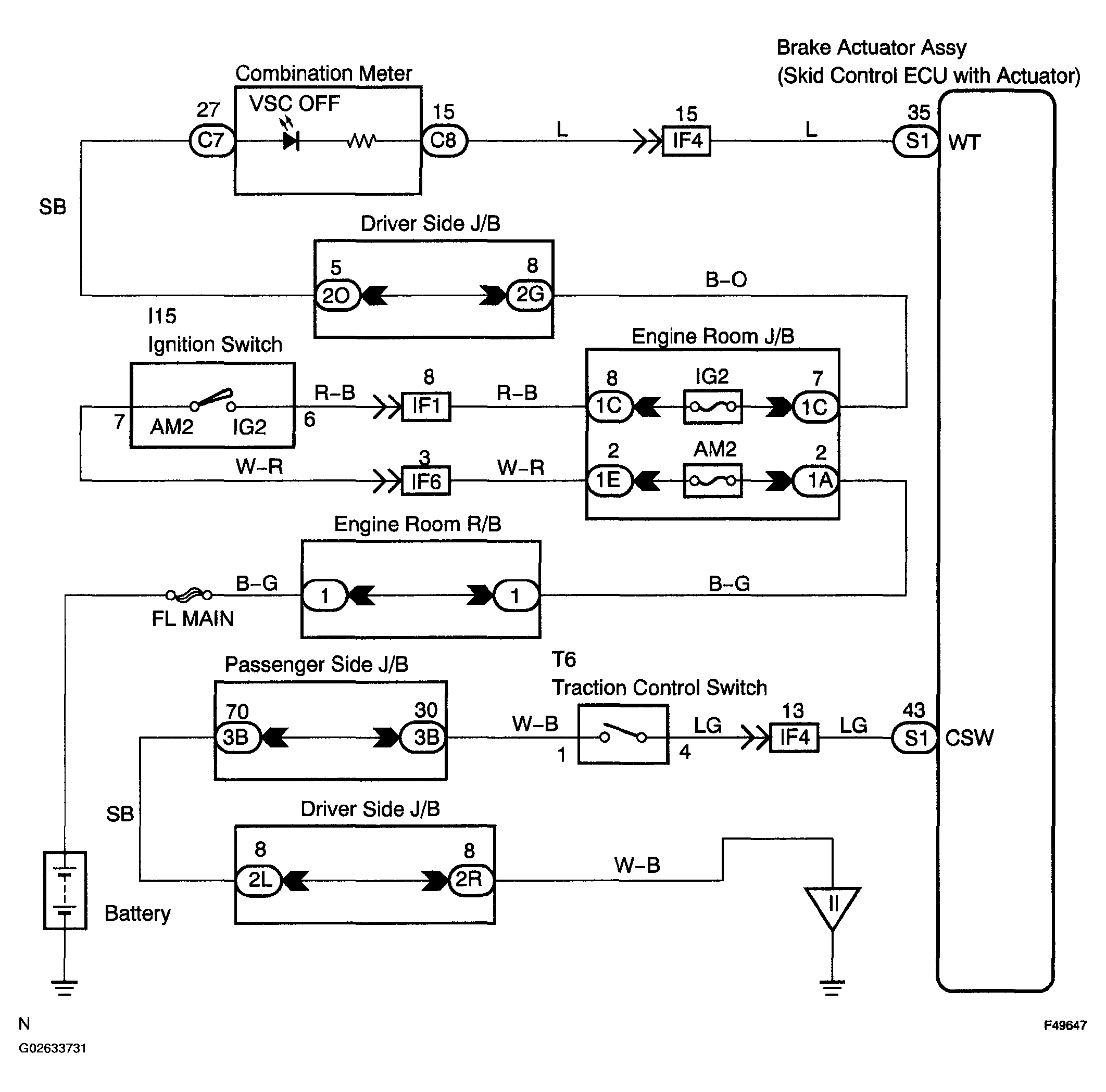

Fig 1: TRAC Off Indicator Light, TRAC Off Switch Circuit Wiring Diagram

G02633731

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
