Camry Base, Automatic
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brakes - Abs With EBD & BA & TRAC & VSC (Diagnostics)
>>
TC Terminal Circuit
>>
Wiring Diagram
TC Terminal Circuit: Wiring Diagram

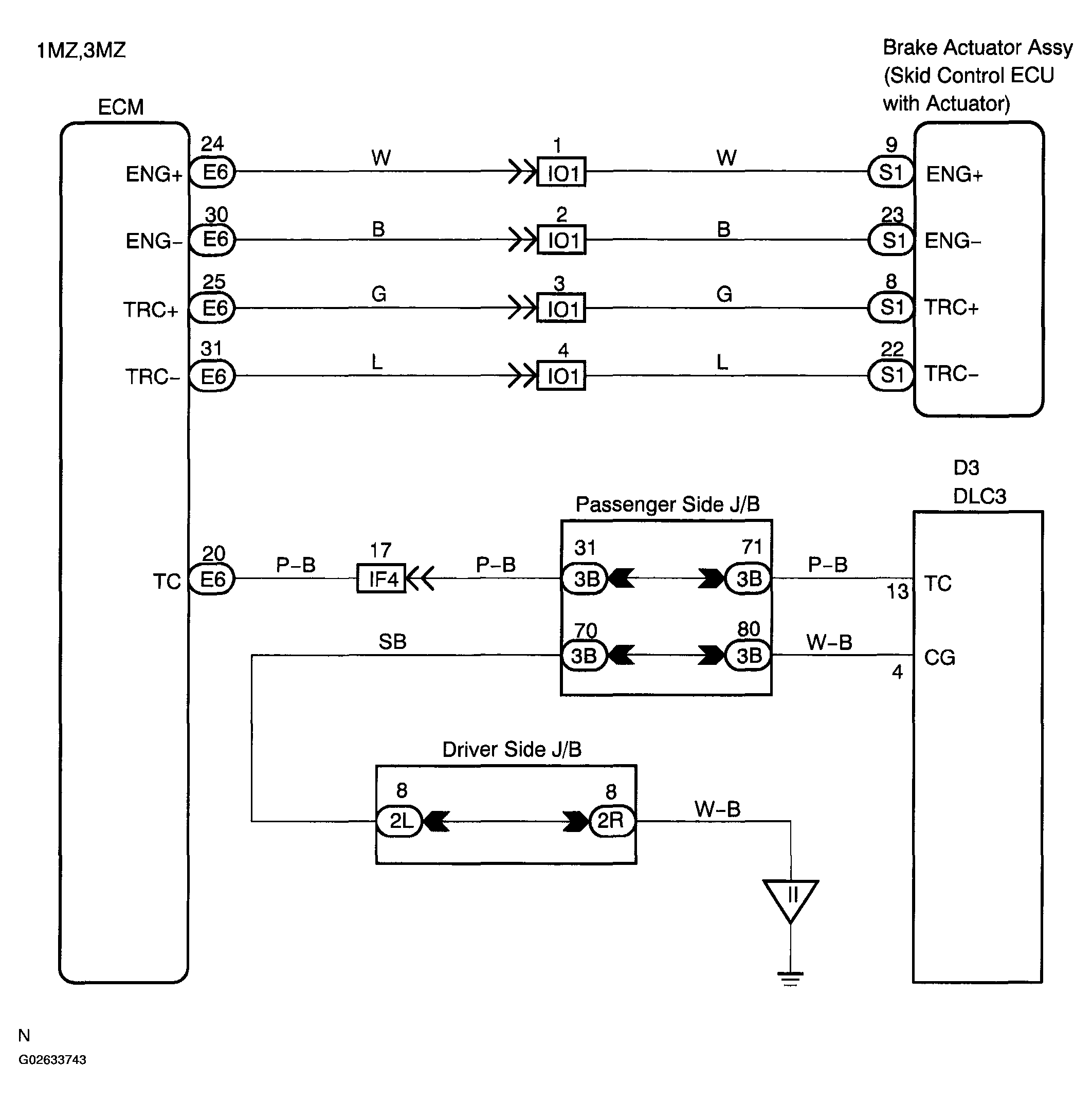

Fig 1: TC Terminal Circuit Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

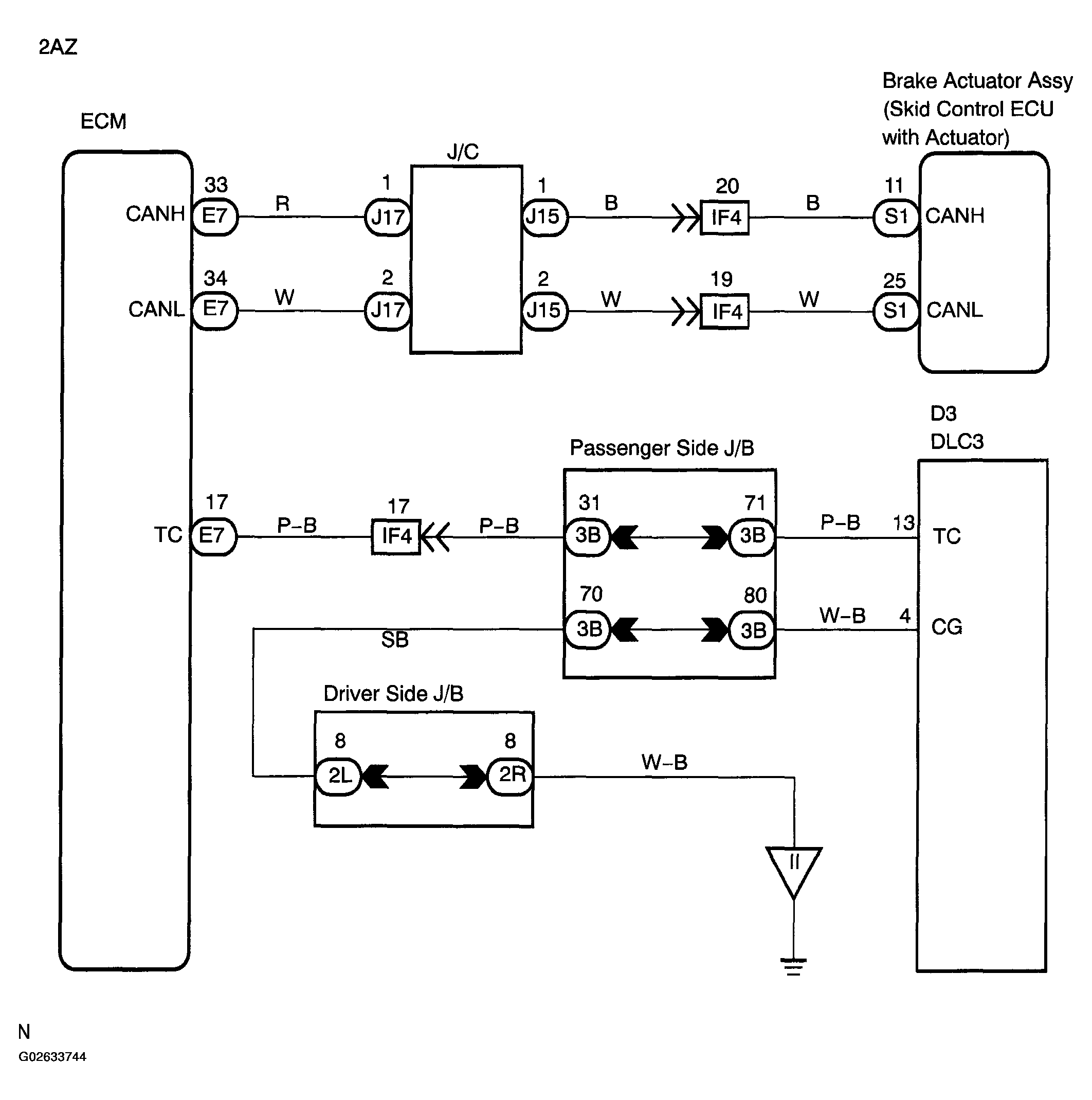

Fig 2: TC Terminal Circuit Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
